Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Specifications
connector line :
din41612 connector
No. of rows :
3 rows
connector type :
Straight pcb connector
PCB Mounting :
harpoon
gender :
Female Receptacle
Brand Name :
FUYCONN
Model Number :
FUYDIN108-396P
Certification :
UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Delivery Time :
7-10 days
Packaging Details :
Vacuum Tray + Carton
insulation color :
grey
no. of pin :
96pin connector
connector name :
eurocard connector
Description
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
Product Overview

96Pin 2.54mm pitch Vertical PCB 3 rows DIN 41612 Connector, PCB Straight 3*32 96P Female 396S DIN41612 Connector with harpoon

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin and 96pin.

Product Specifications
Parameter Specification
Product Line DIN41612 Connector
Product Name Eurocard connector
Connector Type PCB DIN 41612 Connector
Connector Gender Male
Number of Positions 64 pin
Number of Rows 2 rows
Contact Material Brass
Contact Plating 1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material PBT
Color Gray
Terminal Type Right Angled
Pitch 2.54mm or 5.08mm
Electrical Specifications
Parameter Specification
Current Rating 2Amp
Voltage Rating AC 1000V for minute
Insulator Resistance 1000 MΩ min. at DC500V
Contact Resistance 30mΩ max. at DC 100MA
Operation Temperature -55°C to +105°C

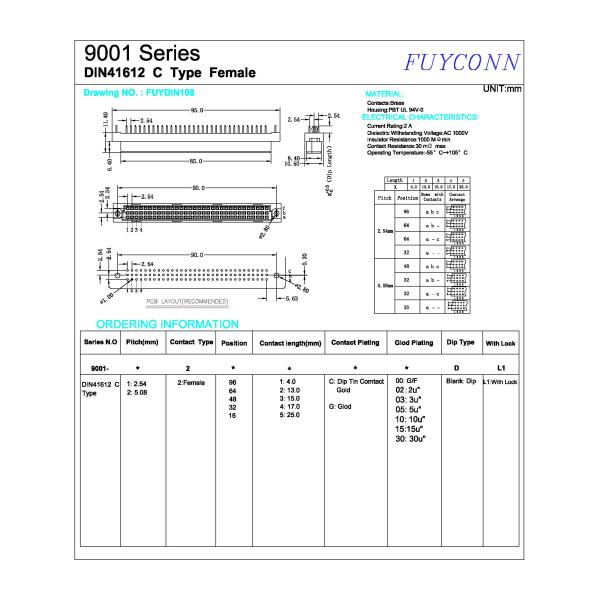

Technical Diagram
Female 396 DIN41612 Connector 96 Pin Straight PCB Eurocard Grey Color
