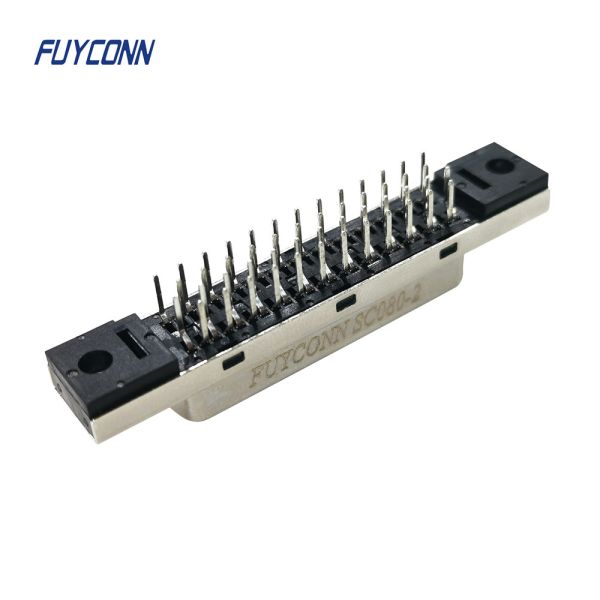

50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
Specifications
Brand Name :
FUYCONN
Model Number :
FUYSC080-2 (50P)
Certification :
ISO
Place of Origin :
China
MOQ :
100pcs
Price :
USD0.2-USD2/pc
Supply Ability :
100000/ week
Delivery Time :
5-8 works day
Packaging Details :
Vacuum Tray + Carton
Shell :
Metal Nickeled
Gender :
Female
Insulation Color :
Black
Payment Terms :
T/T,Paypal
Conatct :
Brass with Gold plating
Insulation Material :
PBT
Connector Type :
CN Type
Product Name :
SCSI PCB Connector
No. of Contacts :
50Pin
Description
50Pin PCB SCSI Connector 180 Degree PCB Mounting MDR Connector
Catalog: SCSI CONNECTOR.pdf

Mini D Ribbon 180 Straight PCB Mount SCSI Female 50P Servo MDR Connector, 1.27mm pitch Vertical PCB Female 50pin SCSI Connector.

SCSI 50 Pin PCB Straight Female Connector CN Type with 1.27mm pitch.

SCSI (Small Computer System Interface) is a specialized interface bus designed for communication with various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

Product Features
No. of pin 50pin
Shell Steel, Nickel Plated
Housing PBT
Contacts Phosphor bronze
Gold plating 1U", 3U", 5U", 10U", 15U", 30U"
Electrical Characteristics
Current Rating 1AMP
Withstanding Voltage 500v for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35MΩ Max
Operating temperature -55°C to +105°C
Technology Parameters
50Pin PCB SCSI Connector 180 Degree PCB Mounting Female MDR Connector 1.27mm Pitch
  • Type: SCSI Connector
  • Application: Servo
  • Gender: Female
  • Orientation: Straight
  • Insulator material: PBT
  • Contact Current Rating: 1A AC/DC
  • Contact Resistance: Max 35m ohm
  • Insulator: PBT, glass-filled, UL94V-0 rated
  • Contact: Phosphor bronze
  • Back shell: Nickel-plated
  • Insulation resistance: 500MΩ (minimum)
  • Contact resistance: 35mΩ (maximum)
  • No. of Pin: 50Pin
