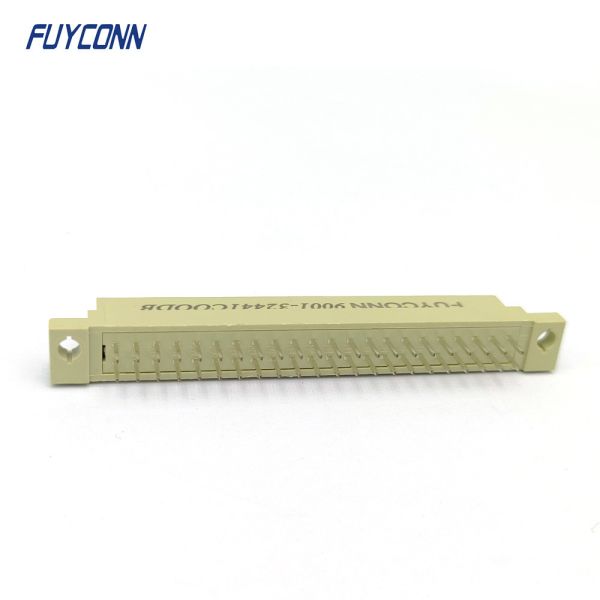

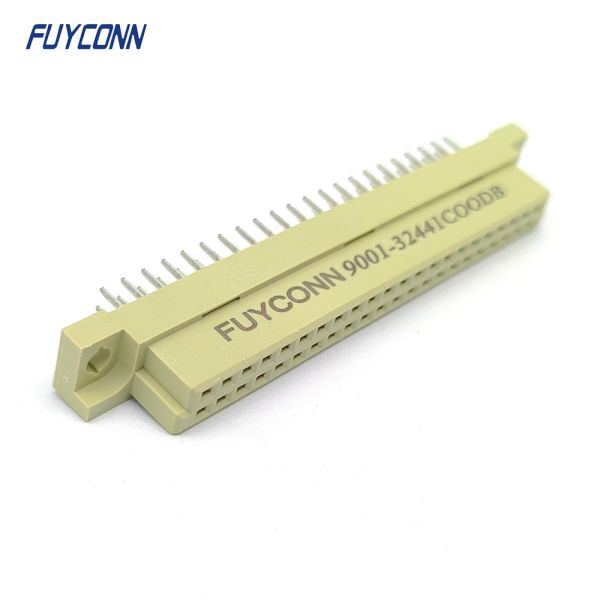

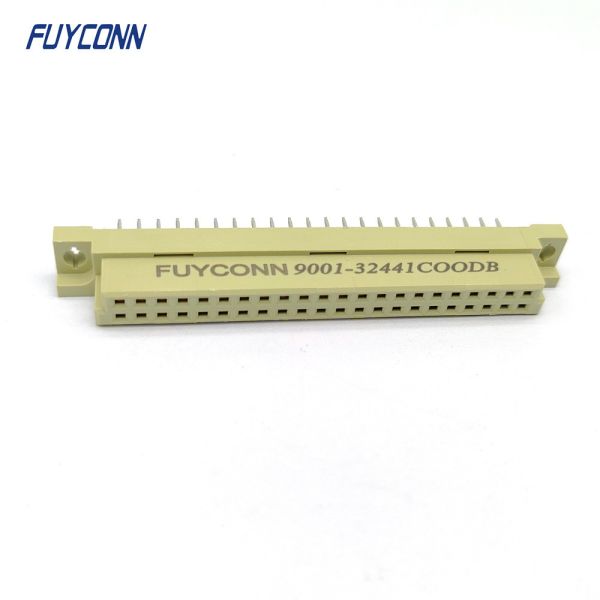

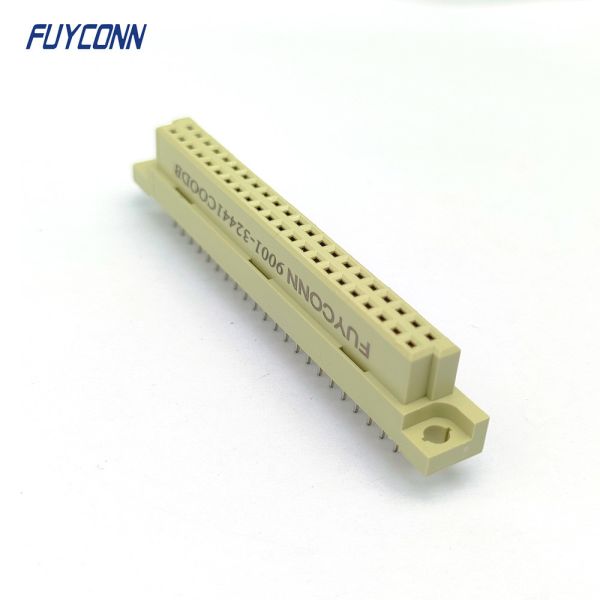

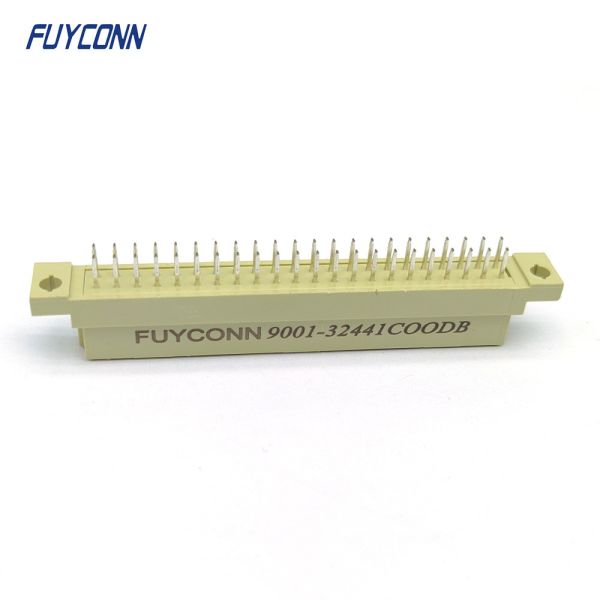

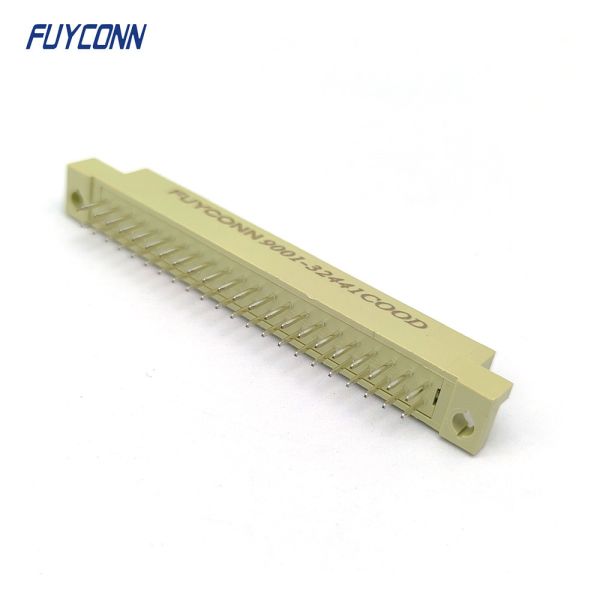

9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
Specifications
Payment Terms :
T/T,Paypal
Insulator Color & Material :
Grey & PBT
Number of Terminal :
2*22P 44pin
Gender :
Female
Contact pin Material :
Phosphor Bronze
Pitch :
2.54mm
Product Line :
Eurocard Connector
Product Category :
DIN41612 Connector
Number of Rows :
2 rows
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Brand Name :
FUYCONN
Model Number :
FUYDIN171-244S
Place of Origin :
China
MOQ :
10
Price :
USD0.6-USD2
Supply Ability :
100000000/month
Delivery Time :
1-4 weeks
Packaging Details :
Tray + Carton
Connector Type :
PCB Type
Terminals Type :
Straight / Vertical
Description
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
Product Overview

9001 series Connector PCB Vertical 2row Female 2*22pin 44Pin DIN41612 Connector

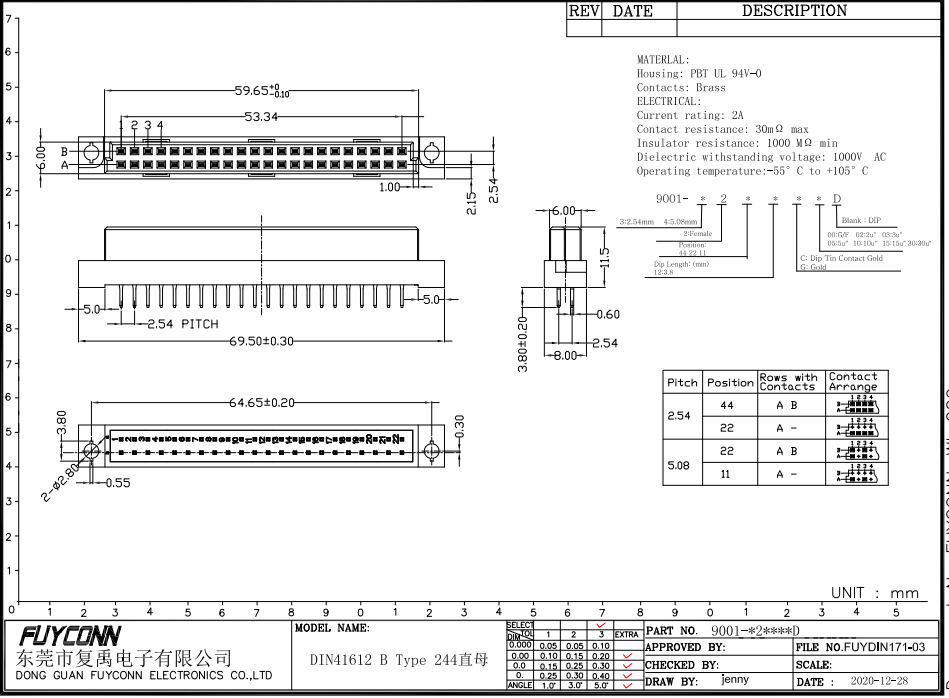

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VME bus system.

The DIN 41612 standard has been widely accepted for various interconnection applications in telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Multiple pin configurations including 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin are available.

Product Features
Product Line: DIN41612 Connector
Product Name: Eurocard connector
Connector Type: PCB DIN 41612 Connector
Connector Gender: Female
Number of Position: 2*22 44pin
Number of rows: 2 rows
Contact Material: Brass
Contact Plating: 1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material: PBT
Color: Gray
Terminal Type: Straight
Pitch: 2.54mm
Electrical Specifications
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN. (at 500V DC)
Operation Temperature: -55°C to +105°C
9001 Series DIN41612 Connector PCB Vertical 2row Female 2*22pin 44Pin
Application Information

The Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
