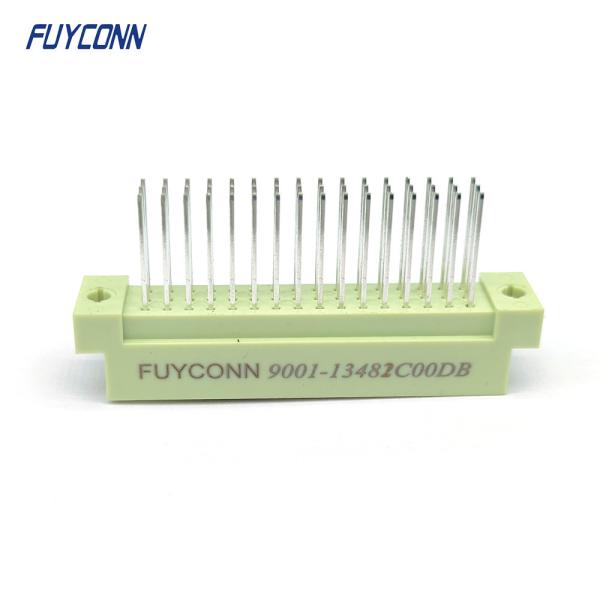

Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Specifications
Terminals Type :
Vertical / Straight
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Terminals Length :
4mm/13mm/15mm/17mm/25mm
Insulator Color & Material :
Grey & PBT
Product Line :
Eurocard Connector
Product Category :
DIN41612 Connector
Brand Name :
FUYCONN
Model Number :
FUYDIN78-48DB
Place of Origin :
China
MOQ :
10pcs
Price :
USD0.5-USD2
Payment Terms :
T/T,Paypal
Supply Ability :
100000000/month
Delivery Time :
1-4 weeks
Packaging Details :
Tray + Carton
Connector Type :
PCB Straight Type
Number of Terminal :
3*16 48pin
Number of Rows :
3 rows
Pitch :
2.54mm
Contact pin Material :
Phosphor Bronze
Gender :
Male
Description
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Product Overview

Straight PCB 3 rows 48P DIN 41612 male 13mm Eurocard Connector, 2.54mm Pitch 3*16pin 48pin DIN41612 connector with 13mm terminals.

Download DIN 41612 Specification PDF

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers need to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin.

Product Features
Product Line: DIN41612 Connector
Product Name: Eurocard connector
Connector Type: PCB DIN 41612 Connector
Connector Gender: Male
Number of Position: 3*32P 96pin
Number of rows: 3 rows
Contact Material: Brass
Contact Plating: 1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material: PBT
Color: Gray
Terminal Type: Vertical
Pitch: 2.54mm
Electrical Specifications
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN. (at 500V DC)
Operation Temperature: -55°C to +105°C
Straight PCB 48 Pin Male DIN 41612 Connector 13mm 41612 Connector
Application Information

The Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it's easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
