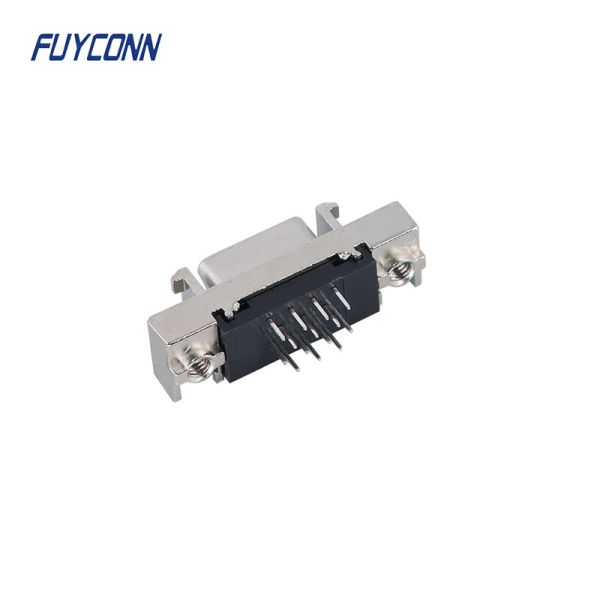

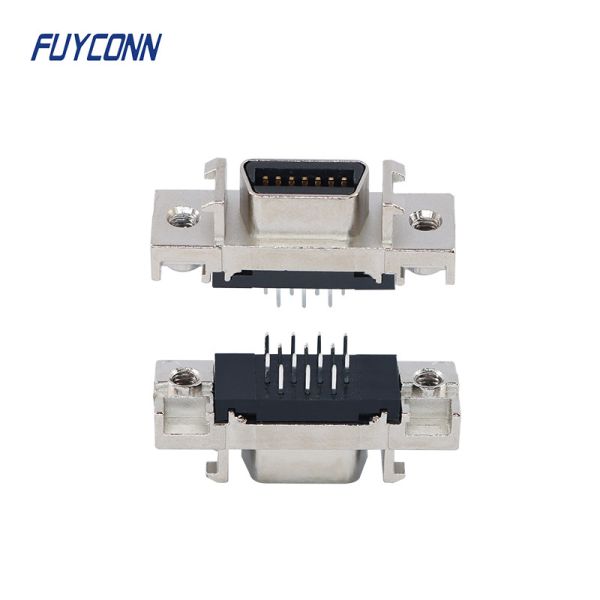

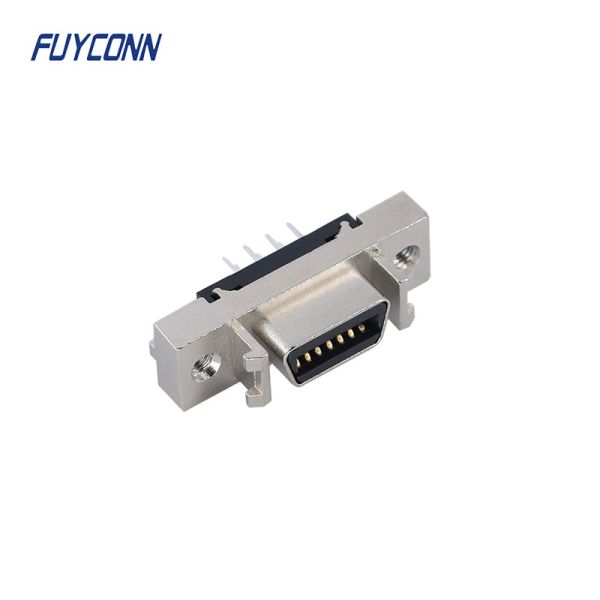

14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
Specifications
Payment Terms :
T/T,Paypal
Pitch :
1.27mm
Insulation Material :
PBT
Connector Type :
CN Type
Brand Name :
FUYCONN
Model Number :
FUYSC126 (14P)
Place of Origin :
China
MOQ :
100pcs
Price :
USD0.5-USD2/pc
Supply Ability :
100000/ week
Delivery Time :
5-8 works day
Packaging Details :
Vacuum Tray + Carton
Insulation Color :
Black
Contact Plating :
Gold plating (1u",3u",5u",10u",15u")
Product Name :
SCSI PCB Connector
Conatct Material :
Phosphorous Bronze
No. of Contacts :
14pin
PCB Mount :
Straight
Gender :
Female
Shell :
Zinc Alloy
Description
14pin Female Servo Connector, MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
Product Overview

SCSI 14pin Female Servo Connector, 1.27mm Pitch Mini D Ribbon MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell

Download SCSI CONNECTOR Catalog

SCSI (Small Computer System Interface) is a specialized interface bus designed for communication with various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

SCSI Connectors are available in 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin configurations, with both PCB and IDC crimping type versions. The internal 100 pin SCSI connector features 100 pins arranged in two rows, with 50 pins in the top row and 50 pins in the lower row.

14pin Female Servo Connector , MDR PCB Straight SCSI Connector W/ Zinc Alloy Shell
Technical Specifications
Type SCSI Connector
Application Servo
Gender Female
Orientation Right Angle
Insulator Material PBT
Contact Current Rating 1A AC/DC
Contact Resistance Max 35m ohm
Insulator PBT, glass-filled, UL94V-0 rated
Contact Material Phosphor bronze
Back Shell Nickel-plated
Insulation Resistance 500MΩ (minimum)
Contact Resistance 35mΩ (maximum)
Number of Pins 14pin
Electrical Characteristics
Parameter Specification
Current Rating 1AMP
Withstanding Voltage 500V for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35mΩ Max
Operating Temperature -55°C to +105°C
Product Features
Number of Pins 14pin
Shell Steel, Nickel Plated
Housing PBT
Contacts Phosphor bronze
Gold Plating Options 1U", 3U", 5U", 10U", 15U", 30U"
