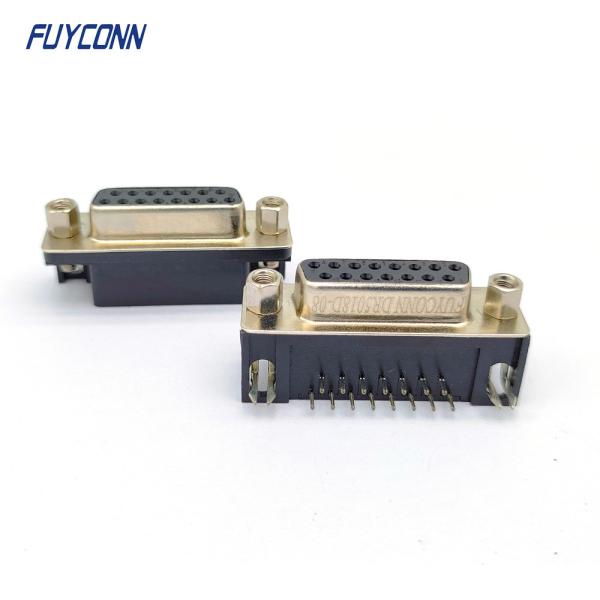

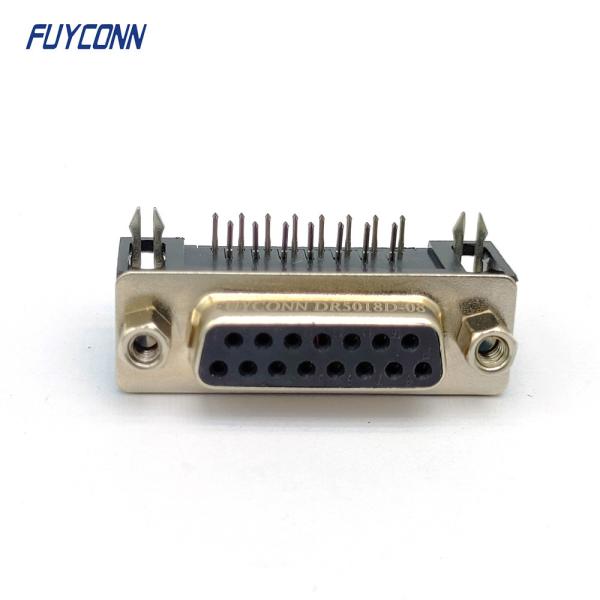

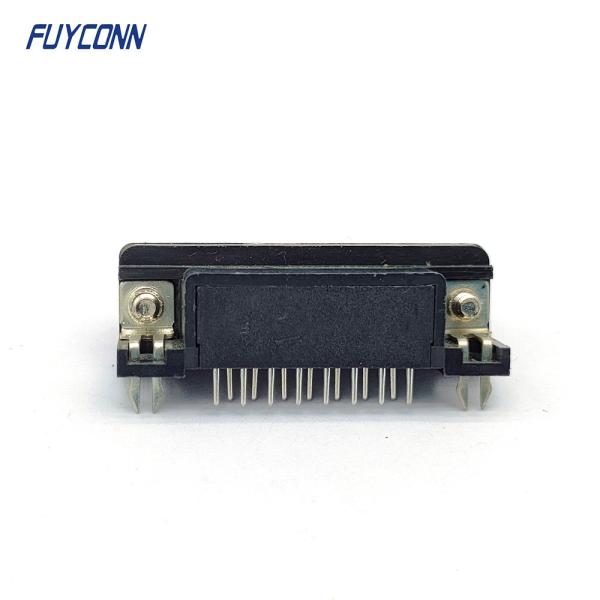

15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
Specifications
Gender :
Female
Distance from Terminal to Shell :
8.08mm
Insulation Material :
PBT
Type :
Right Angle PCB Connector
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUYDR5018D-15P
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Product Name :
D-sub Connectors
Contact Mateial :
Brass
Number of Terminal :
15 pin
Description
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
Product Overview

8.08mm distance 9pin 15pin 25pin 37Pin Female DB Connector, 9 15 25 37 pos Right Angle PCB D-SUB Female Connector with Screws

D-type connectors most commonly consist of two and sometimes more parallel rows of connections. The connectors have a D-format metal shell that provides mechanical strength and limited screening - the metal shells of the plug and socket make contact to provide screening. Panel mounting connectors are typically secured to the panel using nuts that have an additional thread allowing the mating connector to be secured to prevent loosening. Free connectors can have backshells that provide screening and connect to the cable screen, or if plastic, provide protection and strain relief.

The pins in common connector types with two rows of pins (9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with rows spaced 0.112 inch (2.84 mm) apart. Higher pin counts and densities are achieved using more rows of pins.

Product Specifications
Product Name: D-SUB Connector
Product Line: PCB D-SUB Connector
No. of Pins: 9pin, 15pin, 25pin, 37pin
Material: PBT
Contact Type: Right Angle
Gender: Female
Technology Parameters
15P Right Angle D-sub Connectors Receptacle Female PCB Connector (8.08mm)
Applications
  • The D-type connector has been used in many applications as a multi-way connector, but is most widely known as the connector used for RS-232 serial links
  • D-type connectors were used for serial links on most computers for many years, and variations are still found on most computers today
  • D-sub or D-subminiature connectors are common electrical components typically used in computing to help form connections on circuit boards
