Laboratory Cell Smear Centrifuge 4000r/min Maximum speed 18kg Net weight TD4-TP
Laboratory Cell Smear Centrifuge 4000r/min Maximum speed 18kg Net weight TD4-TP
Specifications
Brand Name :
xiangrui
Model Number :
TD4-TP
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
50 sets/month
Delivery Time :
5-8 work days
Maximum speed :
4000r/min
Maximum relative centrifugal force :
1280xg
Rotor capacity :
12 x2ml
Power supply :
AC220V 50Hz 5A
Overall dimensions (LxWxH) :
350mmx400mmx270mm
Net weight :
18kg
Description

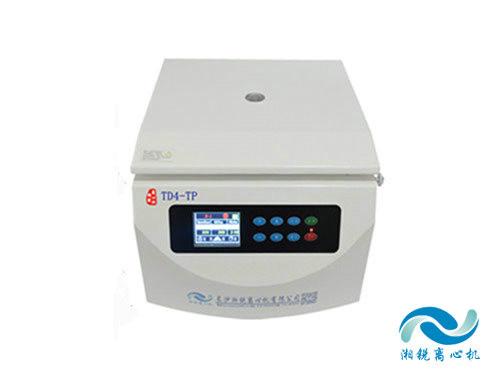

Cell Smear Special Centrifuge TD4-TP

Main technical performance
Microcomputer control, brushless DC motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
Digital screen display, humanized interface, simple and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with electronic door locks, with various protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
Application areas
TD4-TP cell smear centrifuge is widely used in immunohematology laboratories, laboratories, and research laboratories. It can perform red blood cell serology experiments, identify antigens and antibodies, and obtain Coomb's test results, etc. It is an ideal choice for comparison hospitals. Essential equipment for blood banks, laboratories, blood stations, medical schools and research institutions.

The main technical parameters

Model TD4-TP
Maximum speed 4000r/min
Maximum relative centrifugal force 1280xg
Rotor capacity 12 x2ml
Speed accuracy ± 20r/min
Time setting range 1min~999min
Overall machine noise <50dB(A)
Power supply AC220V 50Hz 5A
Overall dimensions (LxWxH) 350mmx400mmx270mm
Net weight 18kg

Adapt rotor parameters

Rotor number Rotor capacity Maximum speed Maximum relative centrifugal force
No. 1 right-angle rotor 6x0.5ml 4000r/min 1180xg
No. 2 right-angle rotor 12x2ml 4000r/min 1180xg
No. 3 right-angle rotor 6x0.5ml 4000r/min 1180xg
