With the gradual increasing in people's living, the dairy and beverage consumer market also continues to expand, as a result the people's attitudes of consumer also increase strongly from "drink milk" to "drink good milk". So the advanced equipments are very imprtant in the production process.
The centrifugal separator from Juneng has the special design for the centripetal pump and inlet/outlet port will create a soft separation environment for the material to ensure the active ingredient in the material is not destrooyed and made the nutritional value and freshness as well as original flavor keep well.
Milk cream separator is mainly used in milk processing industry, continually separate out cream and defatted milk from pure milk, at the same time remove the impurities and sediments, and it also can realize milk standardization according to fat content.
Junen Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.
Separator Model list :
DHN model is applied to dairy clarification | |||||||||
Model | Capacity L/H | Inlet Pressure | Outlet pressure | Weight | Dimension mm | ||||
DHN360 | 2000-5000 | 0.05 Mpa | 0.1-0.35 Mpa | 1200 kg | 1530*1150*1500 | ||||
DHN470 | 5000-10000 | 0.05 Mpa | 0.1-0.4 Mpa | 1600 kg | 1800*1200*1750 | ||||
DHN550 | 10000-20000 | 0.05 Mpa | 0.1-0.4 Mpa | 2300 kg | 1950*1550*1960 | ||||
DHN616 | 25000-35000 | 0.1 Mpa | 0.3 Mpa | 3000 kg | 2185*1728*2082 | ||||
DHNZ model is applied to dairy skimming | ||||||||
Model | Capacity L/H | Inlet pressure | Outlet pressure | Weight | Dimension | |||
DHNZ204 | 500-1000 | 0.05 Mpa | 0.1-0.2 Mpa | 520 kg | 810*850*1350 | |||
DHNZ360 | 1000-3000 | 0.05 Mpa | 0.1-0.2Mpa | 1200 kg | 1530*1150*1500 | |||
DHNZ470 | 3000-7000 | 0.05 Mpa | 0.1-0.2 Mpa | 1600 kg | 1800*1200*2030 | |||
DHNZ550 | 5000-10000 | 0.05 Mpa | 0.1-0.2Mpa | 2300 kg | 1950*1550*1960 | |||
The disc separator is specially used for the two-phase and three-phase separation.
The two-phase separation is to separate the s uspended solid from liquid or s eparate two liquids which have the different specific gravity and are immiscible.

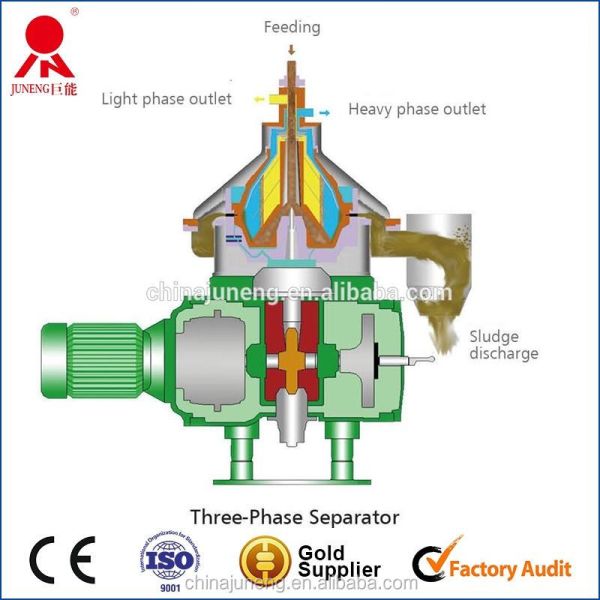

The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .

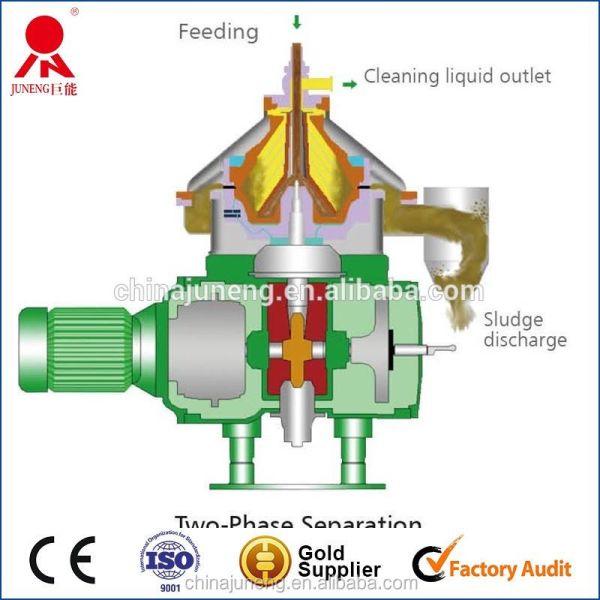

Clarification mean two phase separation. The materials are feeding into the heart parts of this machine, the inside of the bowl.
Under the action of strong centrifugal force, the impurity will be removed from the raw material then get the clean milk.
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. CIP
5. Hydraulic coupling driving with longer service lift
6. PLC system automatic control
7. Good milk skimming performance
8. High efficiency
9. Lower engergy consumption
10. Soft feeding or discharging of the inelet and outlet
1. Hot milk separation
2. Cold milk separation
3. Whey protein separation
4. Buttermilk separation
5. Dairy whey clarification
6. Disinfection of dairy products
7. Casein
8 . Syrup clarification
9. Vegetable juice clarification
10 Tea drinks, coffee, Beer and other liquid clarification
ll parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.
The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.
Material | Super stainless steel |
Function | Running in High speed |
Assembly | Precision assembly |
Speed | 5000-12000 RPM |
The separator is equipped with an automatic control cabinet. It consist of an industrial computer and auto overload protector, is highly automated, highly adaptive to change in process, easy to adjust, can greatly reduce the operation labor of workers.
Our company has set-up a first class laboratory for Chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographinc inspection, magnetism inspecion, ultra-sonic inspection and etc. This is to imply with the latest adva nce instrumentationss and rigorous working attitude to ensure every part of product is stable and reliable.
Packaging | ||
Size | 1800(L)* 1800(W) *1800(H) be different because of different model | |
Weight | 1000kg-3000kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Over the years, Junegn is focusing on international collaboration in technical aspect and commercial in order to learn better on the advance management system and experience from relevant experts of the United State of America, Canada, Germany, Russia and South-East Asia countries. The Company always believe that, one day, Juneng can becomes a Giant in the industry in China and also in worldwide.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our honors
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I haven ' t done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.
6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
