Specifications
Place of Origin :
Jiangsu, China
product type :
Edible oil
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Motor, Pressure Vessel
Brand Name :
Juneng
voltage :
220V
power(w) :
4000
warranty :
1 Year
key selling points :
Famous brand PLC
Capacity :
401-500l/h, 20-300 Ton per day
Weight (KG) :
520
setting speed :
4000 RPM
Name :
centrifuge
Item :
Plant Oil Separator
Function :
oil water separation
Operation :
Automatic Continuous Operation
Machine type :
Oil Clarifier Disc Separator
Bearing :
SKF Bearing
After-sales Service Provided :
Free spare parts
After Warranty Service :
Spare parts
Certification :
CE
MOQ :
1 unit
Price :
$22,800-23,000 / unit
Description
Product Description

Product Application

OIL centrifuge disc separator is one of gravity separation equipment. This machine has the features such as compact, high-efficiency separation smooth and steady in running, sealed material, reliable performance, and etc.


It can realize full-automatic control and be widely used in the process of liquid-liquid separation, solid-solid separation, clarifying , concentraction, and etc.


This machine products are widely used in degum, de-soap and water washing in vegetable oil refinery. It can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-soild separation of ligh industry, chemical industry, medicine and food industry.

SPECIFICATIONS FOR Self cleaning solid bowl oil disc liquid centrifuge separator


Treatment capacity
10-60
TPD
DHZ360
60-160
TPD
DHZ470
160-250
TPD
DHZ500
250-350
TPD
DHZ550E

Main function

Vegetable oil:
Colza Oil, Cottonseed oil, Corn oil, Palm oil , soybean oil, peanut oil, Rice oil, sesame oil, sunfloweroil and so one

Animal oil: Fish oil, or other animal fat .

Vfd Small Capacity Solid Liquid Separator Machine

Vegetable oil refinery factory

Vfd Small Capacity Solid Liquid Separator Machine

Oil extraction factory

Vfd Small Capacity Solid Liquid Separator Machine
Vfd Small Capacity Solid Liquid Separator Machine
Vfd Small Capacity Solid Liquid Separator Machine

Main Features

1) Easy in installation and maintation.

2) Full-automatic vibration detector can monitor the vibration strength value of the centripetal pump at any time.

3) Include automatically alarm

4) With PLC control and LED touch screen

5) Heavy -phase centripetal pump adopts European advanced electric positioner control

6) Running in high speed, operating stability,low noise

7) Stability outlet pressure, large regulating sphere and operating easily.

8) Self-discharging , self-cleaning

Vfd Small Capacity Solid Liquid Separator Machine
Working principle

The disc separator or centrifuge is specially used for the 2 phase and 3 phase separation.

The two phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible.

The three-phase separation is to separate the two immiscible liquid phases and a phase of soild at the same time
Detailed Images
Vfd Small Capacity Solid Liquid Separator Machine
Separator part----Drum Body
1. Material: Duplex Stainless Steel

2. Function: Moving part of separator

3. Speed: 5000-13000 rpm

4. Test: Material qualified test
Dynamic Balance Test
Vfd Small Capacity Solid Liquid Separator Machine
Separator Parts---- Shaft.
1. Vertical shaft

2. Corross shaft

3. Centripetal Pump

4. Material: Stainless Steel
Vfd Small Capacity Solid Liquid Separator Machine

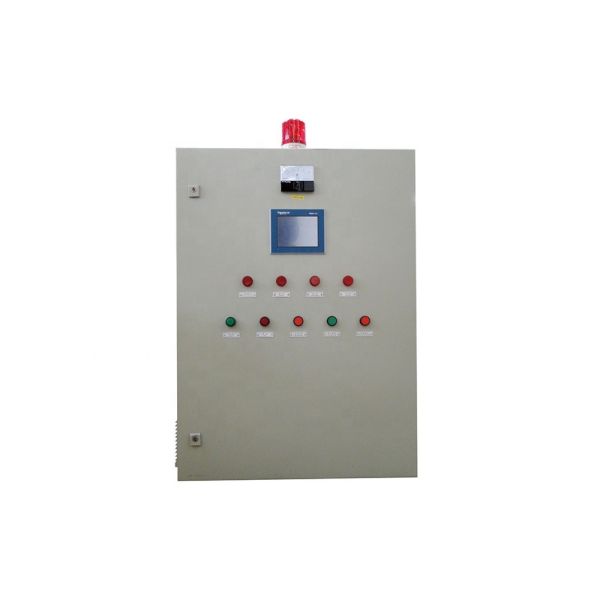

Separator part---- PLC.
1. PLC Brand: Siemens

2. Touch Screen Brand: Scheider

3. Customer Specified Brand

4. Language : Customer Specified
Related Products
Vfd Small Capacity Solid Liquid Separator Machine

Small capacity disc separator

Vfd Small Capacity Solid Liquid Separator Machine

Self-cleaning candle filter

Vfd Small Capacity Solid Liquid Separator Machine

Decanter centrifuge

Vfd Small Capacity Solid Liquid Separator Machine

Oil bleaching filter system

Vfd Small Capacity Solid Liquid Separator Machine

Disc separator whole system

Vfd Small Capacity Solid Liquid Separator Machine

Horizontal plate filter

Vfd Small Capacity Solid Liquid Separator Machine

Scraper centrifuge

Vfd Small Capacity Solid Liquid Separator Machine

Multi-bags filter

Vfd Small Capacity Solid Liquid Separator Machine

Disc separator directly connected

Produce Process
Vfd Small Capacity Solid Liquid Separator Machine

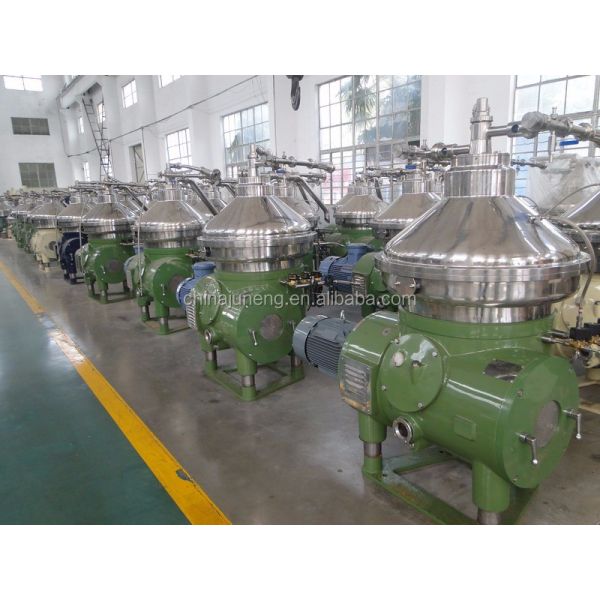

Separator process workshop


Vfd Small Capacity Solid Liquid Separator Machine

Drum processing


Vfd Small Capacity Solid Liquid Separator Machine

Process center


Vfd Small Capacity Solid Liquid Separator Machine

Ultrasonic testing


Vfd Small Capacity Solid Liquid Separator Machine

Dynamic balancing test


Vfd Small Capacity Solid Liquid Separator Machine

Assembling


QA & QC / Test

1. Material Test Report 6. Spare Parts Inspection

2. Magnetic Particle Examination 7. Nondestructive Examination

3. Metallographic Analysis Sampling 8. Dynamic Balancing Test

4. Liquid Penetrant Examination 9. Radiographic Examination

5. Over Speed Test 10. Performance Test

Packing & Delivery
Vfd Small Capacity Solid Liquid Separator Machine
Packaging
Size
be different because of different model
Weight
1000kg-3000kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Transport
Domestic: by carborne
Overseas: by sea or by train
Certifications
Vfd Small Capacity Solid Liquid Separator Machine

We have obtained CE certificates, ASME U certificate and ISO 9001 certificate.

Our Service
Vfd Small Capacity Solid Liquid Separator Machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Vfd Small Capacity Solid Liquid Separator Machine

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ
Vfd Small Capacity Solid Liquid Separator Machine


1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .

5) Q: I haven ' t done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.

6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
