Specifications
Place of Origin :
China
product type :
mineral oil
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
Motor
Brand Name :
Juneng
voltage :
220V/380V/460V
power(w) :
4 Kw
dimension(l*w*h) :
720*800*1100 mm
warranty :
12 Months
key selling points :
Easy To Operate
Capacity :
501-1000l/h, 2000 L/H
Weight (KG) :
500
setting speed :
4000 RPM
After-sales Service Provided :
Field installation, commissioning and training
Structure :
Stable Structure
Discharge :
Automatic Discharge
Application :
Liquid Solid Separation
ID of drum :
265mm
Drum Speed :
Appro 8086 r/min
Inlet pressure :
0.05 Mpa
Certification :
ISO, CE,BV
MOQ :
1 set
Price :
$10,999-11,399 / set
Description
Product Description

Product Application

The heavy diesel oil is separated by separator can replace the light diesel oil for using so that reduce the cost of production greatly.

The marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.

The design, manufacture and inspect are accord with GB/T5745-2002 << Marine Disk Separator>>. Stable operation, the vibration is much lower than the national standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.


Application:

The marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine

Model
Rated Treatment capacity (L/h)
Inlet pressure (Mpa)
Outlet pressure(Mpa)

KYDR204DD-23
1500
≤0.05
≥0.2
KYDH204SD-23
2000
≤0.05
≥0.2
JOS10
3000
0.2
0.15-0.2
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator

Main Features

1) There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum.


2) This series of separator outfits various specific gravity rings with different diameter, which can be selected and used according to the density and volume of the materials.


3) It has backpressure regulating valve. Separating effect can be regulated by regulating backpressure.

Certifications

In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump. In addition, we have obtained a plenty of certifications such as CE certificates, ASME U certificate and ISO 9001 certificate etc.

Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Company Profile
Solid-liquid Separation Marine diesel Oil (mdo) Separator

Jiangsu Juneng Machinery Co., Ltd in Yixing

We are professional in manufacturing disc separators and liquid pumps.If you would have any plan on these items,please feel free to contact us. We are happy to recommend the most suitable model for you.

Our Service
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Repair and maintain

Packing & Delivery
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Packaging
Transport
Ocean shipping sea transportation transport by sea
Container
20'GP, 40'HC or Shipping LCL



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator
Solid-liquid Separation Marine diesel Oil (mdo) Separator

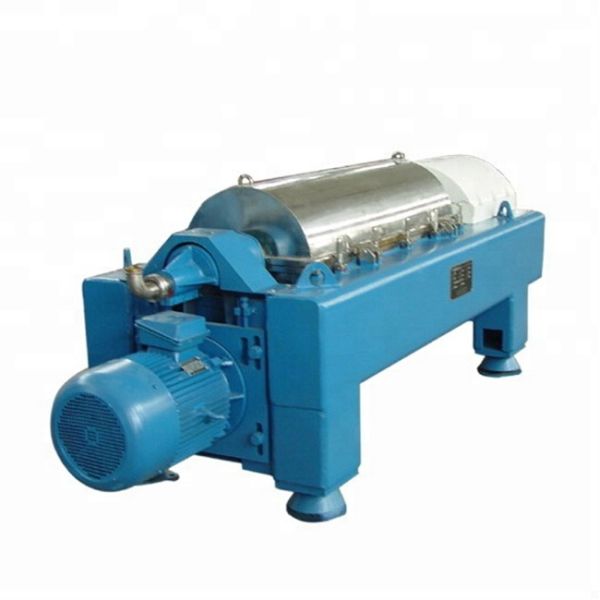

Decanter centrifuge
