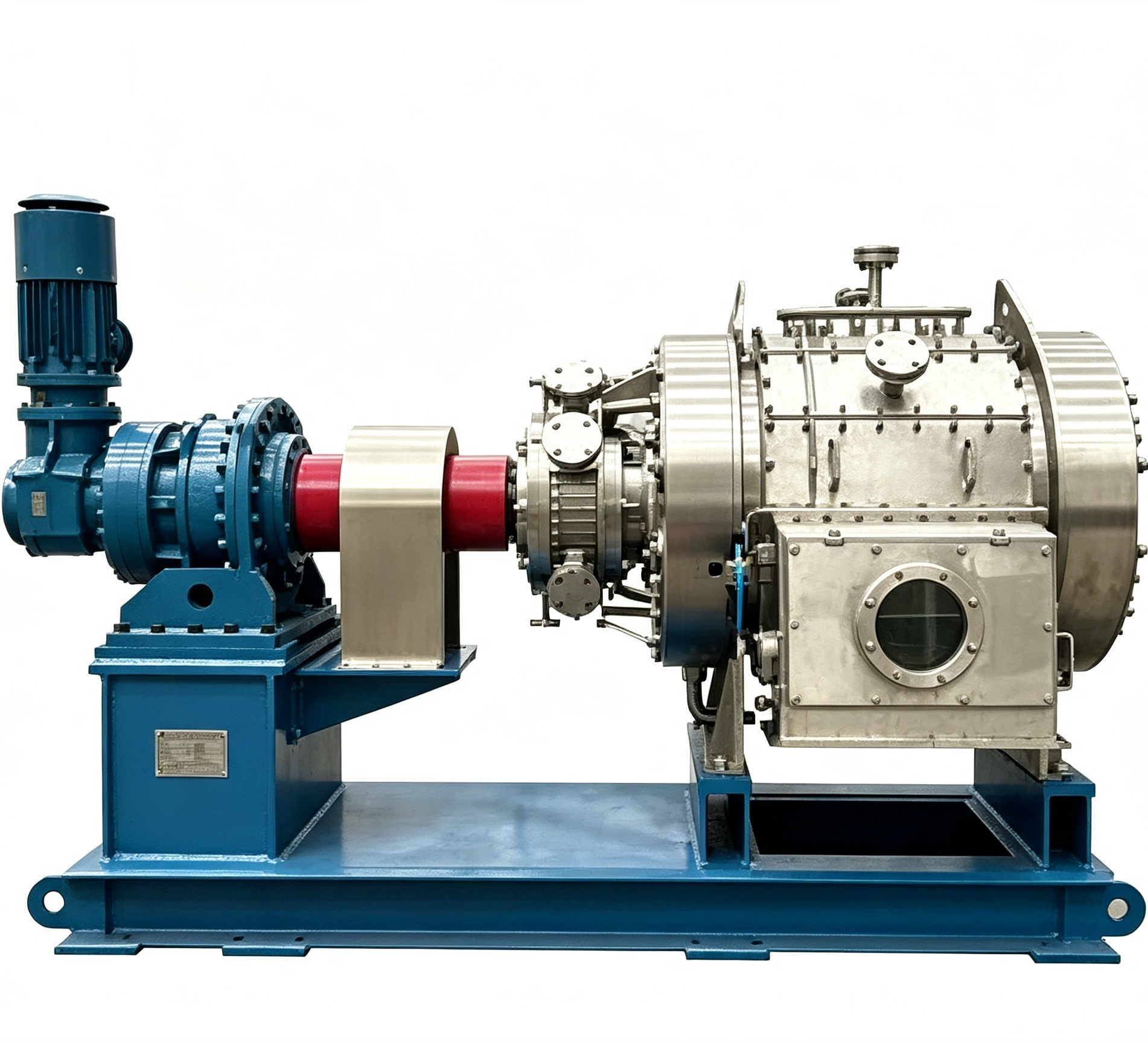

YZL216 Continuous Rotary Drum Filter for Pigment & Dye Slurry Pressure Vacuum Filtration
YZL216 Continuous Rotary Drum Filter for Pigment & Dye Slurry Pressure Vacuum Filtration
Specifications
Certification :
ISO 9001:2015, CE, GMP
MOQ :
1 Set
Payment Terms :
T/T,L/C
Packaging Details :
Export-grade wooden case with moisture-proof protection, reinforced for sea freight
Place of Origin :
Jiangsu, China
Overall Dimensions :
3000×2300×2200 mm (L×W×H)
Supply Ability :
50 Sets per Year
Sealing :
Fully Enclosed Explosion-Proof
Cake Thickness :
2–20 mm Adjustable
Delivery Time :
45-65working days
Operation Mode :
Fully Automatic Continuous
Price :
USD 35,000-50,000 / Set
Filtration Area :
2.16 m²
Brand Name :
Peony
Model Number :
YZL216
Weight :
8000 kg
Description
YZL216 Continuous Rotary Drum Filter for Pigment & Dye Slurry Pressure Vacuum Filtration
The YZL216 Rotary Pressure Vacuum Drum Filter is a next-generation solid-liquid separation system that integrates filtration, cake washing, drying, automatic discharge, and self-cleaning into one fully enclosed continuous process. Unlike traditional GXG-type Nutsche filters that rely on mechanical agitators, the YZL series is engineered with a rotary drum mechanism — no internal agitator, no mechanical stirring, just pure rotating drum filtration.
YZL vs. GXG Nutsche: The Core Difference
Feature YZL Rotary Drum Filter GXG Nutsche Filter Dryer
Mechanism Rotary drum (no agitator) Agitator with paddle blades
Operation Fully continuous, auto-discharge Batch-by-batch, manual intervention
Filtration Drive Pressure + vacuum dual mode Pressure or vacuum only
Cake Handling Automatic scraping and discharge Manual or semi-automatic discharge
Cleaning Self-cleaning filtration media Requires manual cleaning
Enclosure Fully sealed, zero emissions Sealed with potential leakage
Key Features
  • Agitator-Free Rotary Drum Design — Eliminates mechanical wear from agitator blades; ideal for solvent-based, volatile, and flammable materials
  • Continuous Multi-Stage Processing — Filtration → washing → drying → discharge → media cleaning, all in one uninterrupted cycle
  • Pressure & Vacuum Dual Operation — Flexibly switch between pressurized and vacuum modes based on material viscosity and filtration requirements
  • Stepless Variable Speed Control — Adjust drum rotation speed to optimize cake thickness (2-20 mm) for different slurry characteristics
  • Fully Enclosed Explosion-Proof Construction — Zero solvent vapor emissions, compliant with ATEX standards for hazardous environments
  • CIP Self-Cleaning System — Integrated automatic cleaning of filtration media between batches without disassembly
  • Low Operating Cost — No agitator motor power consumption, reduced maintenance intervals, long service life
YZL216 Technical Specifications
Model Filtration Area (m²) Dimensions L*W*H (mm) Weight (kg)
YZL12 0.12 1000*900*1600 1000
YZL54 0.54 2000*2000*1900 3500
YZL108 1.08 2300*2000*1900 5000
YZL144 1.44 2500*2100*2200 6300
YZL216 2.16 3000*2300*2200 8000
YZL288 2.88 3600*2400*2500 9500
YZL320 3.20 3100*2900*3200 12500
YZL432 4.32 3700*3000*3200 15500
YZL576 5.76 4000*3000*3200 19000
YZL768 7.68 4100*3200*3500 22000
Target Applications
  • Pharmaceutical: API crystallization filtration, solvent-based intermediate washing and drying
  • Fine Chemicals: Pigment filtration with organic solvent recovery, dye intermediate processing
  • Petrochemical: Catalyst separation and washing under pressure
  • Food & Beverage: Edible oil filtration, sugar syrup clarification
  • Environmental: Industrial sludge dewatering, hazardous waste treatment
Why Choose YZL Over GXG Nutsche?
If you handle volatile solvents, flammable materials, or toxic slurries, the agitator in a traditional GXG Nutsche filter introduces unnecessary risk — mechanical seal leakage, spark hazards, and batch inconsistency. The YZL rotary drum design eliminates the agitator entirely, delivering safer, faster, and more consistent solid-liquid separation with lower total ownership cost.
