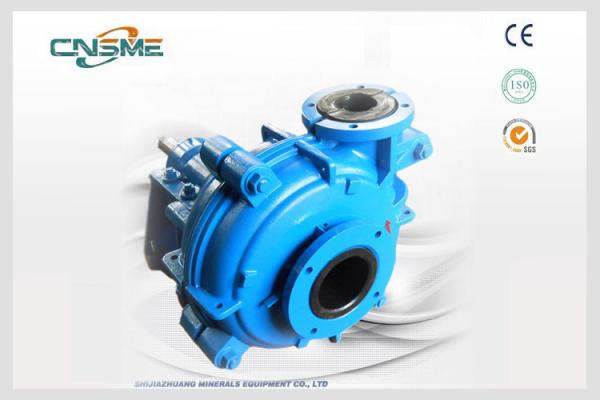

SHR / 250ST Rubber Lined Slurry Pumps Natural Rubber Horizontal Slurry Pump
SHR / 250ST Rubber Lined Slurry Pumps Natural Rubber Horizontal Slurry Pump
SHR / 250ST Rubber Lined Slurry Pumps Natural Rubber Horizontal Slurry Pump
SHR / 250ST Rubber Lined Slurry Pumps Natural Rubber Horizontal Slurry Pump
Specifications
Brand Name :
CNSME
Model Number :
12/10ST-
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Neogotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Theory :
Centrifugal
Usage :
Tailings Pumping
Impeller :
5 Closed Vans
Structure :
Double Casing
Type :
Horizontal
Description

SHR Slurry Pumps SHR / 200ST Natural Rubber Lined Horizontal Type

Introduction:

12/10ST-R slurry pump has a 10-inch outlet, the capacity is 720-1620m3/h with head 7-43m.

Slurry pump pump body with replaceable rubber lining, impeller, shield, front and rear sheath are made of wear-resistant decay-resistant rubber.

Adhesive pump is suitable for conveying small particle size, no sharp corners and high concentration of slurry particles, can also transport corrosive slurry.

Seal : packing seal, vice impeller seal, fill the auxiliary impeller seal, mechanical seals and other types.

Specifications:

Model SHR-250ST
Outlet 10-inch
Capacity 720-1620m3/h
TDH 7-43m
Rated Motor Power 560Kw
Speed 300-500r/min
NPSH 3-8m

Construction of Rubber Slurry Pump:

SHR / 250ST Rubber Lined Slurry Pumps Natural Rubber Horizontal Slurry Pump

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

Standard Material of Wet-end Parts: Natural Rubber

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃

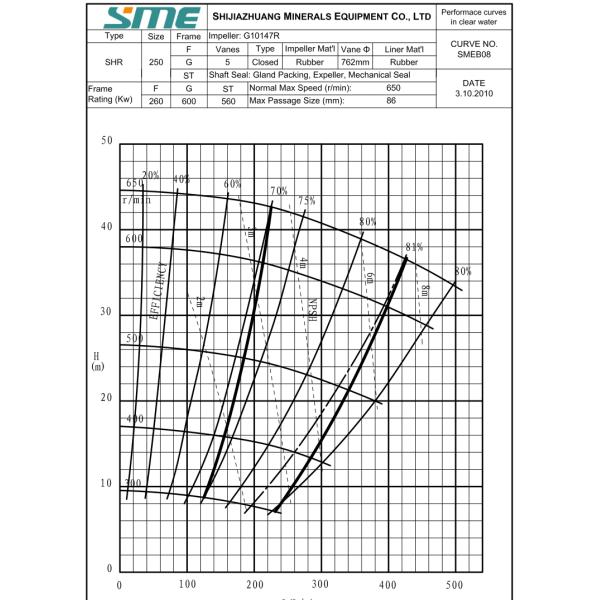

Performance Curve:

SHR / 250ST Rubber Lined Slurry Pumps Natural Rubber Horizontal Slurry Pump
