Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
Specifications
Brand Name :
CNSME
Model Number :
EAM005M
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 Pcs per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Cast Iron (Grey or Ductile)
Use :
Slurry Pump Rotor
Bearings :
SKF, Timken
Description :
Bearing Assembly
Part Code :
F005M
Lubrication :
Lithum Based Grease #2
Description

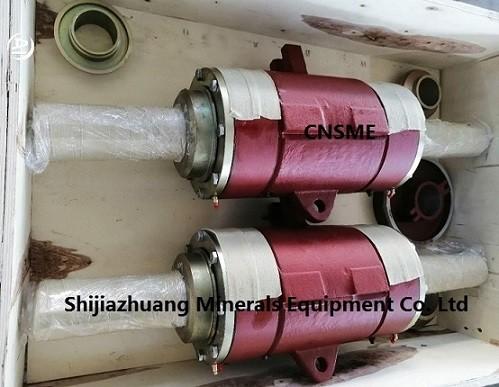

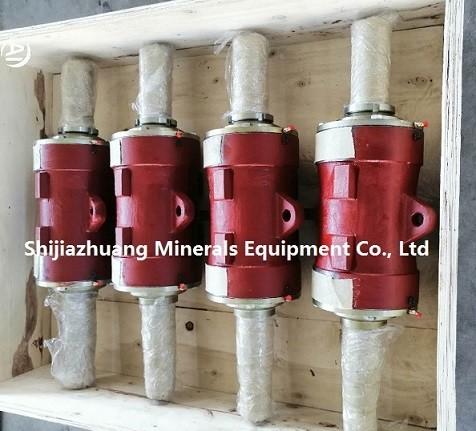

Cast Iron Bearin Housing with Shaft for Bearing Assembly of Heavy Duty Slurry Pumps

Introduction:

Bearing assembly is an assembled part which comprises parts like shaft, bearing housing, bearings, end cover, labyrinth, etc. and is the rotor part of a slurry pump. The bearings installed are branded, ZWZ, HRB, SKF, TIMKEN.

Shaft and bearing assembly:

A large diameter shaft with a short overhang minimises deflection and vibration. Heavy duty doller bearings are housed in a removable bearing cartridge.

Pump Base:

A one piece casting cradles the cartridge bearing assembly. A minimum number of through bolts hold the pump casing to the frame. A means of impeloler adjustment is provided in a convenient position below the bearing housing.

Features:

Alternative shaft sealing arrangement are fully interchangeable within the same pump;

An extremely heavy duty shaft with a short diameter overhang minimises deflection and vibration;

Heavy duty grease lubricated roller bearings that are protected with grease purged labyrinth seals at both ends.

Metal Pump Explosive View:

Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft

Sizes of bearing frames: B, C, D, DD, E, EE, EAM, EEAM, F, FF, FAM, FFAM, G, GG, GAM etc. Different bearing frames can bear different engine power.

Castings of Slurry Pump Spare Parts - Bearing Assembly

Cast Iron Heavy Duty Slurry Pump Parts Bearing Housing With ShaftCast Iron Heavy Duty Slurry Pump Parts Bearing Housing With Shaft
