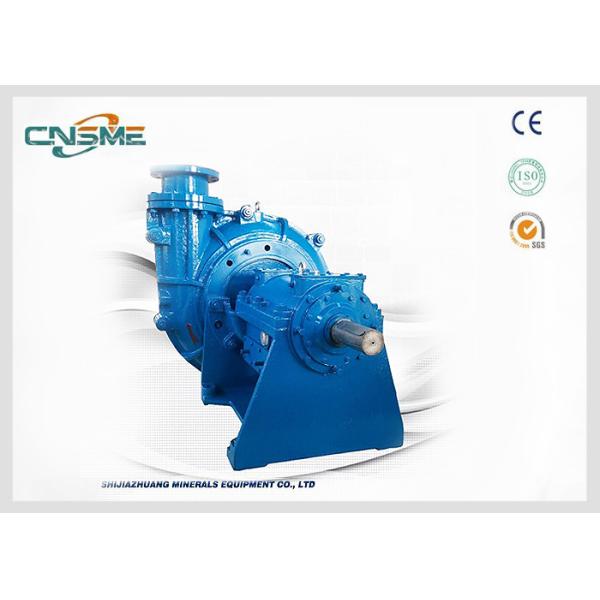

A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump
A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump
A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump
A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump
Specifications
Brand Name :
CNSME
Model Number :
SH/50C (3/2C-)
Certification :
ISO/CE/EAC
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Feature :
Medium Duty
Shaft Type :
Horizontal
Seal :
Expeller Seal, Packing Seal, Mechanical Seal
Delivery :
10 Days
Drive Type :
By Belts or Coupling
Description

SH series Horizontal Type Heavy Duty Centrifugal Slurry Pump A05 A33 A49 Wet-end Parts

Introduction:

Slurry pumps are designed and engineered for the most rugged and demanding installations. For years, our slurry pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.

SH/50C (3/2C-) is a very popular model among horizontal slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle medium abrasive and erosive slurries.

1) Simple structure in liner type, easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.

3) High-pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution.

5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.

Specifications:

Model SH/50C
Outlet 2-inch
Capacity 39.6-86.4m3/h
TDH 12-64m
Rated Motor Power 30Kw
Speed 1300-2700r/min
Max. Eff. 55%
NPSH 4-6m

Type Size Frame Impeller: C2147A05 Shaft Seal Type Frame Rating(KW) Normal Max Speed(r/min) Max. Passage Size(mm)
SH 50 C 5 Closed Metal Vanes, Diameter: 229/214mm Gland Packing, Expeller, Mechanical Seal 30 2700 25

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Iron Ore Dressing Plant

Copper Concentration Plant

Molybdenum Concentration Plant

Gold Mine Concentration Plant

Potash Fertilizer Plant

Alumina Industry

Coal Washery

Power Plant

Sand Excavation

Building Material Industry

Chemical Industry

Other Industries

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

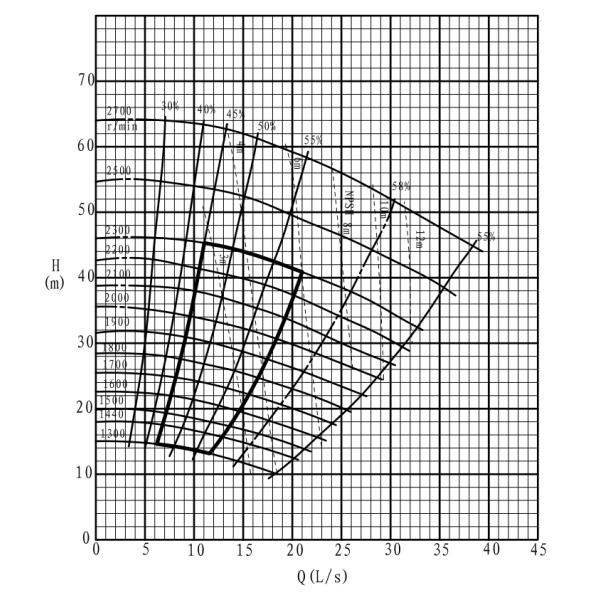

Performance Curve:

A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump

Other Series Products(SG series, ZJ series, SV series)

A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump

A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump

A05 A33 A49 Wet End Parts Horizontal Heavy Duty Slurry Pump
