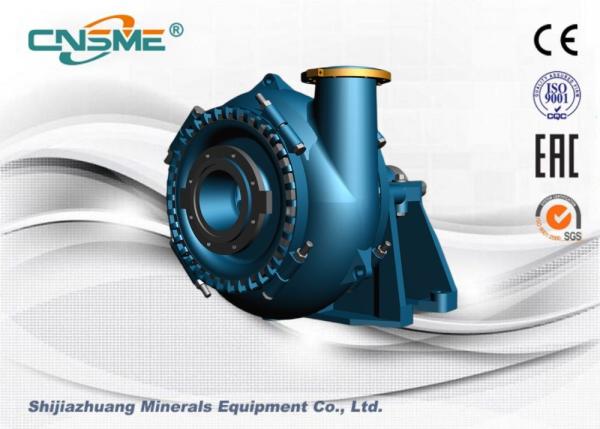

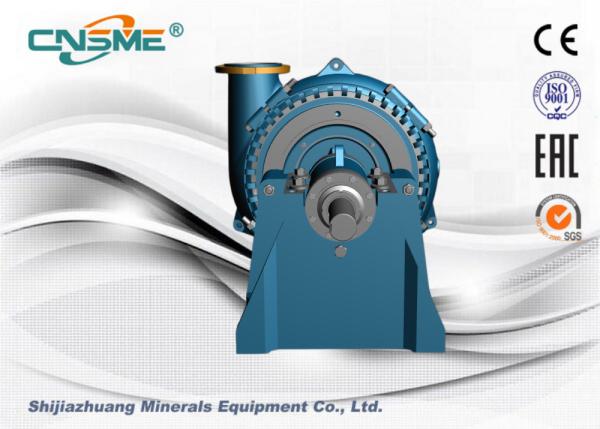

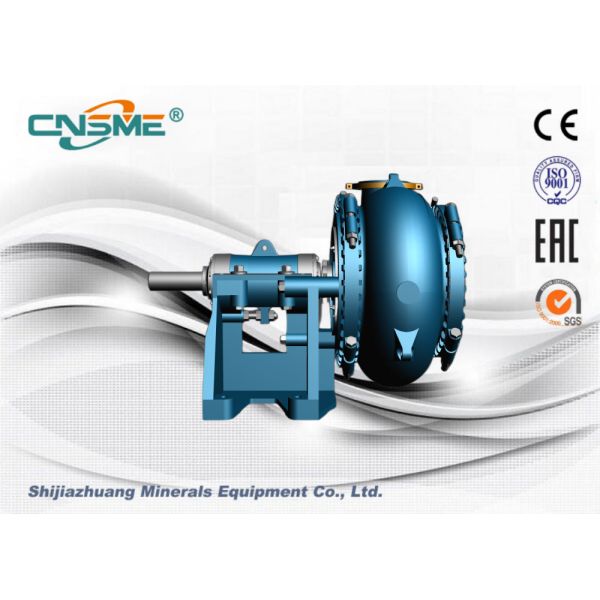

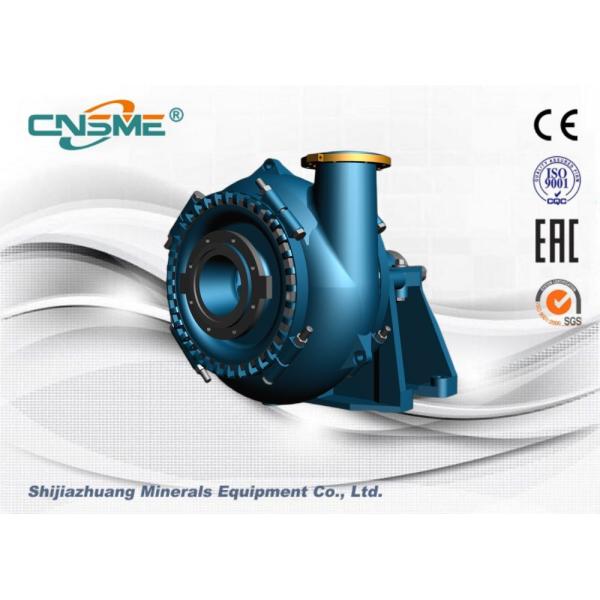

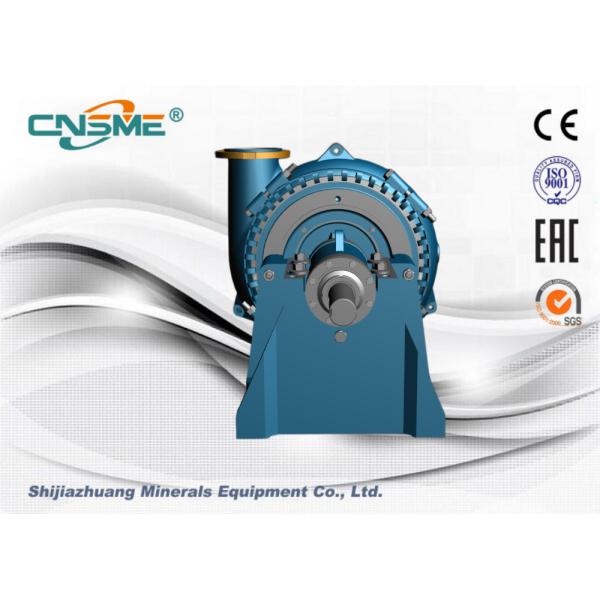

Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Specifications
Brand Name :
CNSME
Model Number :
SG/200F
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD15000/pc
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
10-15 workdays
Packaging Details :
Wooden crate
Model NO. :
SG/200F
Voltage :
380V-480V
Flowrate: :
216-1200m3/h
Head :
8-66m
Speed :
300-1100rpm
Efficiency :
Max 65%
Impeller :
3 Vanes Closed Type
Power :
260kW
Application :
Food and Beverage Industry, Marine, Mining industry, sand plant
Warranty :
1 Year Warranty(except Wearing Parts)
Maximum Particle :
178mm
Description

CNSME 10/8F-G Gravel Sand Slurry Pump and Interchangeable Spare Parts Manufacturer

10/8F-G Gravel Pump is the world’s standard for dredge and gravel applications. The range provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications. Pass very large solids not capable of being pumped by series slurry pumps.

Design Features:


• G gravel pump uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate.
• G gravel pump has wide runner, good anti-clogging performance, and excellent cavitation performance.
• G gravel pump uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak.
• The reliability design greatly improves mean time between failures (MTBF) of complete machine.
• G gravel pump uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature.
• Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electric chemical corrosion conditions.
• In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-GMax 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G
Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G

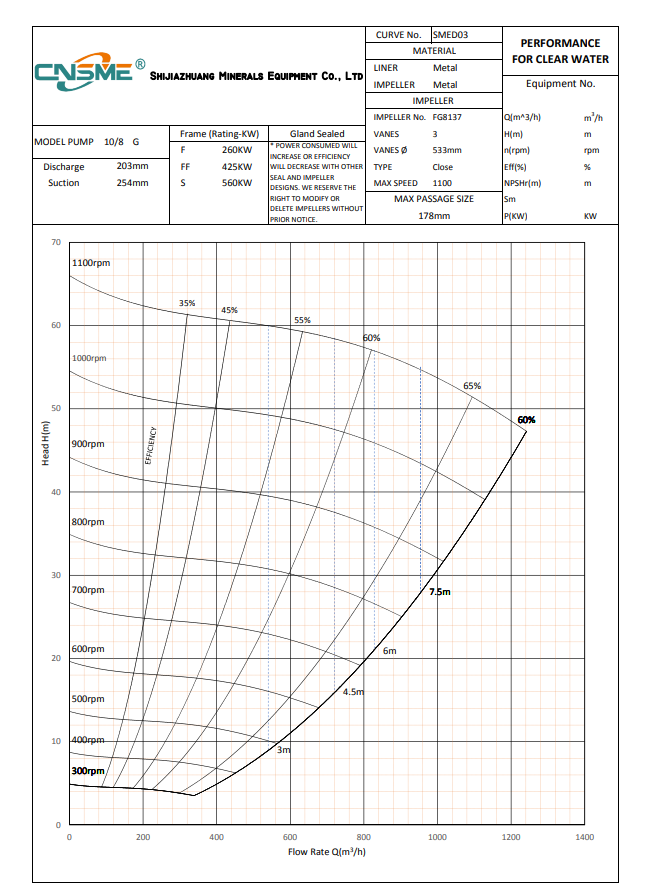

Outlet Dia.(mm)

 200

Inlet Dia.(mm)

 250

Head(m)

 8-52

Flow(m3/h)

 216-936

Pumping case
Cast Iron

Shaft

 40Cr

Shaft seal

 Packing seal, Expeller seal, mechanical seal

Wet ends

 Cr26

Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G

Max 178mm Big Particle River Sand Dredging Gravel Slurry Pump CNSME 10/8F-G

Applications

  • Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying
  • Metallurgy:Transport various slurry for aluminium or steel manufacture
  • Coal: Coal mining, washing and various coarse and fine coal slurry transportation
  • Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation
  • Construction materials:Various mud sand slurry(such as Cement slurry) transportation
  • Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation
  • Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation
