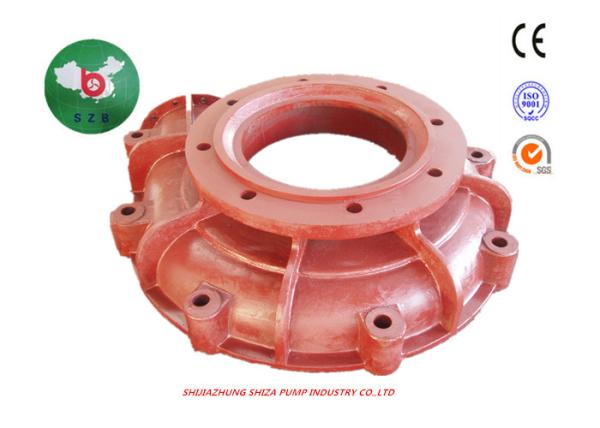

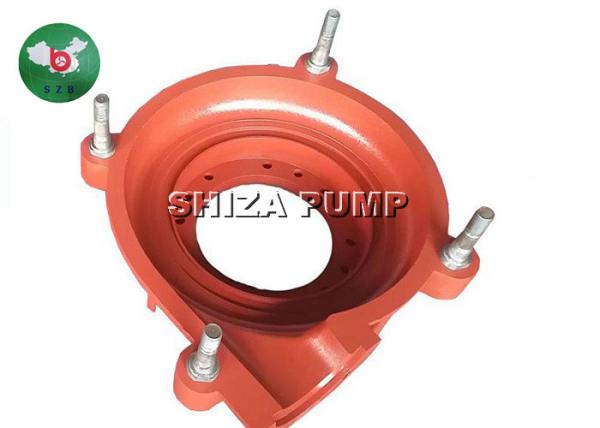

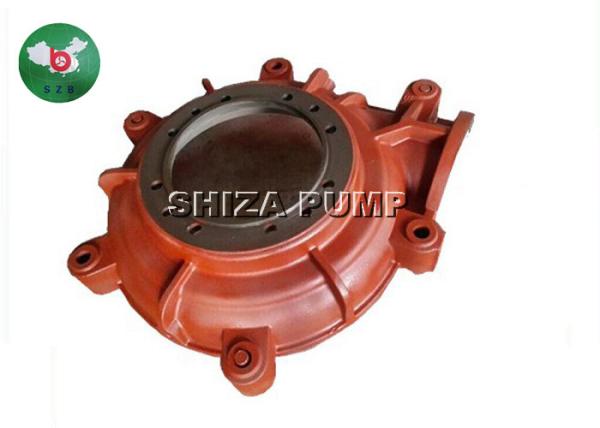

Centrifugal Frame Plate Slurry Pump Parts With ISO CE Certificate Industrial
Centrifugal Frame Plate Slurry Pump Parts With ISO CE Certificate Industrial
Centrifugal Frame Plate Slurry Pump Parts With ISO CE Certificate Industrial
Centrifugal Frame Plate Slurry Pump Parts With ISO CE Certificate Industrial
Centrifugal Frame Plate Slurry Pump Parts With ISO CE Certificate Industrial
Centrifugal Frame Plate Slurry Pump Parts With ISO CE Certificate Industrial
Specifications
Brand Name :
SHIZA
Model Number :
R
Certification :
ISO
Place of Origin :
China
MOQ :
1 unit
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Color :
slurry pump parts
Type :
Cover Plate and frame plate
MOQ :
1 unit
Original :
China
Pump series :
G gravel slurry pumps
Theory :
centrifugal pump
Description

Industrial centrifugal slurry pump frame plate with ISO and CE certificate

Features:

wear resistance /abrasion resistance
long life service spare parts

High efficiency and low power consumption

Short delivery
ISO9001:2008 passed


Main applications :


This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

(R) L(R), M HH SP(R) G AF Series
1.5/1B-(R) 20A-L 1.5/1 C-HH 40PV-SP(R) 6/4D-G 2QV-AF
2/1.5B-(R) 50B-L(R) 3/2D-HH 65QV-SP(R) 8/6E-G 3QV-AF
3/2C-(R) 75C-L 4/3E-HH 100RV-SP(R) 10/8F-G 6SV-AF
4/3C-(R) 100 D-L 4/3X-HH 150SV-SP(R) 10/8S-G 8SV-AF
6/4D-(R) 150E-L 6/4F-HH 200SV-SP 12/10G-G
6/4E-(R) 300S-L 6/4X-HH 250TV-SP 14/12G-G
8/6E-(R) 350S-L 6S-H 14/12T-G
8/6R-(R) 400ST-L 8/6S-H 16/14 G-G
10/8F-(R) 450ST-L 8/6X-H 16/14TU-GH
10/8X-(R) 10/8 E-M 6S-HP 16/14H-GH
12/10ST-(R) 10/8 R-M 8/6S-HP 18/16G-G
14/12ST-(R) 8/6X-HP 18/16TU-GH
16/14TU-(R)
20/18G(TU)-(R)

slurry pump parts code:

-tell me the standard code no .we can quote you price immediately :

OEM part codes

Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110,

Structure of slurry pump

No. Name Material
1 Impeller High-chrome alloy
Natural Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Natural Rubber
4 Rear liner plate High-chrome alloy
Natural Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching and high temprature tempering
10 Bearing housing Gray Iron
11 Expeller ring High-chrome alloy
Natural Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray Iron
15 Support QT500-7

Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted
