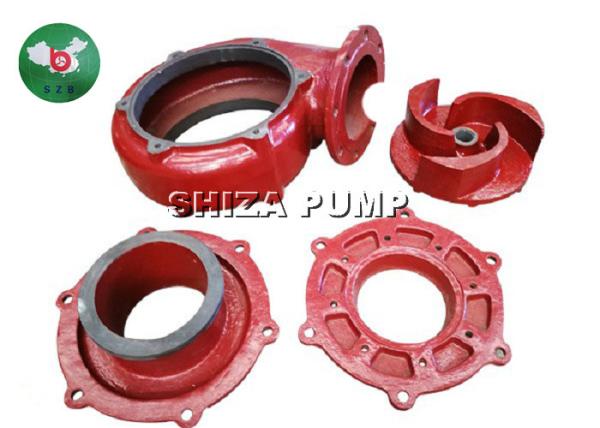

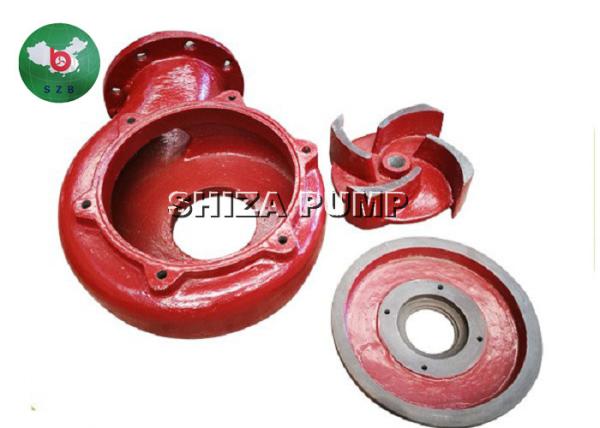

Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining
Specifications
Brand Name :
SHIZA
Model Number :
G/GH
Certification :
ISO
Place of Origin :
China
MOQ :
1 pc
Price :
based on quantity
Supply Ability :
200sets monthly
Delivery Time :
15days
Packaging Details :
wooden case
Material :
27%chrome alloy A05
Color :
basd on you requiring
Type :
Thicker Volute Liner
MOQ :
1 pc
Locate :
China
Pump type :
G gravel slurry pumps
Description

Thicker Volute Slurry Pump Spare Parts For G / GH Gravel Slurry Pumps Mining Rubber/Metal

Material

Type Code Mark Mechanism Performance Special Performance Application
HRC
δw/δb αk
MPa J/cm2
Anti-wear white iron A05 KmTBCr27 ≥700 6--10 ≥56 Erode resistance is a little bit lower than A07 with certain corrosive resistance Used for higher wear condition with PH between 5 and 12
A07 KmTBCr15Mo ≥550 4--8 ≥59 Best erode resistance but lower wear resistance than A05 Used for higher wear condition
A01 KmTBCr8 ≥550 6--8 ≥55 The erode resistance is about 0.9 times of A05. Used for mud pump
A11 KmTBMnMo ≥400 3--6 38-42 Lighter erode resistance and lower hardness. It can be perforated and tapped. Used for light wear condition with fine grain.
Anti- wear &anti-corrosive iron A49 -- ≥600 -- 43 It has certain erode and corrosive resistance in low PH condition. Its wear resistance is nearly equal to A03 For lower PH condition,especially for flue gas. For low sour condition desulphuration installation (PH≥4)
A33 -- -- -- 35 It has certain erode and corrosive resistance that is similar to A03 and certain corrosive resistance. It can transport oxygenated slurry with PH not be less than 1.
Anti-wear cast steel A22 -- 1200 -- 45 Fine anti-erode & anti-corrosive, high hardness. Used for dredge pump casing.
A23 -- 700 -- HB500-600 Higher hardness and anti-erode. Used for anti-wear &corrosive and high erode condition.
A25 -- -- -- HB300-350 Lower hardness, better anti-wear & anti-corrosive and weldable. Used for light erode and wear condition.

Pump replaced parts material:

1) Material: D21, G01, A05...

2) Shaft material: 45#, 40Cr, SS304, SS315...

3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

4) Lantern ring material: 304, 316, PTFE, Cu...

5) Bearing housing/ bearing end cover material: G01, D21...

6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,

S50, U01, EPDM, PU, CR..

Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted
