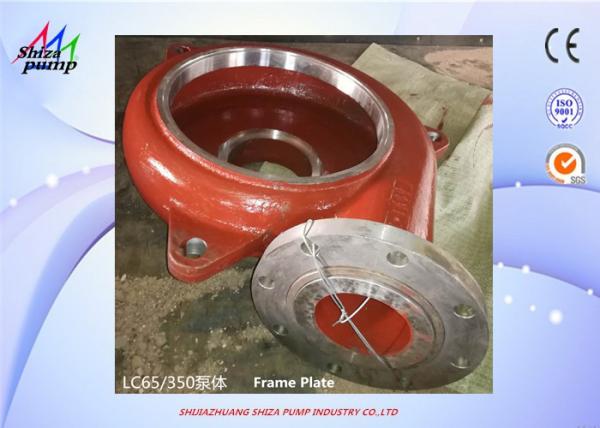

Slurry Pump Spare Parts Metal Frame Plate
Slurry Pump Spare Parts Metal Frame Plate
Specifications
Brand Name :
SHIZA
Model Number :
LC65-35
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
based on quantity
Supply Ability :
3000sets monthly
Delivery Time :
7days
Packaging Details :
wooden case
Material :
chrome alloy A05
Color :
customized
part name :
cover plate and frame plate
MOQ :
1 set
From which country :
China
Advantage :
Interchangeable
Description

Slurry Pump Spare Parts Metal Frame Plate

Features:

The pump body is composed of two parts: a water absorption chamber and a pressure water chamber. The inlet of the suction chamber and the outlet of the pressurized water chamber are a water pump inlet flange and an outlet flange, respectively, for connecting the inlet and outlet pipes. The suction chamber is generally a tapered conical or equal diameter straight tube that acts to introduce water into the impeller and provide the desired flow to the impeller. The function of the pressurized water chamber is to collect the liquid flowing out of the impeller and direct the liquid flow to the outlet. The shape of the pressurized water chamber is very similar to the snail shell, commonly known as the volute, and the impeller is wrapped in the volute.

The top of the pump body is provided with a venting hole (watering hole) for vacuuming or watering. A water discharge hole is arranged at the bottom of the casing, and is usually plugged with a square head bolt. After the shutdown, it is used to vent the water in the pump body to prevent the parts inside the pump from rusting and freezing in the winter to freeze the pump body. The pump body is made of materials such as cast iron or cast steel, and its inner surface is required to be smooth to reduce hydraulic loss.


Main applications :

This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

(R) L(R), M HH SP(R) G AF Series
1.5/1B-(R) 20A-L 1.5/1 C-HH 40PV-SP(R) 6/4D-G 2QV-AF
2/1.5B-(R) 50B-L(R) 3/2D-HH 65QV-SP(R) 8/6E-G 3QV-AF
3/2C-(R) 75C-L 4/3E-HH 100RV-SP(R) 10/8F-G 6SV-AF
4/3C-(R) 100 D-L 4/3X-HH 150SV-SP(R) 10/8S-G 8SV-AF
6/4D-(R) 150E-L 6/4F-HH 200SV-SP 12/10G-G
6/4E-(R) 300S-L 6/4X-HH 250TV-SP 14/12G-G
8/6E-(R) 350S-L 6S-H 14/12T-G
8/6R-(R) 400ST-L 8/6S-H 16/14 G-G
10/8F-(R) 450ST-L 8/6X-H 16/14TU-GH
10/8X-(R) 10/8 E-M 6S-HP 16/14H-GH
12/10ST-(R) 10/8 R-M 8/6S-HP 18/16G-G
14/12ST-(R) 8/6X-HP 18/16TU-GH
16/14TU-(R)
20/18G(TU)-(R)

Warma slurry pump parts code:

-tell me the standard code no .we can quote you price immediately :

Pump replaced parts material:

1) Material: D21, G01, A05...

2) Shaft material: 45#, 40Cr, SS304, SS315...

3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

4) Lantern ring material: 304, 316, PTFE, Cu...

5) Bearing housing/ bearing end cover material: G01, D21...

6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,

Structure of slurry pump

Slurry Pump Spare Parts Metal Frame Plate

No. Name Material
1 Impeller High-chrome alloy
Natural Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Natural Rubber
4 Rear liner plate High-chrome alloy
Natural Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching and high temprature tempering
10 Bearing housing Gray Iron
11 Expeller ring High-chrome alloy
Natural Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray Iron
15 Support QT500-7

Spare parts materials

NO. Name code Regular material Alternational materials
1 Impeller A05(Cr27) A49,Rubber,304,316
2 Throatbush 083 A05(Cr27) A49,Rubber,304,316
3 Frame plate liner insert 041 A05(Cr27) A49,Rubber,304,316
4 Volute liner 110 A05(Cr27) A49,Rubber,304,316
5 Expeller ring 029 Cast iron A49,Rubber,304,316
6 Expeller 028 Cast iron A49,Rubber,304,316
7 Cover plate liner 018 Rubber
8 Frame plate liner 036 Rubber
9 Frame plate 032 Cast iron Ductile cast iron
10 Cover plate 013 Cast iron Ductile cast iron
11 Base 003 Cast iron Ductile cast iron
12 005 Assorted

Application

Slurry Pump Spare Parts Metal Frame Plate
