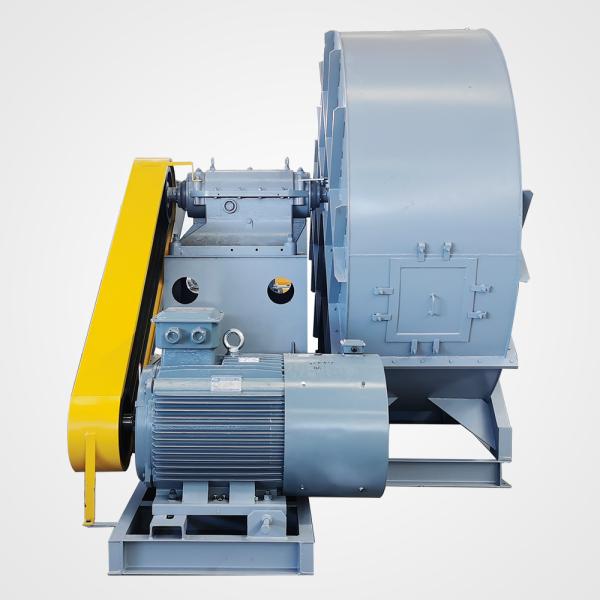

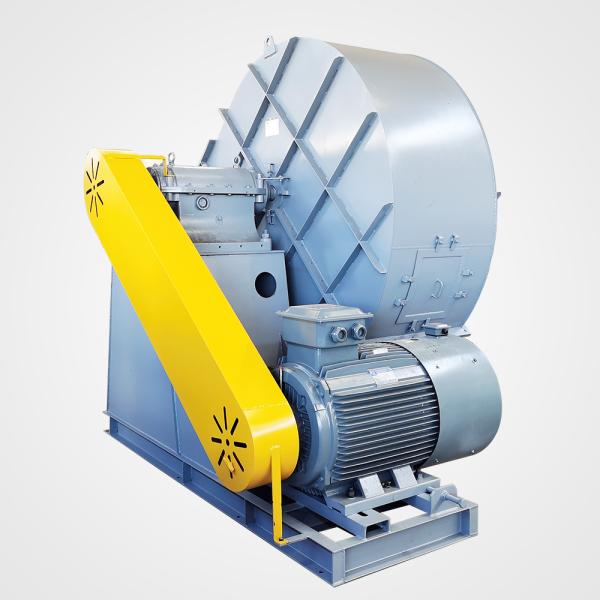

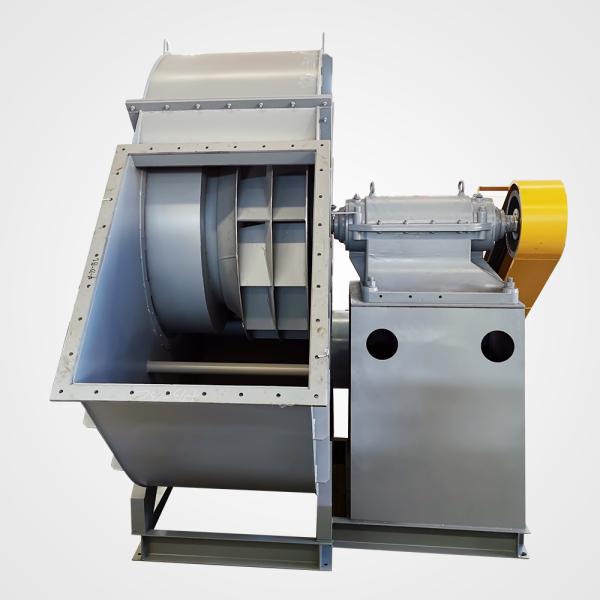

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
Specifications
Brand Name :
SIMO BLOWER
Model Number :
SIMO Blower 4-10
Certification :
CE, ISO
Place of Origin :
China
MOQ :
≥1 set
Price :
$500-1,0000.00/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 Set/Sets per Month centrifugal fan and axial fan manufacturer
Delivery Time :
35days (To be negotiated)
Packaging Details :
1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement
Application :
Industrial Waste Gas Treatment
Bearing Cooling :
Air Cooling Or Circulating Water Cooling
Blade type :
Forward
Motor :
SIEMENS/ABB/By your demand
Impeller :
Dynamic Balanced
Voltage :
380V/50Hz/60Hz
Pressure range :
615-8302PA
Rotation speedMedium :
≤4000rpm
Impeller support :
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Transport Package :
Standard Export Wooden Case
Production Capacity :
10, 000 Sets/Year
After-Sales Service Provided :
Field Maintenance and Repair Service
Customized Support :
ODM OEM OBM
Warranty :
1 Year
Description

45kW Material Conveying Large Air Volume Low Pressure Centrifugal Fan Blower

We are a professional manufacturer specializing in the R&D, manufacturing, production, sales, and after-sales services of fans. This fan has a power rating of 45kW and is specifically designed for material conveying systems. With large airflow and low pressure, it can efficiently and stably convey various material streams. It is widely used in industries such as mining, chemicals, and food processing, ensuring continuous and stable material delivery and efficient operation.

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

Technical specifications:
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
4-10 8C 1450 2104~1400 16156~30993 18.55
9C 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10C 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11C 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12C 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14C 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16C 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18C 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20C 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22C 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25C 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28C 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5C 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600
Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.
45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

Related products

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

Company Profile

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure
Pursue excellent quality, make perfect product!

Cooperating customers

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

Packaging & Shipping

45kw Centrifugal Fan Blower Material Conveying Large Air Volume Low Pressure

Delivery detail: 35 days after receive your payment

FAQ&Contact us

1. How many years your company has experience in centrifugal fan machines?


Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company's pre-sales service and after-sales service?

Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
