Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Specifications
Brand Name :
SIMO BLOWER
Model Number :
SIMO Blower 9-10
Certification :
CE/ISO9001/ISO45001
Place of Origin :
China
MOQ :
≥1 set
Price :
$500-1,00000.00/set
Payment Terms :
L/C,T/T,D/P
Supply Ability :
300sets 30days
Delivery Time :
35days (To be negotiated)
Packaging Details :
1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement
Product Name :
Flue Gas Fan
Motor :
SIEMENS/ABB/By your demand
Mounting :
FREE STANDING
Impeller diameter :
800-1600mm
Flow range :
3297～63305m³/h
Pressure range :
2705～15425Pa
Speed :
≤2900rpm
Voltage :
380V/415V/440V/660V/6KV/10KV
Customized Support :
ODM OEM OBM
After-Sales Service Provided :
Field Installation, Commissioning and Training
Warranty :
1 Year
Description

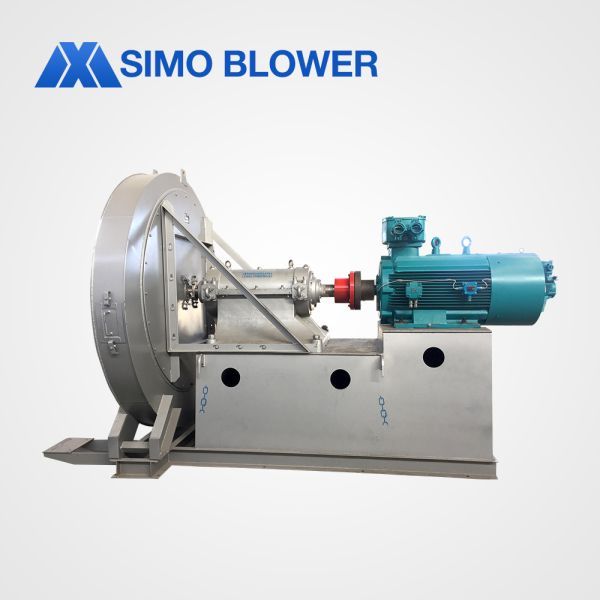

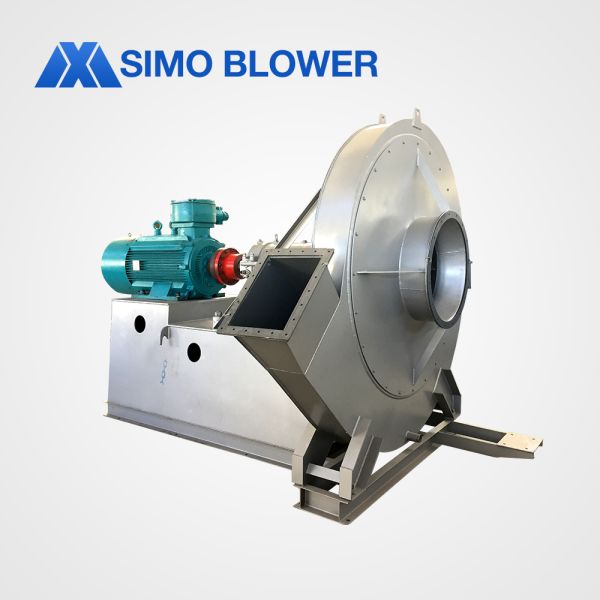

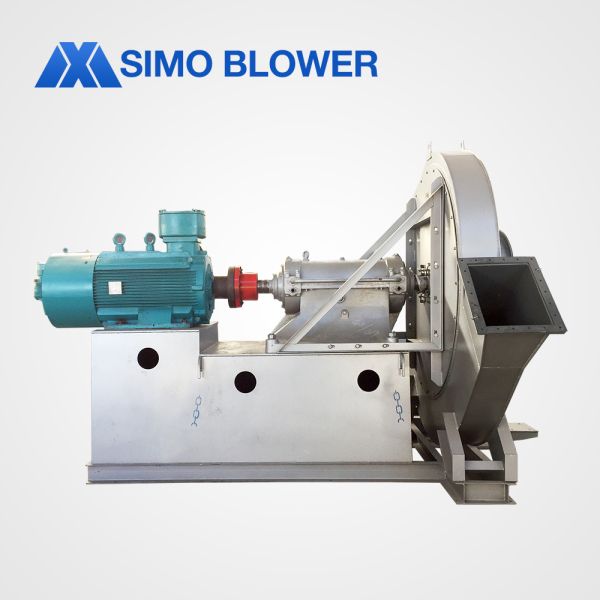

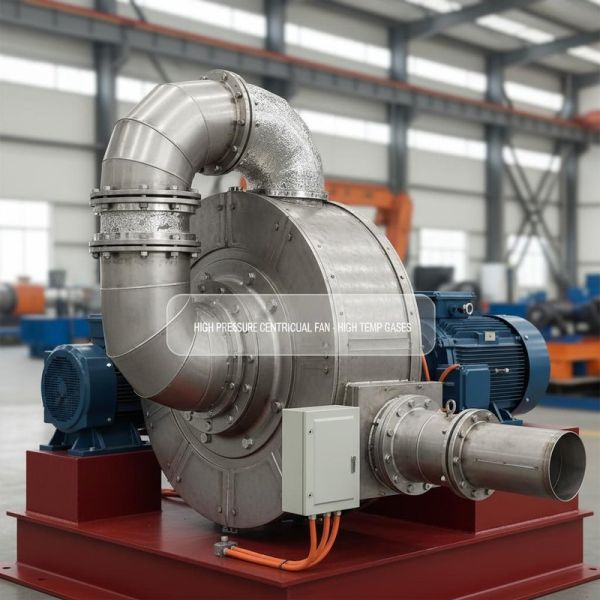

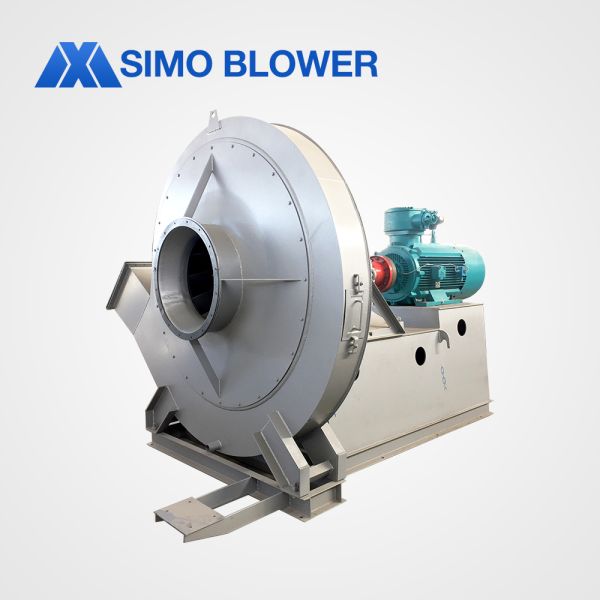

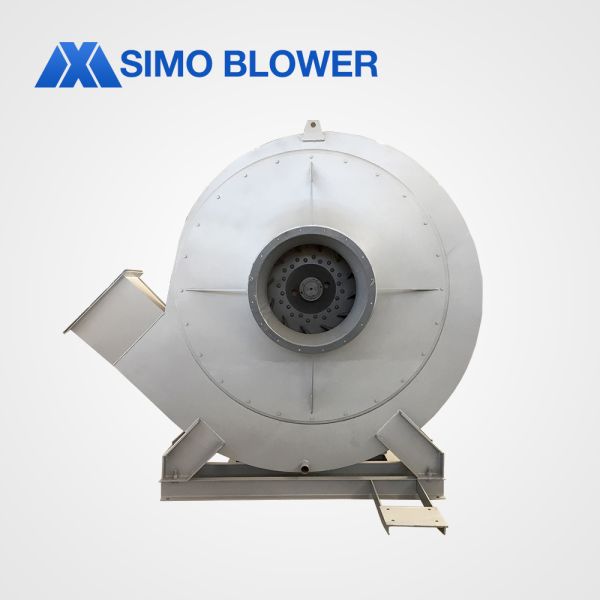

High-pressure Centrifugal Fans for High-Temperature Gas Conveyance
Product Overview

Our high-pressure centrifugal fans are custom-engineered for reliable conveyance of high-temperature gases in demanding industrial applications. Built with heat-resistant materials and specialized cooling systems, these fans maintain structural integrity and stable performance when handling gas temperatures up to 600°C.

Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Key Features
  • Capable of outputting very high pressure and operating at elevated medium temperatures
  • Simple installation with common base, requiring minimal technical support
  • Bearing box pre-equipped for temperature and vibration sensor installation
  • Automatic motor load reduction to prevent burnout when airflow resistance increases
  • Customized design optimized by CFD technology for lower energy consumption
  • Precision parts matching with excellent sealing performance to maintain output pressure
  • Impeller calibrated to high standards for dynamic balance and stable operation
  • Comprehensive running tests and vibration value detection upon completion
  • Multiple part options available for customization
Performance Specifications
Series 9-10 Series Feature Selection
Performance Impeller Diameter 250-2000mm
Rotation Speed ≤4000rpm
Pressure Range 348-15425Pa
Flow Range 273-81858/h
Structure Blade Type Forward
Impeller Support SWSI, DWDI, Overhung type
Lubrication Method Oil bath, grease, lubrication oil station
Cooling Method Air cooling, Water cooling, Oil cooling Can be specified
Driven Mode Direct driven, Coupling driven, Belt driven Can be specified
Customization Options

Key customization options include heat-resistant alloy construction (stainless steel, Inconel), thermal barrier coatings, high-temperature bearing cooling (water-jacketed or forced lubrication), and expansion-compensated shaft seals.

Optional Parts

System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Contact Us to Get a Quote
Application Scenarios
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Process Flow
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Factory Photos
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
Packaging & Shipping
Customizable High-pressure Centrifugal Fan for High-temperature Gas Conveyance with Heat-resistant Materials
