Alumina calcining furnace equipped with high-efficiency centrifugal fan
Alumina calcining furnace equipped with high-efficiency centrifugal fan
Specifications
Brand Name :
SIMO BLOWER
Model Number :
5-10
Certification :
CE/ISO9001/ISO45001
Place of Origin :
CHINA
MOQ :
1
Price :
$500-1000
Payment Terms :
L/C, T/T, D/P
Supply Ability :
300sets 30days
Delivery Time :
35days(To be negotiated)
Packaging Details :
1.export wooden case packing 2.bare package with steel pallet 3.other export package
Product Name :
Alumina calcining furnace blower
Application :
Alumina calcining furnace
Material :
High-quality carbon steel/304/316, customizable
Air volume :
300000~700000m³/h
Pressure boost :
11000~12500Pa
operating temperature :
160℃
Voltage :
380V/415V/440V/660V/6KV/10KV
Size :
Customized
Power source :
Three Phase AC Motor
Bearing :
SKF/FAG/By your demand
Warranty :
1 Year
Description
Alumina Calcining Furnace Equipped with High-Efficiency Centrifugal Fan

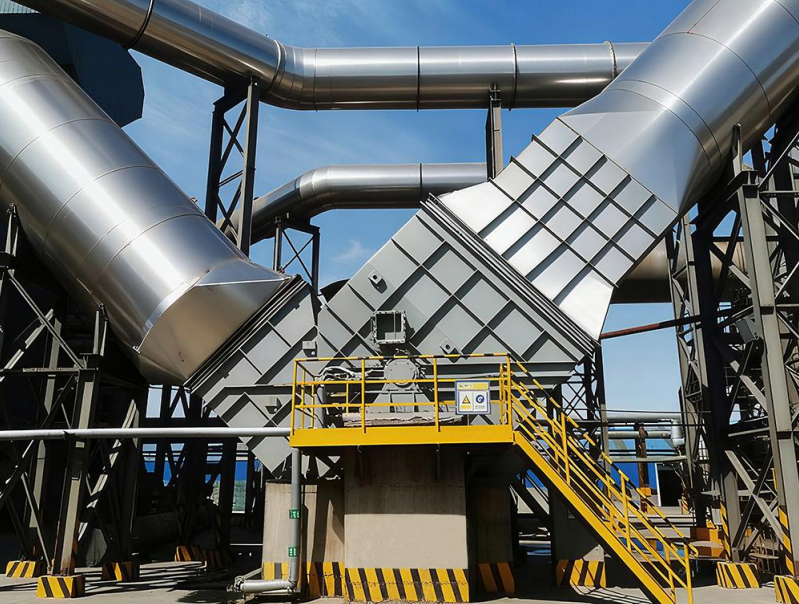

Specifically designed for Gas Suspension Calciner (GSC) or rotary kiln systems in alumina production, this fan provides stable and controllable high-temperature gas flow (air or flue gas) for the calcination of aluminium hydroxide, phase transformation, and efficient waste heat recovery. Operating continuously in a complex environment characterized by high temperatures (inlet temperatures up to 350-550°C), high dust concentration (containing fine alumina powder), and potential alkali corrosion, its performance directly determines the quality of the calcined product, the system's thermal efficiency, and operational energy consumption.
Alumina calcining furnace equipped with high-efficiency centrifugal fan
Features
Alumina calcining furnace equipped with high-efficiency centrifugal fan
The rearward-curved blades are highly efficient and energy-saving, do not easily accumulate dust, are wear-resistant, corrosion-resistant, and leak-free. The casing and air inlet adopt a reasonable split design, which facilitates fan maintenance.
Technical Specifications
Typical Performance Parameters Conveyed Medium Structural Type
Air volume: 300000~700000 m³/h
Air pressure: 11000~12500 Pa
Operating temperature: 160℃		 exhaust gas Double-support centrifugal type
Manufacturing Process
Alumina calcining furnace equipped with high-efficiency centrifugal fan
Application
Alumina calcining furnace equipped with high-efficiency centrifugal fan
Company Profile
Alumina calcining furnace equipped with high-efficiency centrifugal fan Alumina calcining furnace equipped with high-efficiency centrifugal fan
Related Cases
Alumina calcining furnace equipped with high-efficiency centrifugal fan
Frequently Asked Questions
Alumina calcining furnace equipped with high-efficiency centrifugal fan
