Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Glass production line equipped with induced draft fan
Specifications
Brand Name :
SIMO BLOWER
Model Number :
5-10
Certification :
CE/ISO9001/ISO45001
Place of Origin :
CHINA
MOQ :
1
Price :
$500-1000
Payment Terms :
L/C, T/T, D/P
Supply Ability :
300sets 30days
Delivery Time :
35days(To be negotiated)
Packaging Details :
1.export wooden case packing 2.bare package with steel pallet 3.other export
Product Name :
Exhaust fan for glass production line
Application :
Glass production line，Glass kiln flue gas treatment
Material :
High-quality carbon steel/304/316, customizable
Air volume :
180000~600000m³/h
Air pressure :
4150~7350Pa
operating temperature :
350℃
Dust content :
80~150g/Nm³
Voltage :
380V/415V/440V/660V/6KV/10KV
Size :
Customized
Power source :
Three Phase AC Motor
Bearing :
SKF/FAG/By your demand
Warranty :
1 Year
Description

Glass Production Line Equipped with Induced Draft Fan
Specially designed for various glass production lines such as float glass, photovoltaic glass, and specialty glass, this induced draft fan is the core power equipment for the exhaust gas treatment and waste heat recovery systems of critical sections like the melting furnace, tin bath, lehr, and raw material processing. The fan is primarily used to stably extract dust-laden, corrosive gases (e.g., SO₂, NOₓ, HCl, alkali metal vapors) and hot air from these high-temperature processes, conveying them to waste heat boilers, desulfurization/denitrification (SCR/SNCR) units, or bag filters. This ensures environmental compliance, efficient energy utilization, and process stability for the production line. It operates under complex conditions, requiring long-term resistance to high temperatures (300°C~500°C), corrosion, dust, and the severe challenges of hot starts and stops.
Key Features
  • The fan features backward-curved blades
  • High efficiency and energy saving
  • The impeller is made of high-temperature and wear-resistant materials
  • A mature thermal expansion structure design
  • Ensures long-term stable operation of the fan under high-temperature conditions
Technical Specifications
Typical Performance Parameters Conveyed Medium Structural Type

Air volume: 180000~600000 m³/h
Air pressure: 4150~7350 Pa
Operating temperature: 350℃

Glass furnace flue gas

 Double-support or cantilever-support centrifugal type
Manufacturing Process
Glass production line equipped with induced draft fan

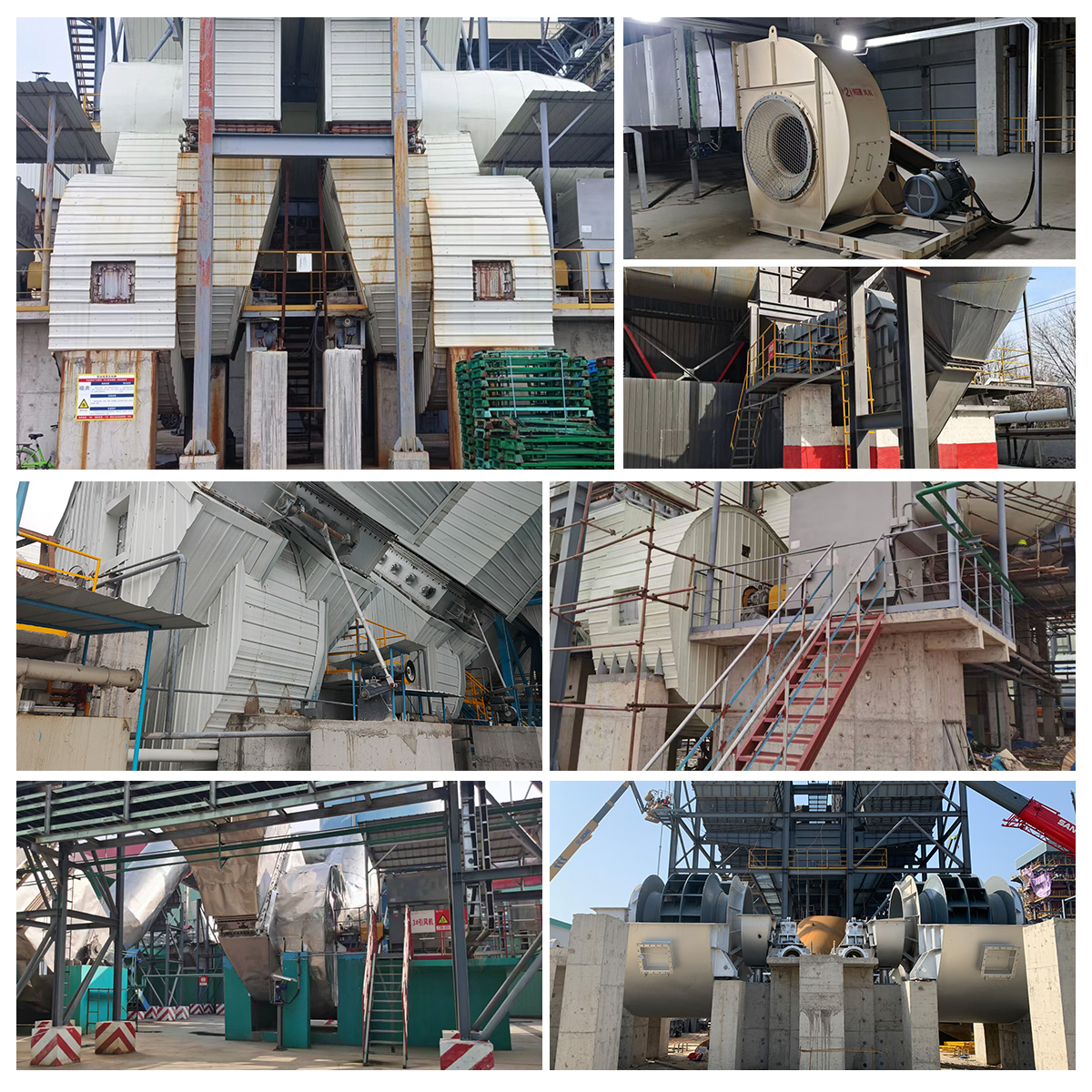

Application Examples
Glass production line equipped with induced draft fan
Company Profile
Glass production line equipped with induced draft fan Glass production line equipped with induced draft fan
Related Projects
Glass production line equipped with induced draft fan
Frequently Asked Questions
Glass production line equipped with induced draft fan
