Kiln head grate cooler clinker cooling fan
Kiln head grate cooler clinker cooling fan
Kiln head grate cooler clinker cooling fan
Kiln head grate cooler clinker cooling fan
Specifications
Brand Name :
SIMO BLOWER
Model Number :
4-10
Certification :
CE/ISO9001/ISO45001
Place of Origin :
CHINA
MOQ :
1
Price :
500-1000$
Payment Terms :
L/C, T/T, D/P
Supply Ability :
300sets 30days
Delivery Time :
35days(To be negotiated)
Packaging Details :
1.export wooden case packing 2.bare package with steel pallet 3.other export
Product Name :
Kiln head grate cooler clinker cooling fan
Application :
Grate cooler cooling, Clinker cooling
Material :
High-quality carbon steel/304/316, customizable
Air volume :
45000~180000m³/h
Air pressure :
4500~20000Pa
operating temperature :
20℃
Voltage :
380V/415V/440V/660V/6KV/10KV
Size :
Customized
Power source :
Three Phase AC Motor
Bearing :
SKF/FAG/By your demand
Warranty :
1 Year
Description
Kiln head grate cooler clinker cooling fan

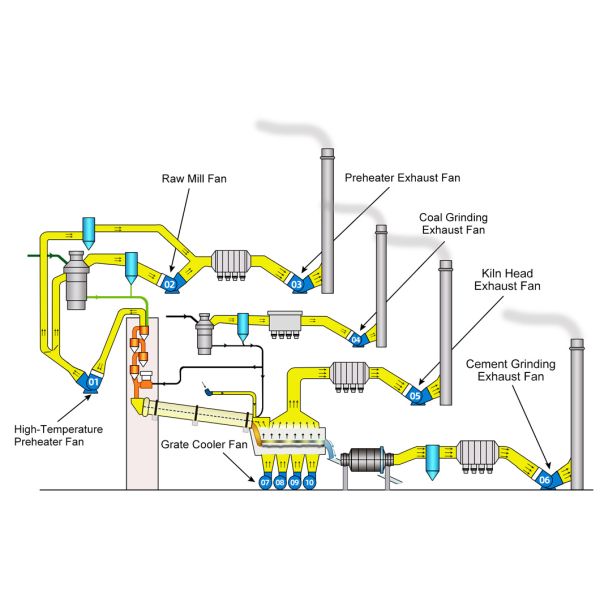

Grate cooler cooling fans are used to cool clinker in the kiln head grate cooler. The number of fans varies from 5 to 18 depending on the production line scale. High-pressure fans are a commonly used type of fan. Xima blowers' high-pressure fans are known for their stable performance, compact design, easy installation, and simple operation. They have been used in the cooling systems of hundreds of industrial rotary kilns, with over 1000 units in operation.
Kiln head grate cooler clinker cooling fan
Key Features
Kiln head grate cooler clinker cooling fan

Backward-curved blades, highly efficient and energy-saving, with a flat performance curve and a wide adjustment range in the high-efficiency zone. The integrated fan base facilitates installation and maintenance.

Technical Specifications
Typical Performance Parameters Conveyed Medium Structural Type

Air volume: 45000~180000 m³/h
Air pressure: 4500~20000 Pa
Operating temperature: 20℃

 Air Cantilevered centrifugal type
Manufacturing Process
Kiln head grate cooler clinker cooling fan

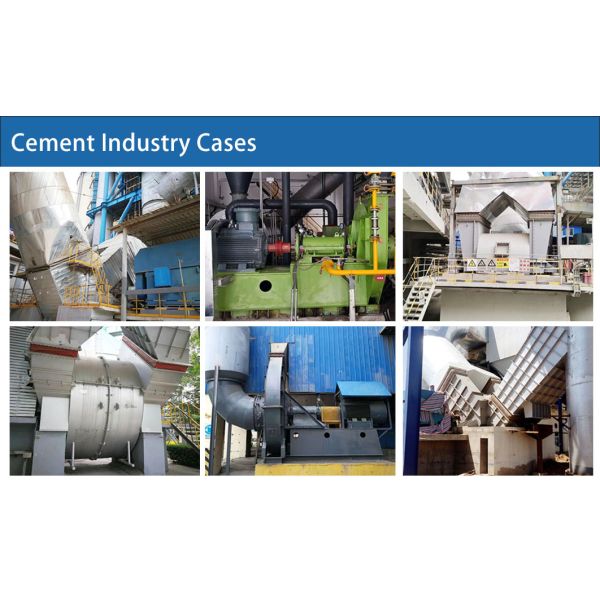

Application Examples
