C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
C Type Belt Driven High Efficiency Centrifugal Fan
Specifications
Brand Name :
SIMO
Model Number :
SIMO Blower 4-10
Certification :
CE, ISO
Place of Origin :
Henan China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Payment Term Is Negotiable
Supply Ability :
500 Sets Per Month
Delivery Time :
30-35 Days
Packaging Details :
Export Wooden Case Packing, Steel pallet Packing
After-sales Service Provided :
Engineers available to service machinery overseas
Application :
Building ventilation, mine ventilation, smoke extraction, drying, clinker cooling, gas conveying, lightweight material conveying, industrial boiler systems
Blades :
Backward curve blade
Blade Number :
12
Characteristics :
Low pressure
Transmission method :
A (Direct motor drive), C (Belt pulley drive), D (Coupling drive), F (Intake box type coupling drive)
Impeller Testing :
Dynamic blancing adjusting
Cooling Type :
Air cooling/Circulating Water cooling
Description

C-type belt-driven high-efficiency centrifugal fan

Product description

Our C-type belt-driven centrifugal fan delivers reliable, high-efficiency performance for a wide range of industrial ventilation and process air applications. The belt-drive configuration offers flexible speed adjustment, allowing precise matching of fan performance to system requirements while reducing starting torque on the motor. Features include precision-engineered impellers with aerodynamic blade profiles for optimal efficiency, dynamically balanced rotating assemblies for smooth, low-vibration operation, and heavy-duty bearing systems for extended service life. The C-type arrangement provides convenient access for maintenance and belt adjustment. Constructed from durable materials with robust welded housings, these fans ensure long-term reliability in continuous-duty environments. Available in multiple sizes with customizable options including various material grades, inlet/outlet configurations, and accessory packages (inlet dampers, outlet guards, vibration isolators). Ideal for industrial ventilation, exhaust systems, material handling, and general air movement applications requiring dependable performance and operational flexibility.

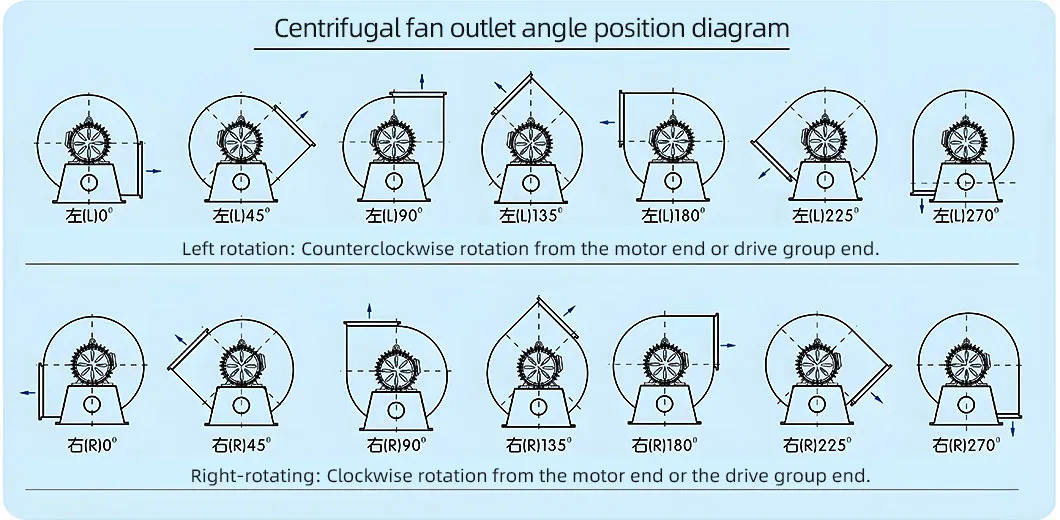

Product structure

C Type Belt Driven High Efficiency Centrifugal Fan

C Type Belt Driven High Efficiency Centrifugal Fan

Product parameters

series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
4-10 8C 1450 2104～1400 16156～30993 18.55
9C 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10C 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11C 730 ~ 1450 669 ~ 4003 21144 ～ 80570 11 ~ 90
12C 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14C 730 ~ 1450 1086 ~ 6541 43591 ～166100 37 ~ 315
16C 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18C 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20C 580 ~ 960 1400 ~ 5837 100970 ～ 320610 110 ~ 520
22C 480 ~ 960 1216 ~ 6865 116000 ～ 434000 140 ~ 850
25C 480 ~ 730 1579 ~ 5138 171000 ～ 484000 165 ~ 700
28C 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5C 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600

Our Advantages

C Type Belt Driven High Efficiency Centrifugal FanC Type Belt Driven High Efficiency Centrifugal FanC Type Belt Driven High Efficiency Centrifugal Fan

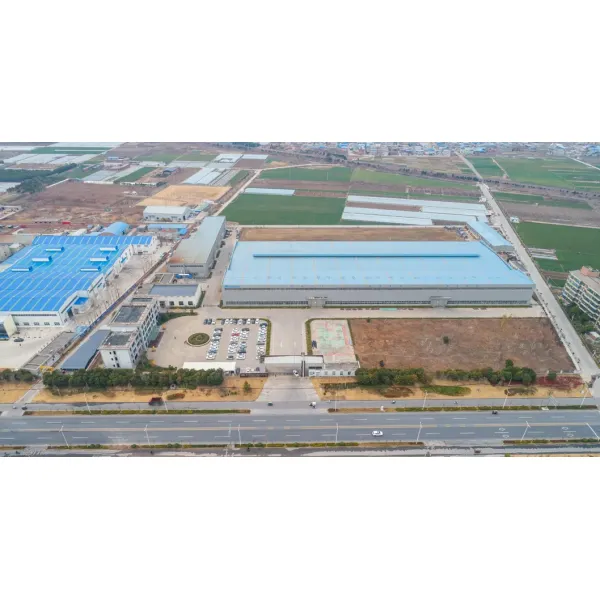

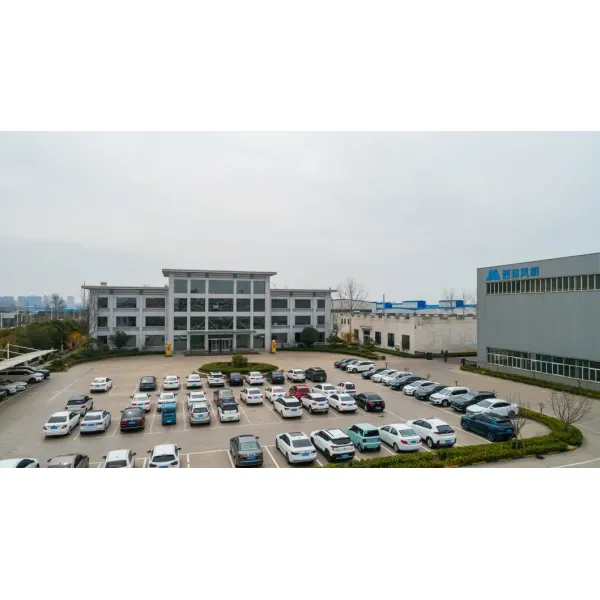

Company Profile

C Type Belt Driven High Efficiency Centrifugal FanC Type Belt Driven High Efficiency Centrifugal Fan

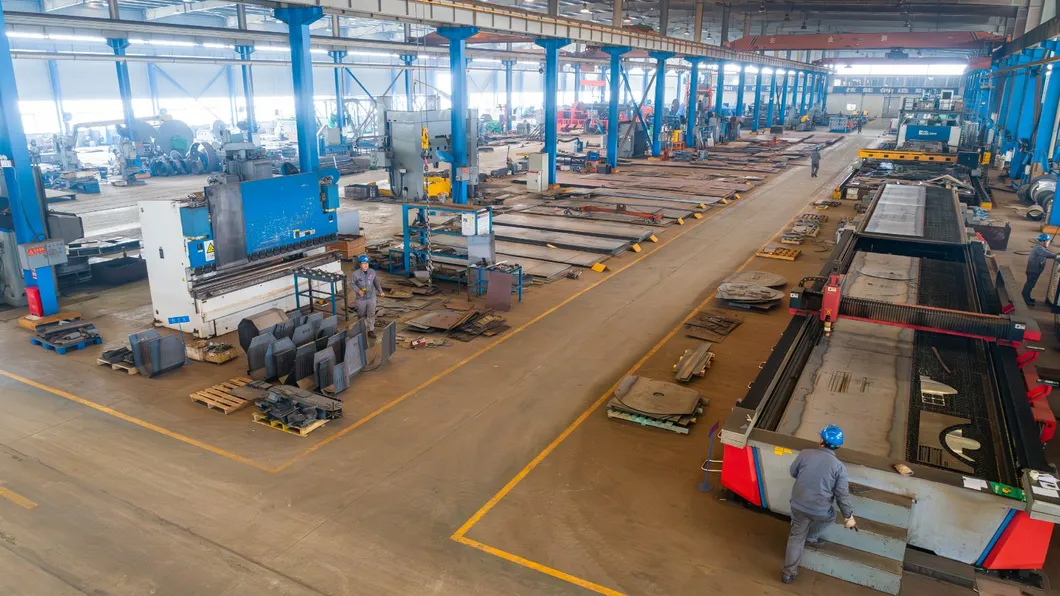

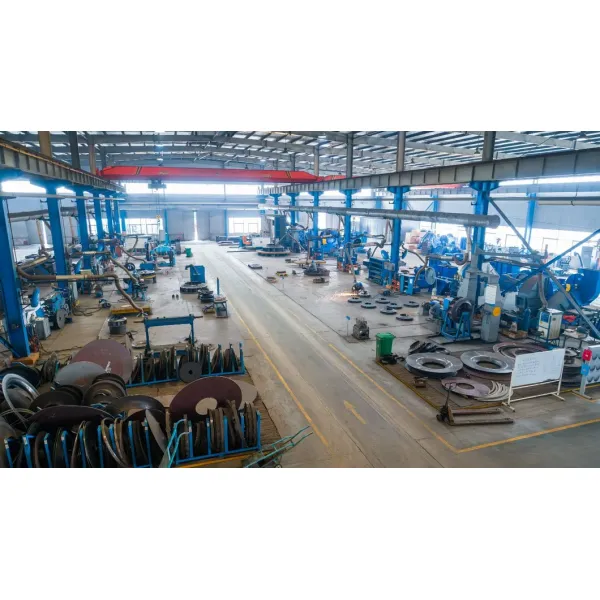

Factory Scene
C Type Belt Driven High Efficiency Centrifugal FanC Type Belt Driven High Efficiency Centrifugal FanC Type Belt Driven High Efficiency Centrifugal FanC Type Belt Driven High Efficiency Centrifugal Fan
Packaging & Shipping

C Type Belt Driven High Efficiency Centrifugal Fan

FAQ

C Type Belt Driven High Efficiency Centrifugal Fan

C Type Belt Driven High Efficiency Centrifugal Fan
