Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Customized high-efficiency centrifugal fans for aluminum plants
Specifications
Brand Name :
SIMO BLOWER
Model Number :
4-10
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$10000-5,0000.00/set
Payment Terms :
L/C,T/T
Supply Ability :
300sets 30days
Delivery Time :
35days (To be negotiated)
Packaging Details :
1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement
Impeller diameter :
2000-3150mm
Rotation speed :
≤960rpm
Pressure range :
1510-5680pa
Flow range :
10696-952530㎥/h
Voltage :
440V 10KV
Product Name :
Boiler Fan
Description
Customized High-Efficiency Centrifugal Fans for Aluminum Plants
Our customized high-efficiency centrifugal fans are engineered to meet the unique ventilation, cooling, and emission control demands of aluminum production facilities. Designed to handle high-temperature gases, abrasive alumina dust, and corrosive chemical fumes, these fans provide reliable performance in critical processes such as smelting, electrolysis, anode baking, and casting.
Customized high-efficiency centrifugal fans for aluminum plants
Product Features
  • Stable operation at high temperatures with large gas flow output and low noise levels
  • Optimized fan blade placement angle for enhanced wear resistance and extended service life
  • Flexible pressure and flow adjustment via air damper or variable frequency motor speed control
  • High-strength material selection for impeller and main shaft including carbon steel, low-alloy steel, and high-temperature resistant alloys
  • Reduced investment and maintenance - fans with impeller diameters under 1400mm at normal temperature require no additional bearing cooling devices
Product Parameters
Series No. 4-10 Series Feature Selection
Performance Impeller Diameter 400-3000mm
Rotation Speed ≤4000rpm
Pressure Range 615-8302Pa
Flow Range 10696-952530m³/h
Structure Blade Type Backward, Straight, Aerofoil type
Impeller Support SWSI, DWDI, Overhung type
Lubrication Method Oil bath, grease, lubrication oil station
Driven Mode Direct driven, Coupling driven, Belt driven Can be specified
Cooling Method Air cooling, Water cooling, Oil cooling Can be specified
Optional Components
System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
Contact Our Technical Engineers for Custom Fan Solutions

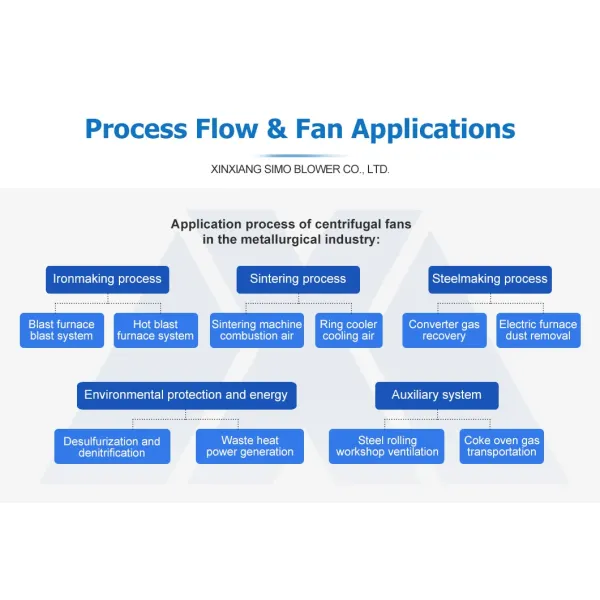

Applications
Customized high-efficiency centrifugal fans for aluminum plants

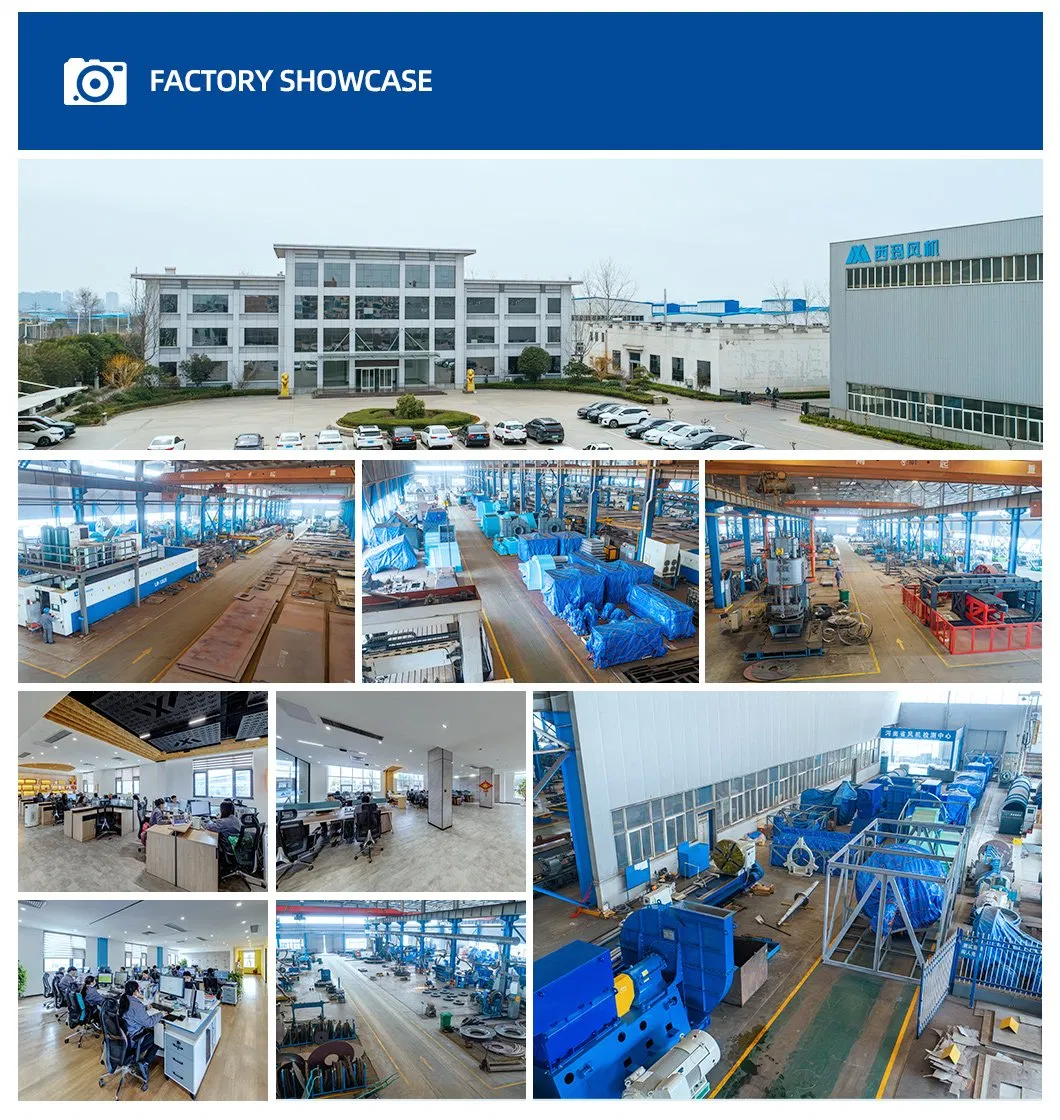

Company Profile
Customized high-efficiency centrifugal fans for aluminum plants Customized high-efficiency centrifugal fans for aluminum plants Customized high-efficiency centrifugal fans for aluminum plants Customized high-efficiency centrifugal fans for aluminum plants

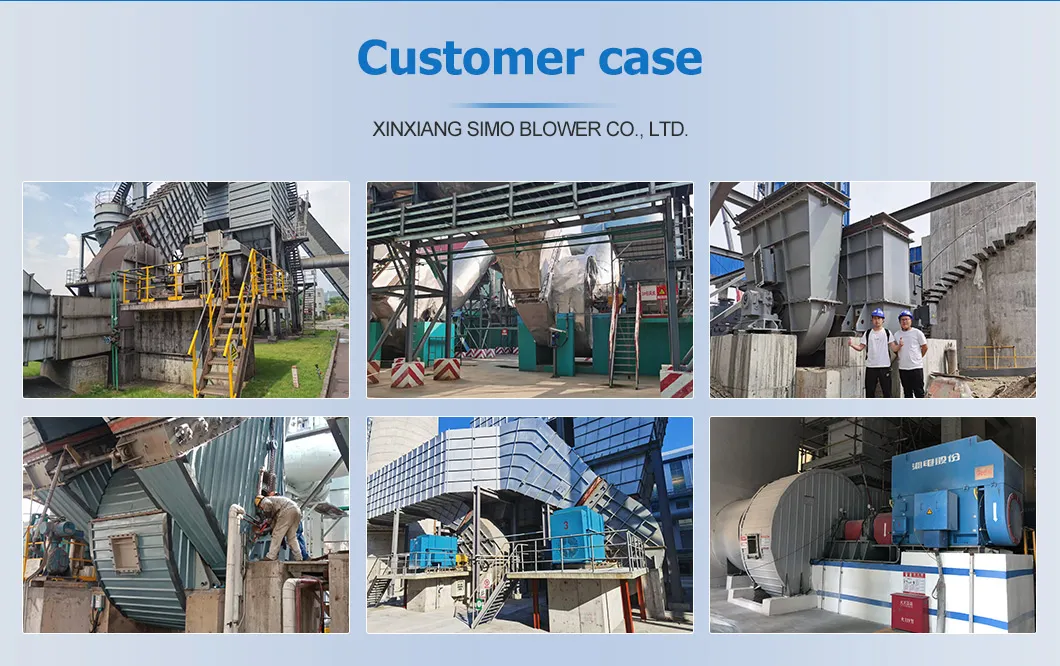

Customers and Cases
Customized high-efficiency centrifugal fans for aluminum plants Customized high-efficiency centrifugal fans for aluminum plants Customized high-efficiency centrifugal fans for aluminum plants Customized high-efficiency centrifugal fans for aluminum plants
Packaging & Shipping
Customized high-efficiency centrifugal fans for aluminum plants
Frequently Asked Questions
Customized high-efficiency centrifugal fans for aluminum plants
