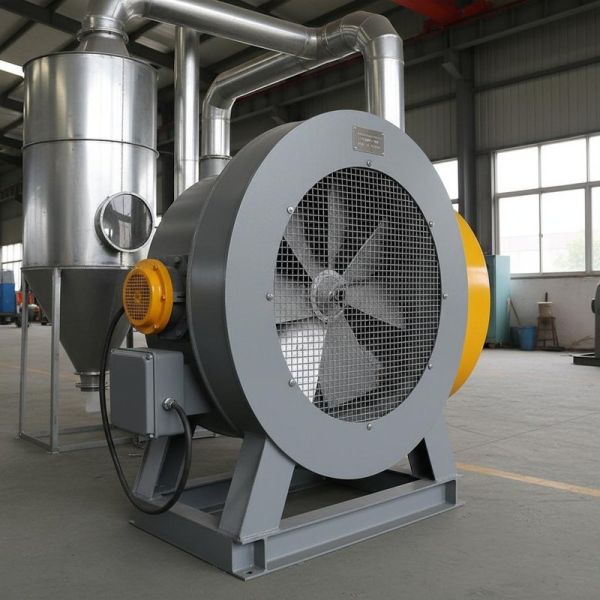

Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection
Specifications
Brand Name :
SIMO
Model Number :
SIMO Blower 4-14
Certification :
CE, ISO9001:2008,TUV
Place of Origin :
Henan China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Payment Term Is Negotiable
Supply Ability :
500 Sets Per Month
Delivery Time :
15-35 Days
Packaging Details :
Export Wooden Case Packing, Steel pallet Packing
Application :
Industrial Ventilation
Voltage :
380V/415V/440V/660V/6KV/10KV
Lubrication :
Oil bath lubrication
After-sales Service Provided :
Field installation, commissioning and training
Impeller Support :
SWSI (Single Width, Single Inlet), Impeller overhung
Power source :
Three Phase AC Motor
Description
Explosion-Proof Centrifugal Fan for Industrial Dust Collection Systems
Centrifugal Fan Introduction

This centrifugal fan is designed for industrial dust collection and ventilation systems where stable airflow and safe operation are required. It is suitable for handling air containing dust and fine particles under controlled industrial conditions. The single-suction structure ensures efficient air intake and stable pressure output across different operating ranges. The fan is widely applied in material handling, air purification, and industrial exhaust systems.

Technical Specifications
Series Model Rotation Speed (r/min) Total Pressure (Pa) Air Capacity (m³/h) Power (kW)
4-14 8C 1450 2177～1481 16985～30134 18.5
4-14 9C 960 ~ 1450 824 ~ 2756 16011～42906 11 ~ 30
4-14 10C 730 ~ 1450 588 ~ 3403 16701～58856 7.5 ~ 55
4-14 11.2C 730 ~ 1450 736 ~ 4276 23464～82688 11 ~ 90
4-14 12.5C 730 ~ 1450 912 ~ 5325 32619～114952 22 ~ 160
4-14 14C 730 ~ 1450 1147 ~ 6678 45827～161499 37 ~ 315
4-14 16C 580 ~ 960 951 ~ 3825 54351～159606 45 ~ 160
Key Features
  • Explosion-proof design for hazardous environments
  • Single-suction structure for efficient air intake
  • Stable pressure output across operating ranges
  • Suitable for dust and fine particle handling
  • Wide application in industrial ventilation systems
Product tags

blower for dust collector

,

industrial extractor fan

,

air extracting fan
