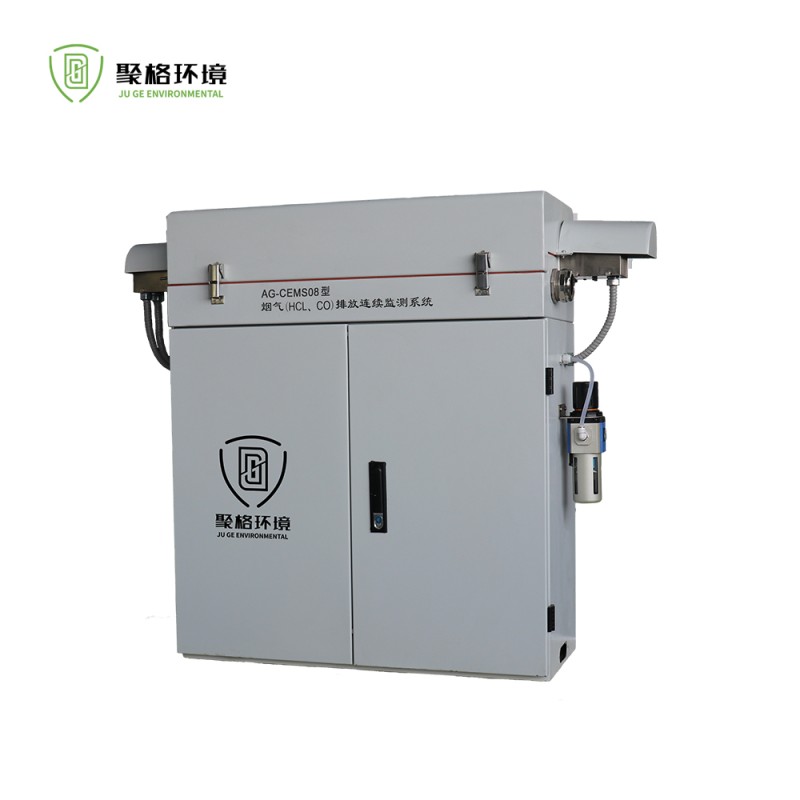

Extraction Type CEMS TDLAS Waste Incineration Gas Analyzer HCl CO Continuous Emission Monitoring System
Extraction Type CEMS TDLAS Waste Incineration Gas Analyzer HCl CO Continuous Emission Monitoring System
Specifications
24H Zero Drift and Range Drift :
≤±2%F.S.
Brand Name :
JUGE
1week Zero Drift and Range Drift :
≤±2%F.S.
Range :
0-100 ppm/mg/m3
Price :
USD10000-20000
Certification :
ISO9001 , CE
Payment Terms :
T/T,Online order
MOQ :
1 Unit
Delivery Time :
10-15 working days
Supply Ability :
100 Unit/Week
Packaging Details :
Neutral carton
Display Error :
≤±5%
Place of Origin :
Nanjing, China
Model Number :
AG-CEMS08
Drift :
≤±2.5%F.S
Product name :
CEMS for HCl CO
Description
Waste Incineration Gas Analyzer CEMS Monitoring Equipment HCl CO Continuous Emission Monitoring System
Product Overview

Designed for flue gas conditions after waste incineration, this industrial instrument provides continuous online measurement of SO2, NO, NO2, CO, CO2, O2, NH3, HCl, H2O, flow rate, pressure, temperature, particulate matter, and other components. Additional measurement components can be integrated based on user requirements.

Primarily applied in municipal waste incineration, hazardous waste incineration, medical waste incineration, sludge incineration, biomass boilers, thermal power plants, steel mills, and other high-temperature, high-humidity environments.

Key Features
  • Self-diagnosis and alarm function
  • Laser absorption spectroscopy with minimal background interference and fast response
  • High detection sensitivity and low resolution
  • Built-in long optical path design to solve interference issues
  • Low system maintenance cost and minimal maintenance requirements
  • High structural stability, adaptable to various environmental conditions
Main Technical Parameters
Parameter Category Specification
Working Condition
Power Supply 220VAC, <3kW
Sweeping Gas (0.4~0.6) MPA compressed air
Ambient Temperature -20ºC~55ºC
Performance Index
Light Path Length 760mm
Range 0~100 (ppm or mg/m³) (range-adjustable)
T90 Response Time <300 seconds
Reading Error ≤ ±5% (nominal value)
Repeatability ≤ ±2% F.S
Drift ≤ ±2.5% F.S
Protection Level IP55
Preheating Time 120min
Functional Parameters
Digital Output RS485
Analog Output 4-20 mA maximum load of 500Ω
Switch Output Load capacity: AC/DC 24V/1A; Backpack signal, low instrument wind pressure, abnormal temperature alarm, etc. (customizable)
Sample Gas Temperature <600ºC
Other Parameters
Sample Gas Pressure Atmospheric pressure of ±5 KPA
Sampling Traffic 2-3L/min
Ambient Temperature -10~55ºC
Ambient Pressure 70~120kpa
Outline Dimension (950H×1160L×325W)mm
Weight 120kg
System Composition
No. Name Model and Specification Quantity Unit
1 Pre-processing Cabinet Pre-treatment and control devices 1 Set
1.1 Analysis Cabinet 950H×1160L×325W mm 1 Set
1.2 Electromagnetic Valve DC24V, normally closed 2 Set
1.3 Injection Pump 8L/min 1 Set
1.4 High-temperature Precision Filter 0.2um 1 Set
1.5 Control Circuit Including automatic sampling, back-blowing, and temperature control 1 Set
1.6 High Temperature Cut-off Valve BTB-DN10, with a pneumatic valve 1 Set
2 Analytic System HCL, CO analyzer 1 Set
3 Heated-type Sampling Probe AG-TT07 1 Set
4 Sampling Heat Tracing Pipeline 60W/m 3 Set
5 Spare Part See the list of spare parts 1 Set
