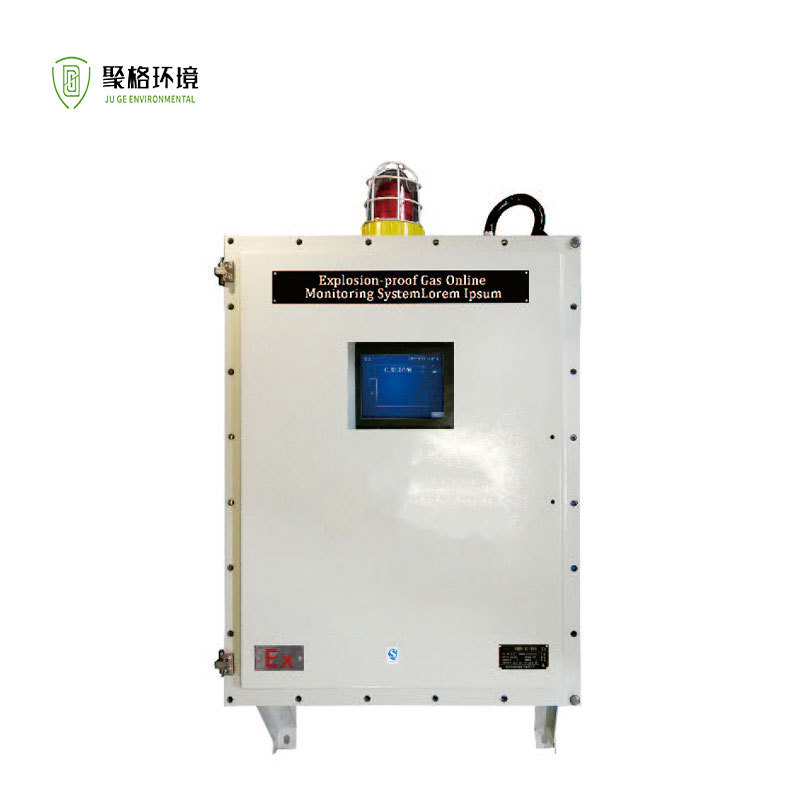

Explosion-proof Pump-suction Online Gas Monitoring System for Multiple Gas Detection
Explosion-proof Pump-suction Online Gas Monitoring System for Multiple Gas Detection
Specifications
Supply Ability :
100 Unit/Week
Packaging Details :
Neutral carton
Payment Terms :
T/T,Online order
Model Number :
AG8000
Delivery Time :
10-15 working days
Place of Origin :
Nanjing, China
Detect Gas :
OEM
Brand Name :
JUGE
MOQ :
1 Unit
Certification :
IOS9001, CE
Range :
OEM
Name :
Explosion-proof Gas Online Monitoring System
Price :
USD1000-5000
Description
Explosion-proof Pump-suction Combustible Gas Flue Gas Voc Toxic Oxygen Online Monitoring System
System Overview

This explosion-proof pump-suction monitoring system provides comprehensive gas detection capabilities for industrial applications, featuring advanced sensor technology and robust construction for reliable performance in demanding environments.

Key Features
  • Professional pretreatment system effectively purifies sample gas, eliminating measurement-interfering impurities to ensure accuracy
  • Internationally advanced sensors provide extended service life and superior anti-interference capability
  • Simultaneous monitoring of multiple gases with guaranteed data accuracy
  • Built-in detector supports 4-20mA and RS485 output signals with optional DTU and display screen configuration
  • Automatic heat dissipation system extends equipment service life
  • Available in standard and explosion-proof versions to meet specific safety requirements
Technical Specifications
Detected Gases Combustible gas, oxygen, flue gas, exhaust emissions, toxic and hazardous VOCs, etc.
Detection Principle Electrochemical, infrared, PID photoionization (principle varies by gas); other gases support customization
Detection Method Pump suction
Display Method 7-inch LCD color screen
Display Units ppm, mg/m³
Measurement Range 0-200 mg/m³ (optional; ranges not listed can be customized)
Resolution 0.1 mg/m³
Accuracy ≤3% FS
Operation Method Touch operation
Warm-up Time ≤90 seconds
Response Time T90 ≤90 seconds
Output Signal GPRS, 4-20 mA, RS485
Operating Humidity ≤95% RH, non-condensing
Operating Temperature -40°C ~ +60°C
Power Supply Voltage AC220V, 50Hz ±1%
Operating Pressure 86-106 kPa
Installation Method Wall-mounted, pole-mounted
Protection Rating IP54
