Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Specifications
Model Number :
4 FLUTES
Brand Name :
KEDEL
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$0.84-1.20
Material :
0.6um fine-grained tungsten carbide
Coating :
Balzers
Flute Count :
4
Shape :
Single-Thread
Helix Angle :
35°
Hardness HRC :
65°
Pitch Range :
M1.4*0.3 to M30*3.5
Cutting Diameter :
D1.05 to D16
Flute Length :
4mm to 50mm
Shank Diameter :
D4 to D16
Overall Length :
50mm to 90mm
Suitable Materials :
COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Thread Types :
M2, M3, M4, M6
Chip Flute :
4
Color :
Slivery
Description
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
parameter
value
Flutes
4
Chip Flute
4
Coating
Balzers
Shape
Single-Thread
Angle
35°
HRC
65°
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide

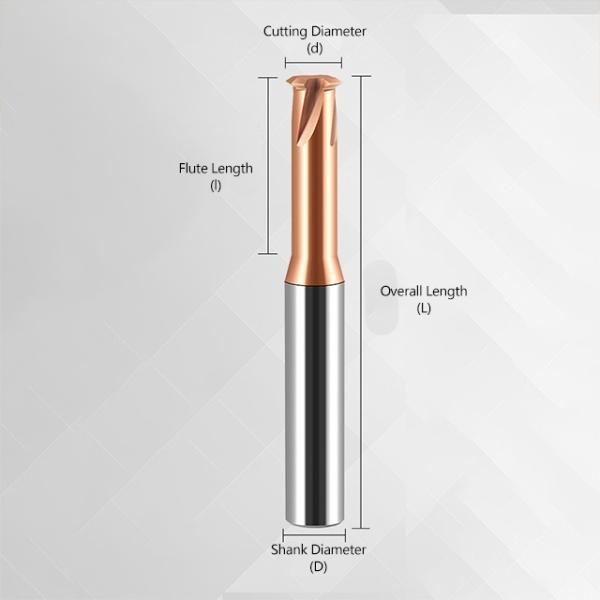

Number of Flutes
Pitch (mm)
Cutting Diameter
(mm)
Flute Length
(mm)
Shank Diameter
(mm)
Overall Length
(mm)

R
d
l
D
L






Three blades
M1.4*0.3
D1.05
4
D4
50
M1.6*0.35
D1.25
5
D4
50
M1.8*0.35
D1.4
5.6
D4
50
M2*0.35
D1.4
5.6
D4
50
M2*0.4
D1.54
6
D4
50
M2.5*0.45
D1.96
6.5
D4
50
M3*0.5
D2.4
8
D4
50
M8*0.5
D6
20
D6
50
M3.5*0.6
D2.75
10
D4
50
M4*0.7
D3.15
10
D4
50
M4.5*0.75
D3.5
12
D4
50
M8*0.75
D6
20
D6
50
M5*0.8
D4
12
D4
50
M6*1
D4.8
15
D6
50
M8*1.25
D6
20
D6
50
M10*1.5
D8
25
D8
60
Four blades
M14*1.5
D12
30
D12
75
M12*1.75
D10
30
D10
75
M14*2
D10
36
D10
75
M16*2
D12
45
D12
75
Five blades
M18*2.5
D14
48
D14
90
M24*3.0
D14
48
D14
90
M30*3.5
D16
50
D16
90
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
Single-Thread Milling Cutter with 35 Degree Helix Angle for M2, M3, M4, M6 Threads in 0.6um Fine-Grained Tungsten Carbide
