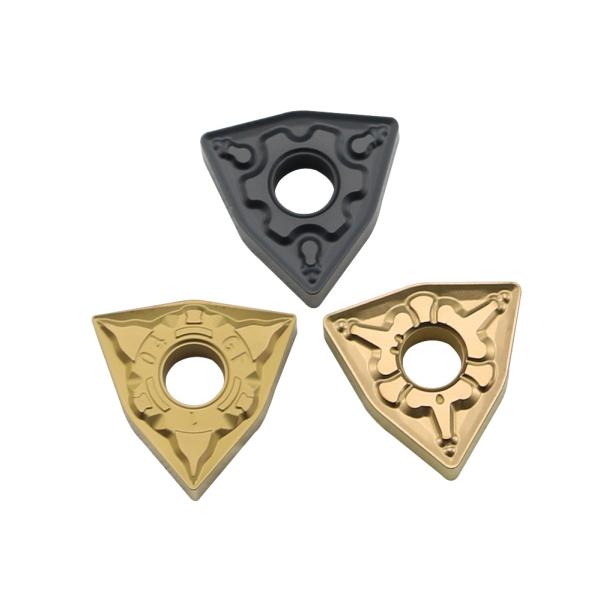

High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
Specifications
Model Number :
WNMG
Brand Name :
Kedel
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$0.70-1.60
Coating :
PVD
Hardness :
HRA90
Material :
Tungsten Carbide
Model :
WNMG
Angle W :
80°
Angle N :
0°
Tolerance M :
±0.08-±0.18
Hole type :
G
Chip breaker :
Double sided groove
Diameter S :
4.76 mm
Diameter ϕd :
3.81 mm, 5.16 mm
Radius r :
0.4 mm, 0.8 mm, 1.2 mm
Workpiece Material :
stainless steel, steel
HRC range :
45HRC, 55HRC, 60HRC, 65HRC
MOQ :
10 Pieces
Description

Automated processing

CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming.

High stability

This stability can mitigate issues such as cutting vibrations and uneven surface quality, thereby further enhancing the quality of the machining process.

Wide application fields

CNC tool inserts are suited for industries demanding high precision and efficiency, including machinery manufacturing, aerospace,
electronics, and more.

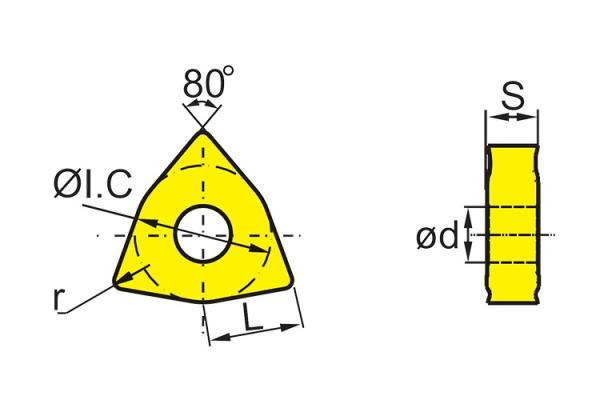

WNMG
Value
W
80°
N
0°
M
±0.08-±0.18
G
holes
Double sided chip breaker groove
Type
Dimensions(mm)
S
ϕd
r
WNMG060404-OPF
4.76
3.81
0.4
WNMG060408-OPF
4.76
3.81
0.8
WNMG080404-OPF
4.76
5.16
0.4
WNMG080408-OPF
4.76
5.16
0.8
WNMG060408-OPM
4.76
3.81
0.8
WNMG080404-OPM
4.76
5.16
0.4
WNMG080408-OPM
4.76
5.16
0.8
WNMG080412-OPM
4.76
5.16
1.2
WNMG080408-OPR
4.76
5.16
0.8
WNMG080412-OPR
4.76
5.16
1.2
WNMG060408-OMF
4.76
3.81
0.8
WNMG080404-OMF
4.76
5.16
0.4
WNMG080408-OMF
4.76
5.16
0.8
WNMG080404
4.76
5.16
0.4
WNMG080408
4.76
5.16
0.8
WNMG080412
4.76
5.16
1.2
WNMG060408-MF
4.76
3.81
0.8
WNMG080408-MF
4.76
5.16
0.8
WNMG080412-MF
4.76
5.16
1.2
WNMG060404-MSF
4.76
3.81
0.4
WNMG080404-MSF
4.76
5.16
0.4
