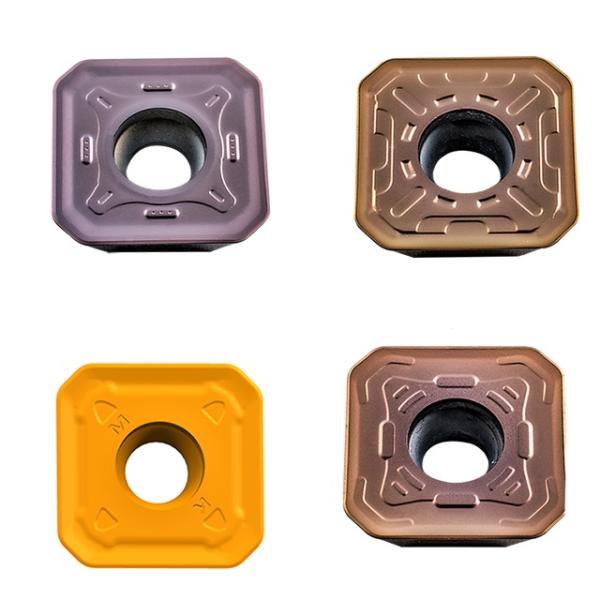

HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
Specifications
Model Number :
SEET
Brand Name :
Kedel
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$1-2
Coating :
PVD
Hardness :
HRA90
Material :
Tungsten Carbide
HRC :
45HRC, 55HRC, 60HRC, 65HRC
MOQ :
10 Pieces
Model :
SEET
Coating color :
PVD and CVD
Shape :
square
Angle :
20°
Tolerance :
±0.025
Chip breaker :
single-sided groove
Length (L) :
13.308mm, 13.4mm
Width (S) :
4.04mm, 3.97mm
Hole diameter (Φd) :
4.1mm
Corner radius (R) :
0.8mm, 2.55mm
Description

Automated processing

CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming.

High stability

This stability can mitigate issues such as cutting vibrations and uneven surface quality, thereby further enhancing the quality of the machining process.

Wide application fields

CNC tool inserts are suited for industries demanding high precision and efficiency, including machinery manufacturing, aerospace,
electronics, and more.
SEET
Value
S
square
E
20°
E
±0.025
T
holes
single-sided chip breaker groove
Type
Dimensions(mm)
L
ΦI#C
S
Φd
R
SEET12T3-OKM
13.308
13.308
4.04
4.1
0.8
SEET12T3-OPR
13.4
13.4
3.97
4.1
2.55
SEET12T3-OPF
13.4
13.4
3.97
4.1
2.55
SEET120308PER-OPM
13.308
13.308
4.04
4.1
0.8
SEET12T3-OPM
13.4
13.4
3.97
4.1
2.55
