2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
Specifications
Model Number :
2 FLUTES
Brand Name :
KEDEL
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$1.70-2
Flute count :
2
Material :
0.6um fine-grained tungsten carbide
Coating :
nACo4
Shape :
Ball
Helix angle :
35°
Hardness HRC :
60
Ball nose radius :
R0.1-R0.45
Shank diameter :
4
Overall length :
50
Chip flute :
2

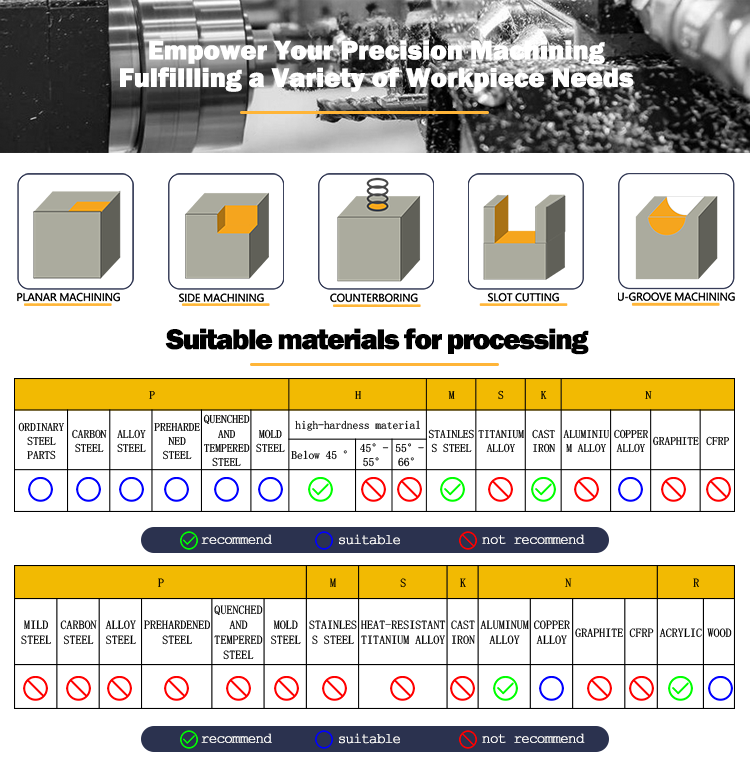

Suitable materials :
CAST IRON, COPPER ALLOY, ORDINARY STEEL PARTS, CHISEL TOOL STEEL
Color :
Slivery
Flute type :
Double blade
Angle :
35°
Grain size :
0.6um
Description
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
parameter
value
Flutes
2
Chip Flute
2
Coating
nACo4
Shape
Ball
Angle
35°
HRC
60°
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum

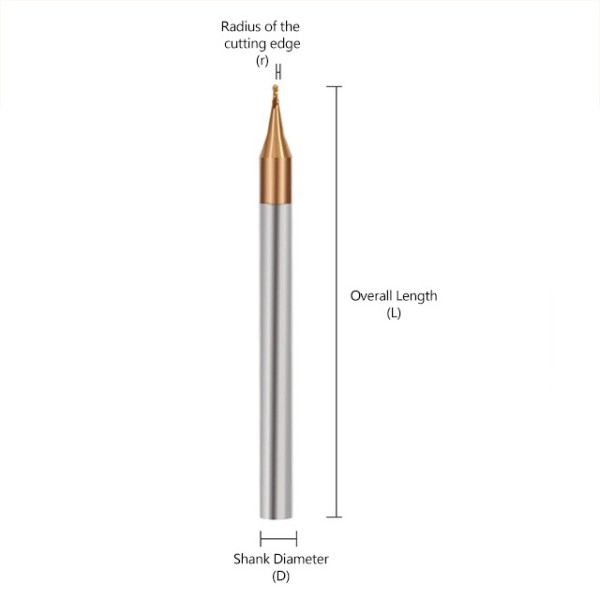

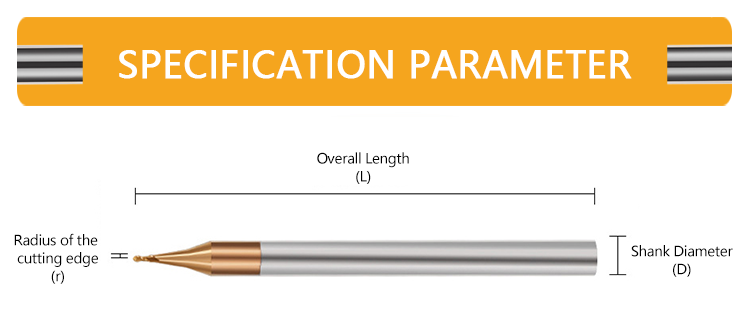

Number of Flutes
Ball Nose Radius
Shank Diameter
Overall Length
R
D
L











Double blade
R0.2
4
50
R0.3
4
50
R0.4
4
50
R0.15
4
50
R0.25
4
50
R0.35
4
50
R0.45
4
50
R0.2
4
50
R0.3
4
50
R0.4
4
50
R0.15
4
50
R0.25
4
50
R0.35
4
50
R0.45
4
50
R0.1
4
50
R0.1
4
50
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
