20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
Specifications
Brand Name :
Kedel
Model Number :
KD-8003
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$0.60 - $18.00 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product name :
Brazed Inserts Tips
Material :
100% Virgin Tungsten Carbide
Surface :
Sand-blasted Finished,Rough/well grinded
Application :
Cutting,drilling tools and so on
Advantage :
Durable
Size :
Available,OEM Accepted
Other name :
brazed blade,ISO brazed tips
Sample :
Available
Description

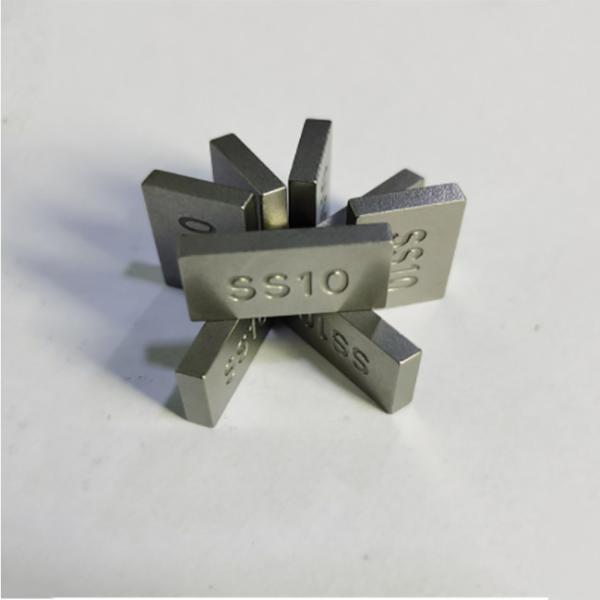

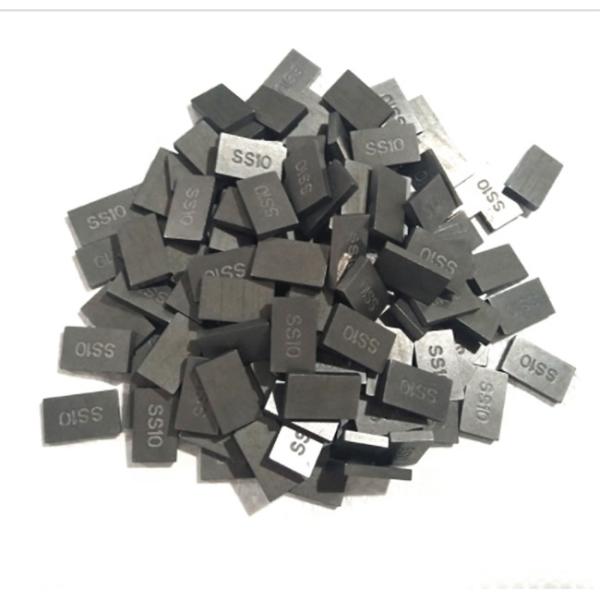

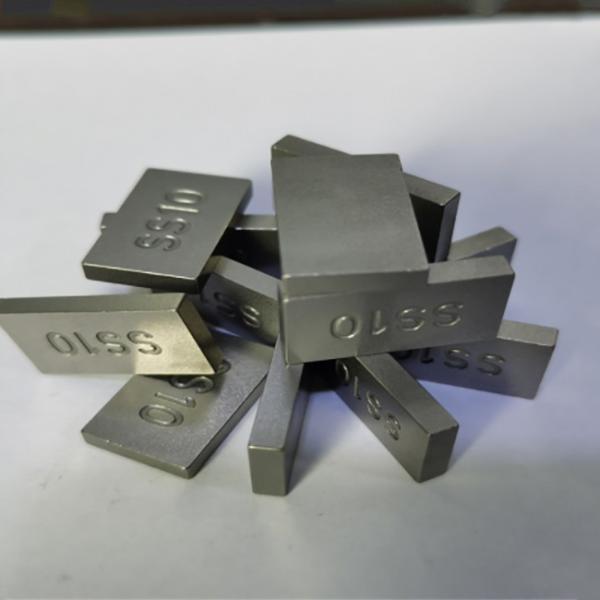

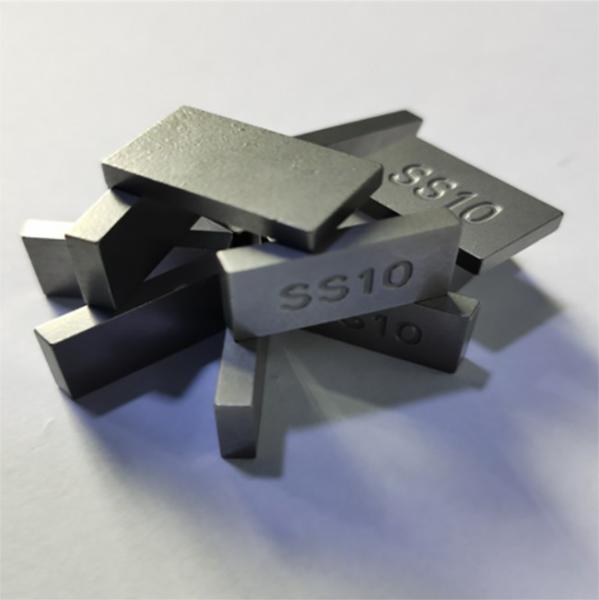

Size Of 20*12*3 Or 15*10*5 Carbide Cutting Tips SS10 For Quarry Stone

SS10 carbide tips to be welded onto the seats on the blades for stone cutting machines, it can be used for the processing of various kinds of stones, such as limestone, sandstone, tufa stone, granite etc.

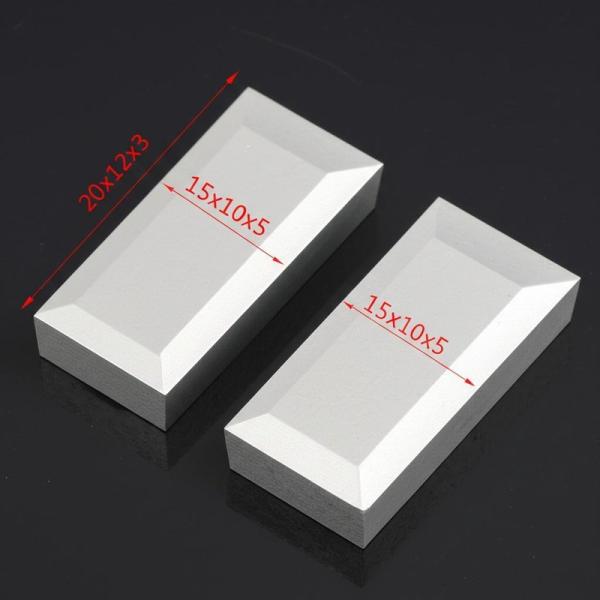

Rectangular shaped ss10 carbide tips:
  1. 20x12xT3.0 mm
  2. 20x12xT3.2 mm
  3. 20x12xT3.5 mm
  4. 20x12xT4.0 mm
SS10 carbide tips with a sharp tip:
  1. 15x10x5 mm
  2. 14x10x4 mm
Advantage:
  • High quality & 100% virgin raw material with stable properties and long working life;
  • Dark grey surface with hot sale at Kenya, Egypt and Libya market;
  • Precision dimensions with good unit weight and size accuracy;
  • Various sizes and types for your choice;
  • Longstanding old customers with over tons export amount every month.
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting 20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting 20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
Basic grades of tungsten carbide saw tips
ISO Grade Co% Density(g/cm3) Hardness Bending Strength(N/mm2) Grain Size(μm) Suitable for
HRA (ISO3738)
K01 3 15 94.2 2750 0.6 Shaving board, density board, brass & aluminum alloy
K05 6 14.9 93.3 3200 0.6 Solid hard wood, plywood boar, MDF
K10 6 14.8 92 3200 0.8 Hard wood(excelent performance grade)
K20 7 14.9 91 2600 1.2 Ordinary wood and plasticmaterial
K30 8 14.8 90 2700 1.2 For ordinary aluminum
M30 12 13.0 91 2400 0.8 For angle steel, stainless steel and normal steel, like C45
M40 12 13 90 2400 1.4 Metallurgical saw blade only
Production Facility
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
Quality Control
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
Product Exhibition
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
Exhibition Showcase
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
20x12x3mm Tungsten Carbide Brazed Tips SS10 for Stone Cutting
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.
