Specifications
Brand Name :
Kedel
Model Number :
KD-4001
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$0.60 - $18.00 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product Name :
carbide wearing teeth
Material :
WC+CO
Grade :
YG8 YG10,YG10X,YG11C
Usage :
drilling parts
Hardness :
89.5-92.0
Features :
high strength, good wear resistance
Service :
OEM,ODM
Surface :
rough or polished
Description

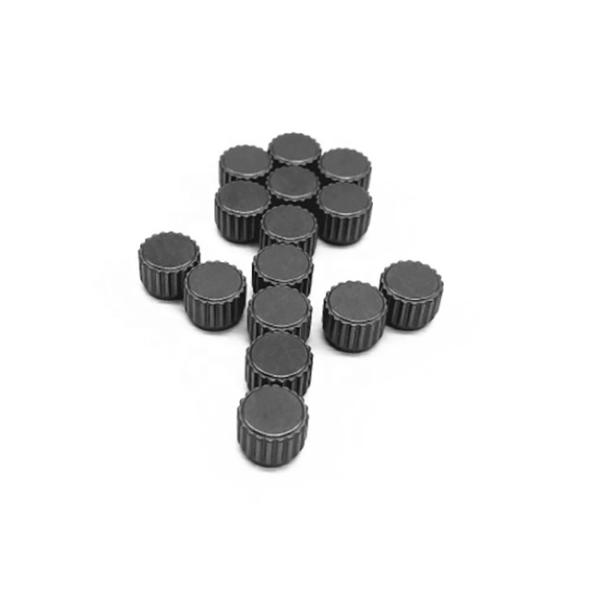

Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits
Premium Tungsten Carbide Wear Parts for Drilling Applications

High-performance serrated button teeth designed for oil mining drilling bits, offering exceptional wear resistance and durability in demanding drilling operations.

Material Specifications

Manufactured using 100% virgin tungsten carbide material to ensure superior wear resistance and high impact resistance for extended service life.

Application

These carbide button tips are welded onto stabilizers to provide wear protection for oil-field and mining drill bits. Positioned around the drill bit, they prevent excessive wear on the outer diameter, significantly extending the bit's operational lifespan.

Available Grades

Multiple grade options available including K30, K40, YG8, KD8, YG9, with custom grades available upon request to meet specific drilling requirements.

Standard Dimensions
Type Diameter (mm) Height (mm)
SP07207 7.2 7
SP08207 8.2 7
SP09208 9.2 8
SP10208 10.2 8
SP14815 14.8 15
SP16215 16.2 15
SP17818 17.8 18
SP20217 20.2 17
Key Features
  • Manufactured from premium tungsten carbide material for stable performance and increased drilling yield
  • Available in extra grain sizes for enhanced impact resistance with reduced hot cracking and breakage
  • Precision ground and tumbled for uniform dimensions and smooth surfaces, facilitating easier mounting
  • HIP sintered for increased strength and extended service life
Tungsten Carbide Serrated Button Teeth 7.2x7mm for Oil Mining Drill Bits Tungsten Carbide Serrated Button Teeth 7.2x7mm for Oil Mining Drill Bits

Full range of types and specifications available. OEM & ODM services welcome. Custom dimensions and types available upon request.

Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.
