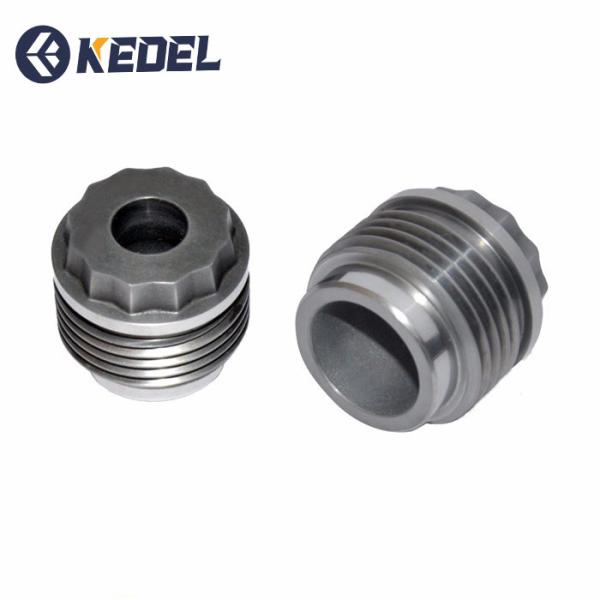

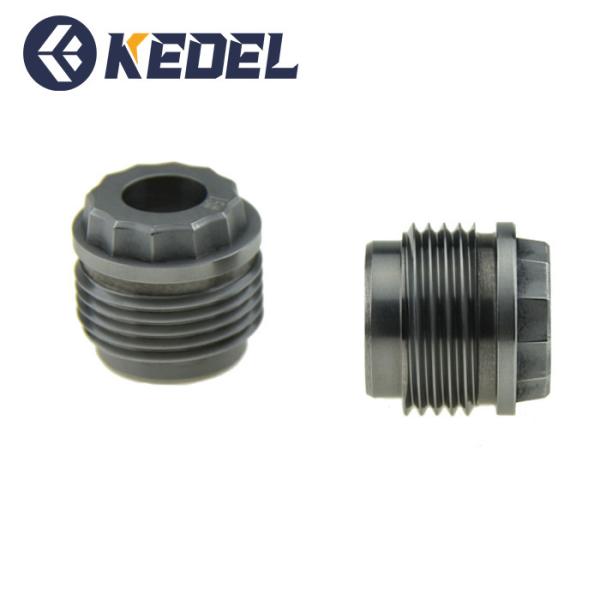

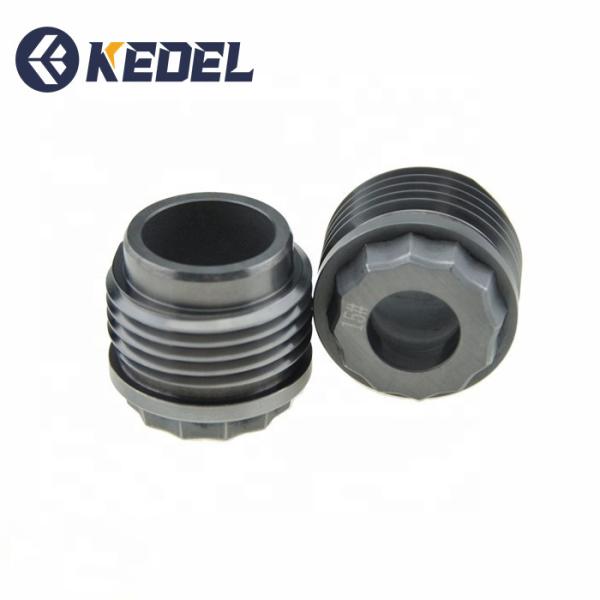

Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Specifications
Place of Origin :
Sichuan, China
Brand Name :
Kedel
Model Number :
YHA
Supply Ability :
1000000 Piece/Pieces per Week provide OEM service for thread nozzle
Packaging Details :
foam + small box + carton 100% Virgin Tungsten Carbide Ground Thread Nozzle
MOQ :
50 Piece/Pieces
Price :
$5.0 - $25.0 / Piece
Product name :
100% Virgin Tungsten Carbide Ground Thread Nozzle
Application :
Petroleum, Chemical and Mechanic Industry
Material :
Tungsten Carbide WC+Co
Size :
YHA
Type :
external hexagon alloy nozzle
Commodity Name :
Spherical Button Drill Bit
Grade :
YG8/YG15/YG6X/YG6/YG20
Certificate :
ISO9001:2008
Usage :
Oil Drilling Tools
Port :
Shanghai/Shenzhen
Description
Good Quality WC-Co Cemented Carbide Curved Anti-Friction Hydraulic Oil Spray Tricone Bit Nozzles For Oil Field
Product Specifications
Product Name 100% Virgin Tungsten Carbide Ground Thread Nozzle
Brand Kedel
Model YHA
Type Crossing slot/Inner hexagonal/Outter hexagonal/Cinquefoil/Triangular slot/Inner crossing
Material 100% Virgin Tungsten Carbide
Grade YG6/YG8/YG11/YG13
Usage Drill bit
MOQ 10 Pieces
Product Show
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Detailed Specifications
Model Pore Diameter (B)
MJP-LJA-2712 09# 7.14
Outer Diameter (A) 27.00 10# 7.95
Total Length (C) 25.40 11# 8.74
Thread (M) 1 1/16"-12UNF-2A 12# 9.53
Small Outer Diameter (D) 21.92 13# 10.31
Length (L) 4.75 14# 11.13
Inner Bore (E) 18 15# 11.91
Chamfer Angle (F*G) 0.67*30° 16# 12.7
Transition Arc (J) 12.7 17# 13.5
Transition Arc (K) 5 18# 14.29
- - 19# 15.08
- - 20# 15.8
- - 22# 17.48
Related Products
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide Button Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide Seal Ring Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide Sleeves
Company Profile

Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts. We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.

Production Equipment
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Quality Control Equipment
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
Product Exhibition
Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade Tungsten Carbide YHA Nozzle for Oil Drilling YG8 Grade
FAQ

  • 1. Are you trading company or manufacturer?

    A: We are manufacturer.

  • 2. Do you make customized products?

    A: Yes, we often make customized products.

  • 3. Do you provide free samples?

    A: We can provide free samples, but do not pay freight cost.

  • 4. How long is your delivery time?

    A: Generally 1-5 days if we have stock, 30 days if the product is customized.
