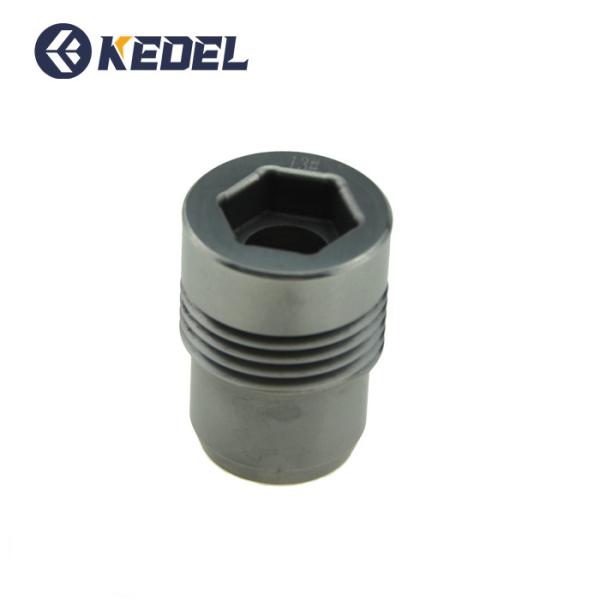

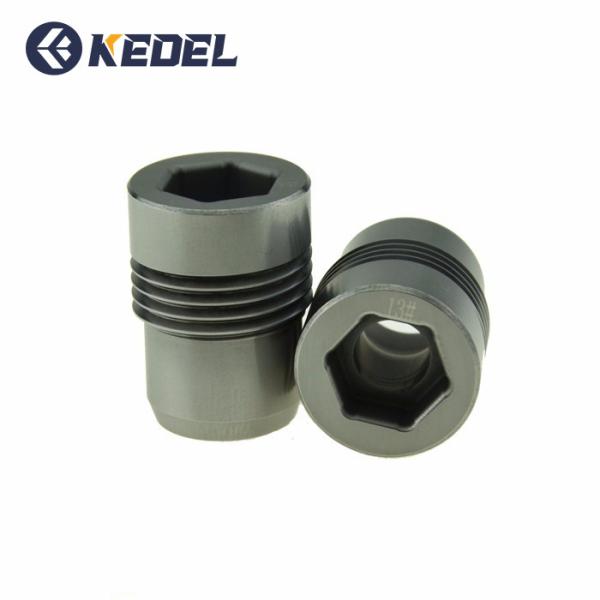

YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Specifications
Place of Origin :
Sichuan, China
Brand Name :
Kedel
Supply Ability :
1000000 Piece/Pieces per Week provide OEM service for tungsten carbide spray nozzle products
Packaging Details :
foam + small box + carton
MOQ :
20 Piece/Pieces
Price :
$5.0 - $35.0 / Piece
Model Number :
PZ4/PZ1/PZ2
Product name :
tungsten carbide spray nozzle
Application :
Petroleum, Chemical and Mechanic Idustry
Material :
Tungsten Carbide WC+Co
Surface :
Finished
Type :
Drill Bit nozzle
Grade :
YG8/YG15/YG6X/YG6/YG20
Certificate :
ISO9001:2008
Usage :
Oil Field Drilling Bit parts
Description
Customized Hard Metal Tungsten Carbide Super Hardness Downhole Drilling Water Blasting Nozzles
Product Description
Product Name Factory price spray tips tungsten carbide spray nozzle
Brand Kedel
Model PZ1/PZ2/PZ4
Type Crossing slot/Inner hexagonal/Outter hexagonal/Cinquefoil/Triangular slot/Inner crossing
Material 100% Virgin Tungsten Carbide
Grade YG6/YG8/YG11/YG13
Usage Drill bit
MOQ 10 Pieces
Product Show
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Model Pore Diameter (B)
MJP-LJA-2712 09# 7.14
Outer Diameter (A) 27.00 10# 7.95
Total Length (C) 25.40 11# 8.74
Thread (M) 1 1/16"-12UNF-2A 12# 9.53
Small Outer Diameter (D) 21.92 13# 10.31
Length (L) 4.75 14# 11.13
Inner Bore (E) 18 15# 11.91
Chamfer Angle (F×G) 0.67×30° 16# 12.7
Transition Arc (J) 12.7 17# 13.5
Transition Arc (K) 5 18# 14.29
- - 19# 15.08
- - 20# 15.8
- - 22# 17.48
Related Products
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Tungsten Carbide Button
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Tungsten Carbide Seal Ring
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Tungsten Carbide Sleeves
Production Equipment
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Quality Equipment
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Exhibition
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Company Profile

Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts. We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.

Our factory
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
Overseas Exhibitions
YG8 Tungsten Carbide Nozzle 7.14mm for Oil Field Drilling Bits
FAQ

1. Are you trading company or manufacturer?

A: We are manufacturer.

2. Do you make customized products?

A: Yes,we often make customized products.

3. Do you provide free samples?

A: We can provide free samples, but do not pay freight cost.

4. How long is your delivery time?

A: Generally 1-5 days if we have stock, 30 days if the product is customized.
