Specifications
Brand Name :
Kedel
Model Number :
TNMG160404
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
10 Pieces/ box
Price :
$0.7-3.5/PCS
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
10000 pcs per months
Delivery Time :
5-7 days
Packaging Details :
box +carton
Product name :
Carbide Turning Inserts
Coating :
CVD/PVD/TIAN /TLIAN /TIN etc,
Usage :
External Turning Tool
Hardness :
92HRC
Application :
Internal External Turning Inserts
Color :
Gray/golden/black
Grade :
K10-K30
Package :
Plastic Box+Wood Carton
Description

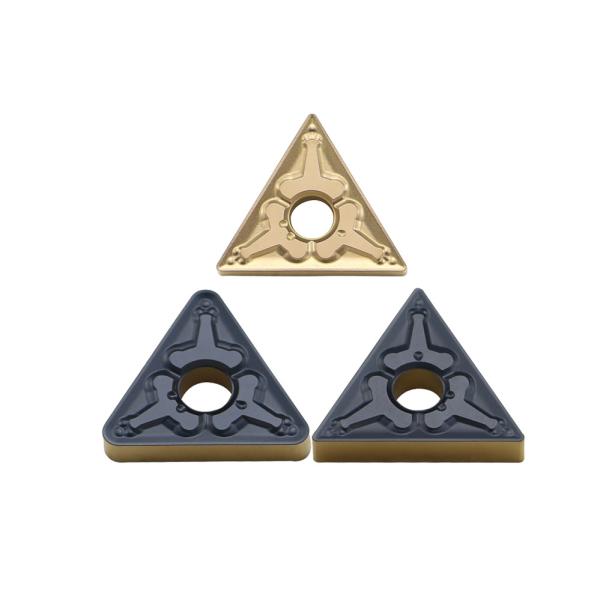

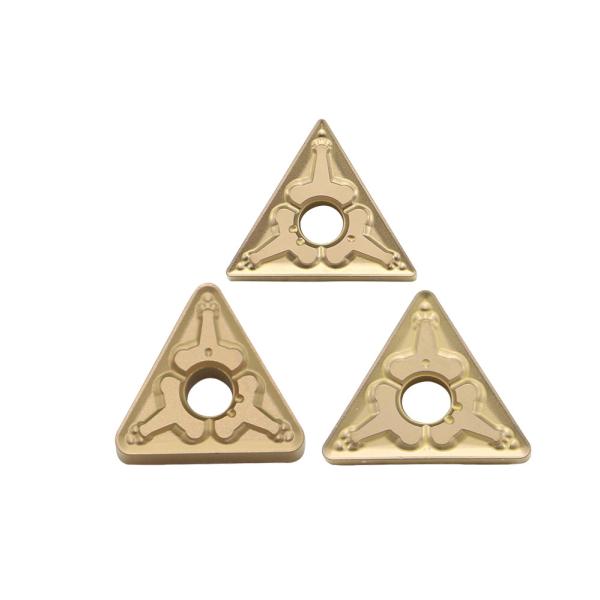

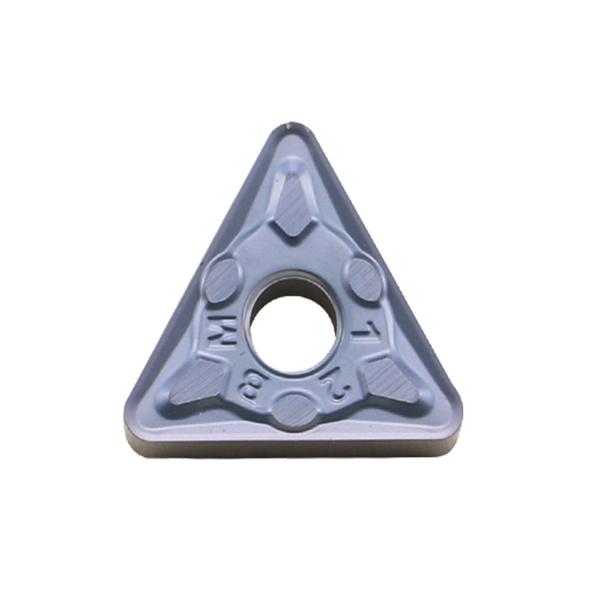

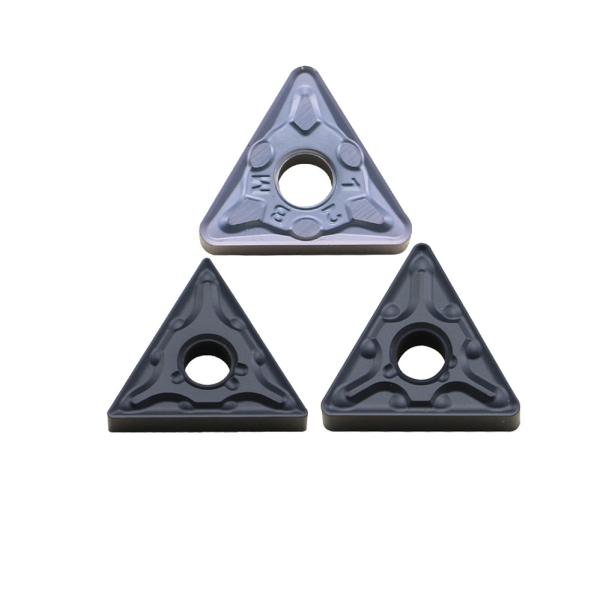

TNMG 160404 Carbide CNC Inserts External Turning Tools Metal Lathe Tools TNMG
Product Description

TNMG 160404 Carbide Inserts External Turning Tools CNC Metal Lathe Tools TNMG For Stainless Steel

Cemented carbide CNC T-series turning inserts are designed for mechanical lathe processing. These inserts feature a sharp blade, smooth chip breaking, excellent wear resistance, and durability. Ideal for machining steel parts, stainless steel, cast iron, aluminum alloy, and other materials. Resistant to tool sticking with extended service life.

Key Features
  • High wear resistance with superior surface finish
  • Precision coating for easy chip evacuation
  • Nanometer coating for exceptional performance
  • Sharp cutting edge for smooth operation
  • Steel material for easy handling
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
Product Specifications
Model TNMG160404/08/12 TNMG2204/08/12 TNMG270612
Grade KD2115, KD2125, KD3215
Workpiece Steel/Hardened Steel/Stainless Steel/Cast Iron
Coating CVD/PVD Coating
MOQ 10 PCS
Package 10 pcs in one box
Service OEM/ODM
Recommended Material Grades
Grade ISO Code Density (g/cm³) Hardness (HRA) T.R.S (MPa) Applications
YG3 K05 15.10 92.0 1400 Finishing of cast iron and nonferrous metal
YG6X K10 14.95 91.5 1800 Finishing & semi-finishing of cast iron, nonferrous metals, manganese steel, and hardening steel
YG6 K15 14.95 90.5 1900 Roughing of cast iron and light alloys, milling of cast iron and low-alloy steel
YG8 K20 14.80 89.5 2200
YW1 M10 13.10 91.6 1600 Finishing and semi-finishing of stainless steel and conventional alloy steel
YW2 M20 13.00 90.6 1800 Semi-finishing of stainless steel and low-alloy steel, machining of railway wheel hubs
YT15 P10 11.4 91.5 1600 Finishing and semi-finishing for steel and cast steel with moderate feed rate and high cutting speed
YT14 P20 11.6 90.8 1700 Finishing and semi-finishing of steel and cast steel
YT5 P30 12.9 90.5 2200 Heavy duty rough turning of cast steel with big feed rate at medium/low speed
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
Production Facility
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
Quality Control
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
Product Exhibition
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
TNMG 160404 Carbide CNC Inserts 92HRC for External Turning
Frequently Asked Questions
Are you trading company or manufacturer?

We are manufacturer.

Do you make customized products?

Yes, we often make customized products.

Do you provide free samples?

We can provide free samples, but do not pay freight cost.

How long is your delivery time?

Generally 1-5 days if we have stock, 30 days if the product is customized.
