Coal Gravimetric Hopper Chain Apron Feeder For Power Plant
Coal Gravimetric Hopper Chain Apron Feeder For Power Plant
Coal Gravimetric Hopper Chain Apron Feeder For Power Plant
Coal Gravimetric Hopper Chain Apron Feeder For Power Plant
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Product name :
Apron Feeder
Material :
Cast Steel
Material Feature :
Heat Resistant
Capacity(t/h) :
30-900t/h
Granule Size :
<1000mm
Suitable Material :
Cement, Coal, Gravel, Stone
Application :
Construction works, Mining, Power Plant, Metallurgical Industry
Warranty :
2 Years
After-sales Service Provided :
Field installation, commissioning and training
Description

Apron Feeder Coal Gravimetric Hopper Chain Apron Feeder For Power Plant

Product Description

An apron feeder for use in the heavy bulk materials industry includes a feeder frame, a head drive shaft, a pair of tail traction wheels, and a plurality of carry and return rollers. A pair of drive sprockets is mounted on the head drive shaft. The tail traction wheels are aligned with the drive sprockets, respectively.

These Apron Feeders are particularly well adapted to provide solutions for the conveying of moist and sticky bulk materials, such as clay, gypsum, anhydrite, and pozzolana among others, as the slightly arched plates of the Apron Feeder allow cohesive materials to be scraped off easily.

It enjoy the advantage such as traction, less leakage of material, operation smoothly, longer service life and maintenance easily.

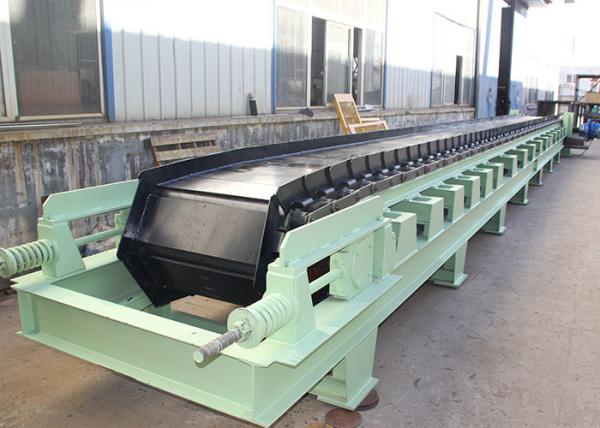

Photos View

Coal Gravimetric Hopper Chain Apron Feeder For Power Plant

Technical Parameters

Model Plate width Head to tail shaft center distance Speed Feed size Capacity Power Reference weight
(mm) (mm) (m/s) (mm) (t/h) (kw) (kg)
WBZ160-9 1600 9000 0.01-0.15 ≤1000 900 30 50000
WBZ180-8 1800 8000 0.01-0.15 ≤1000 ≤1000 37 59000
WBZ200-10 2000 10000 0.01-0.15 ≤1000 ≤1100 37 82000
WBZ220-10 2200 10000 0.01-0.15 ≤1200 ≤1200 45 85000
WBZ230-10 2300 10000 0.01-0.15 ≤1200 ≤1300 45 86000
WBZ240-10 2400 10000 0.01-0.15 ≤1600 ≤1400 2x37 95000
WBZ250-11.5 2500 11500 0.01-0.15 ≤1800 1500 2x45 105000

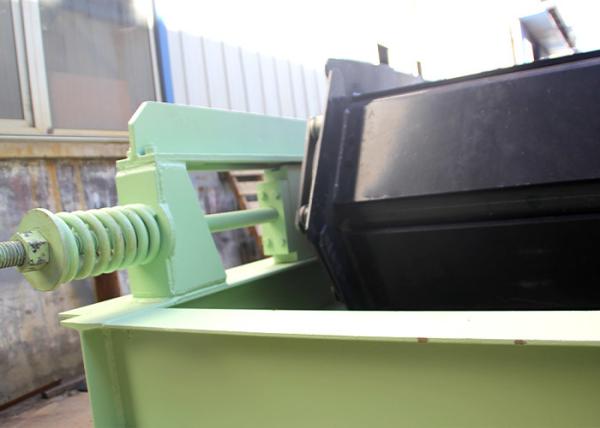

Details Show

Coal Gravimetric Hopper Chain Apron Feeder For Power Plant

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Coal Gravimetric Hopper Chain Apron Feeder For Power Plant

Application of Apron Feeder

  1. Ores
  2. Coal
  3. Limestone
  4. Clay
  5. Lime
  6. Natural and FGD gypsum
  7. Petcoke
  8. Aggregates

Coal Gravimetric Hopper Chain Apron Feeder For Power Plant
