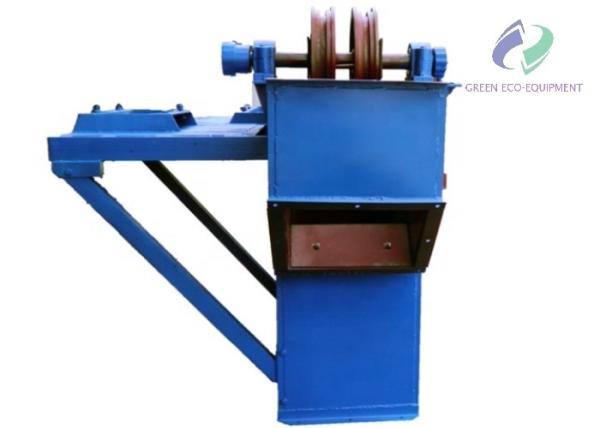

TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor
TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor
TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor
TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor
Specifications
Brand Name :
Green Eco-Equipment
Model Number :
TH
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Warranty :
2 years
Material Feature :
Heat Resistant
Suitable Material :
Cement, Coal, Chemical, Grain, Gravel, Sand
Hoisting Height :
According to client's requirement
Application :
Manufacturing Plant, Farms, Construction works , Energy & Mining
After-sales Service Provided :
Field installation, commissioning and training
Description

TH160 Ring-Chain Bucket Elevator Cement Silo Vertical Conveyor

Product Description

Ring-Chain Bucket Elevator Cement Silo Vertical Conveyor is designed and manufactured according to JB3926-85 Chinese standard . It is a kind of elevator used for vertically transporting bulk materials such as powder, pellet, particulate, even the materials with more surface friction, for example grain, coal, cement, granular ore, etc. It is widely used in the cement industry, chemical industry, power plant, grain storage and other industries, etc. Our company manufacture various type bucket elevator to meet your different demands.

Main Parameters

Model TH160
Bucket mode Zh Sh
Conveying capacity, m³/h 8 12
Bucket volume, L 1.2 1.9
Bucket width, mm 160
Bucket distance, mm 320
Bucket speed, m/s 1.25
Specification of chain φ14*50
Sprocket pitch, mm 400
Max. feed size, mm 18
Max. hoisting height, m 40

Zh: Medium-deep bucket: Used for conveying wet and viscous materials, such as sugar, wet fine sand, etc.

Sh: Deep bucket: Used for conveying dry, loose, easily thrown powder or small pieces of materials, such as cement, coal, gravel, etc.

Main Features

Type TH Type
Structural feature Use forged ring chain as traction components
Unloading mode Discharge by centrifugal or hybrid method
Applicable material Powdery, granular and small, non-abrasive or semi-abrasive materials with a loose density less than 1.5t/m³.
Hoisting height 4.5~40m
Applicable temperature The temperature of materials transported shall not exceed 250℃.
Others It’s completely enclosed, which can prevent dust from leakage, not be affected by the weather. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.Long service life, it seldom occurs extrusion and collision events.

Details Show

TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor

Package and Shipment

TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor

Project Case

TH160 Ring - Chain Cement Bucket Elevator Silo Vertical Bucket Conveyor
