Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Warranty :
1 year
Frame Material :
Carbon Steel/Stainless Steel
Belt Material :
PVC PU Rubber Steel Rubber
Flange Height :
120---160mm
Voltage :
220V/380V/As cuntomer's request
Material Feature :
Heat Resistant
Structure :
Belt Conveyor
Slant Angle :
Max. 90 degree
Dimension(L*W*H) :
As Customer's Request
Application :
Grain Storage, Mining, Cement, Coal Industries.
After-sales Service Provided :
Field installation, commissioning and training
Description

High Inclination Angle Belt Conveyor Inclined Belt Conveyor Belt Conveying System

Product Description

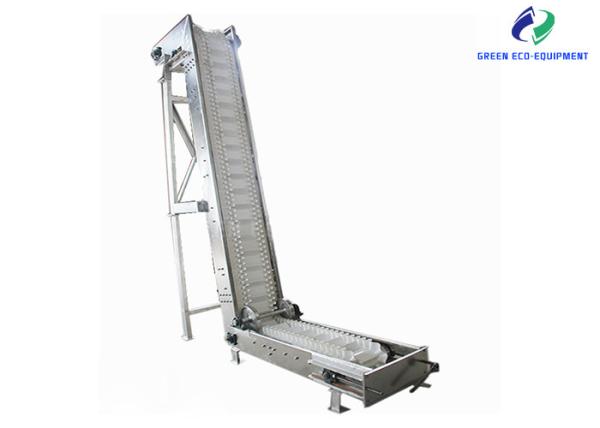

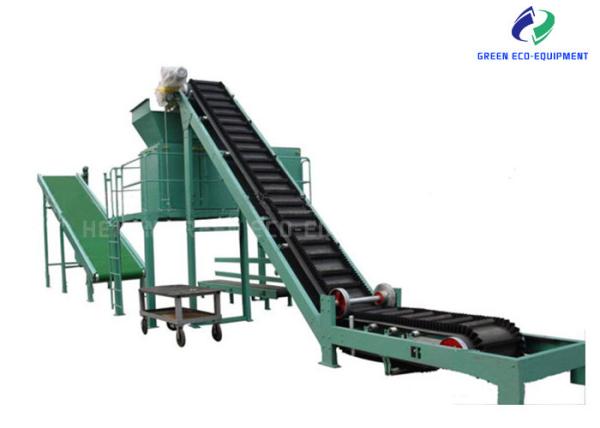

High inclination angle belt conveyor is also called large dip corrugated belt conveyor. Because of the large inclination which is 90 degrees vertical, it is an ideal equipment for achieving large angle conveying. It’s widely used in underground mining projects, open pit mining, large dump trucks, metallurgy, electricity, coal, foundries, construction, food, cement works, fertilizer, etc.

High Inclination Angle Industrial Belt Conveyor Heat Resisting Anti Corrosive

Main Features

1. Belt Conveyors can work at the ambient temperature between - 10 ℃ and 40 ℃.

2. Choose conveyor belt reasonably according to different temperature of material.The temperature is generally no higher than 60℃.

3. Heat-resisting type belt must be used when conveying materials with higher temperature


Main Parameters

Belt width Sidewall height Cleat pitch Slant angle
30° 40° 50° 60° 70° 90°
mm mm mm Capacity(m3/h) Speed of belt=1m/s
500 120 252 52 40 32 26 21 -
160 378 65 52 42 34 28 17
650 120 252 78 60 48 39 32 -
160 378 73 56 45 36 30 -
800 120 129 99 76 60 49 40 -
200 378 148 114 91 74 61 37
1000 160 378 129 99 79 64 52 -
240 504 229 176 141 - - -
1200 160 252 223 180 144 117 96 59
240 378 342 280 224 183 149 91
1400 200 252 299 231 185 151 123 75
240 378 422 345 276 225 184 113

High Inclination Angle Industrial Belt Conveyor Heat Resisting Anti Corrosive


Why choose us?

1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.
2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
4. Good after-sale service:
a. Provide installation plan guidance.
b. 2 hours for after-sales response, 24 hours for solution.

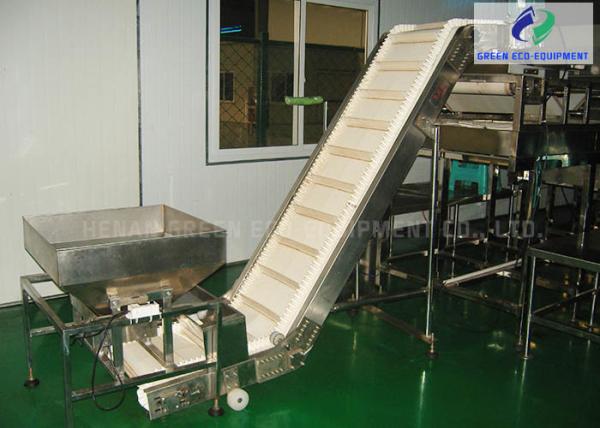

Field Usage
High Inclination Angle Industrial Belt Conveyor Heat Resisting Anti Corrosive
