Specifications
Brand Name :
OEM
Certification :
ISO9001
Place of Origin :
Zhejiang, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000sqm per month
Delivery Time :
15days after receiving deposit
Packaging Details :
10pcs/bag
Product :
PVC Wood Panels
Thickness :
5mm
Weight :
2.5kg/sqm-3kg/sqm
Printing :
Middle Groove Printing
Shape :
Flat; Slab
Feature :
Fire Retardant
Description

High Glossy Printing PVC Wood Panels For Hotel Lobby Ceiling Wall Cladding Decoration

PVC Wood Panels Introduction

  • Widely used in shcool, hospital, hotel and household.
  • Various kinds of colors and patterns for customer's choice.
  • Enviornmently friendly and stable longevity.
  • Easy installtion and maintenance.


PVC Wood Panels Advantages:


1. Fire retardant: Not easily burned, resistant to fire, not easily catch the fire

2. Waterproof-funtion: 100% waterproof pvc core, no wet trades required

3. Light and easy to fit

4. Heat insulation, thermal insulation

5. Aging-resistance: featuring high intensity, durable, working life could be 30 years

6. Wipe clean surface

7. Virtually maintenance free

PVC Wood Panels Installation:

1. Clean the surface of ceiling.

2. Nail wooden or steel battens(20mm - 30mm thick) into the wall and ceiling, with all the corners firstly, then on the plane with the distance of 400mm away between every wooden batten.

3. Screw PVC profiles(cornices) on all the corners, then insert the panel into the corner profiles, then the folling panel into the first panel.

4. Screw PVC second panel's notch side into the wooden or steel battens, then insert the third panel, then the fourth, and nail the fourth's notch side, then fifth and sixth, then...

5. Attention for the distance and notch side panel: for the ways above is based on 250mm or 300mm wide panels, and wooden or steel battens between distance is 400mm, so every 2 panel, screw the second notch. Surely you could change the ways as per your situation presently, by way of changing the distance of the panels and the wooden or stell battens.


PVC Wood Panels Quality Testing:

No. Test Items Technical Requirements Detection Result Single Judge
1 Appearance Fulfill Qualified
2 Flexibility mm/m <1.5mm/m 0.48 Qualified
3 Thickness mm Faceplate >0.4 0.4 Qualified
Base plate >0.3 0.32
4 Heating Rate % <6.0 0.6 Qualified
5 Heated State No bubble, craze or spot Fulfill Qualified
6 Resistance of acid No defects Fulfill Qualified
7 Dart drop impact 0.25kg/0.5m,10 times, Pass when keep unbroken above 6 times pass Qualified
8 Size Variation in High/Low Temperature ±0.6% -0.16 Qualified
9 Nail resistance no visible cracks Indehiscent Qualifie

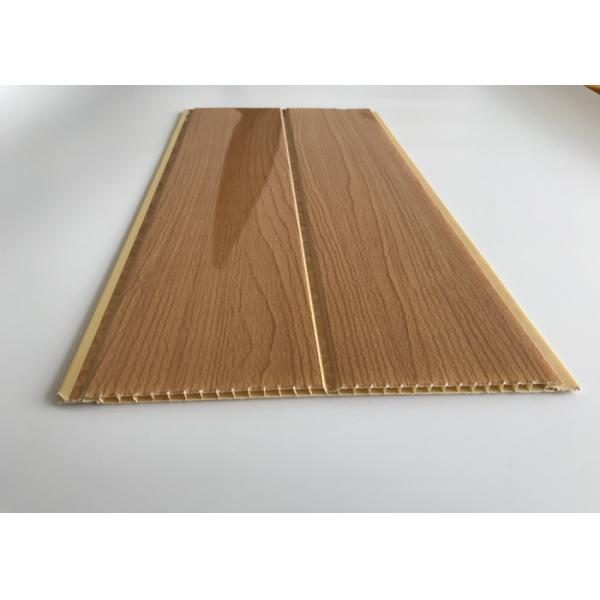

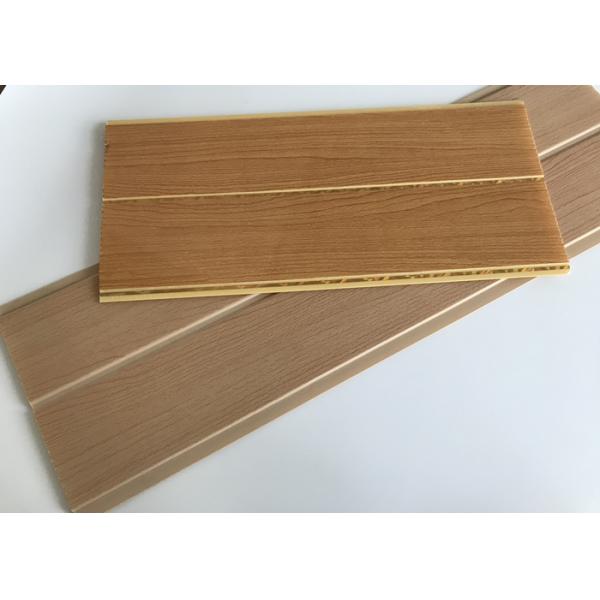

PVC Wood Panels Color Showing:

Middle Groove Printing PVC Wood Panels Easy to install wooden color PVC panels Surface Fire Retardant

Middle Groove Printing PVC Wood Panels Easy to install wooden color PVC panels Surface Fire Retardant
