Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Glass Lined Steel Rainwater Storage Tank For Water Conservation Storage
Specifications
Brand Name :
CEC TANKS
Model Number :
J2016012654
Certification :
ISO 9001:2008, AWWA D103 , OSHA , BSCI
Place of Origin :
China
MOQ :
1set
Price :
$5000~$20000 one set
Payment Terms :
L/C, T/T
Supply Ability :
60 sets per month
Delivery Time :
0-60 days after deposit received
Packaging Details :
PE poly-foam between each two steel plates ; wooden pallet and wooden box
Adhesion :
3,450N/cm
Elastic :
Same as steel sheet ,around 500KN /mm
Acid and alkalinity proof :
Standard sheet PH:3~11 Special sheet PH: 1~14
Service life :
≥30 years
Permeability :
Gas and liquid impermeable
material :
glass and steel
coating color :
can be customized
coating thickness :
0.25mm~0.40mm & Double coating
Description

Glass lined steel Rainwater storage Tank For Water Conservation Storage

Glass-lined steel Tanks are made of special steel plate, special sealant, self-locking bolt, and the service life more than 30 years. After pretreatment, the special steel plate is coated with two or three layers of enamel coating on both side. After the heat polymerization, a strong binding force is formed between the coating and the steel plate. The protective layer formed by the coating can not only prevent corrosion of the tank body, but also has the function of strong acid and alkali resistance and strong abrasion resistance. Glass lined steel rainwater tank are widely used for water conservation storage.

Glass lined steel Rainwater storage Tank Specifications

Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds

Glass lined steel Rainwater storage Tanks are the excellent option for wastewater treatment. They are widely used as drinking water tanks, industrial wastewater storage tank, anaerobic digester, leachate storage tank , agricultural water Storage tank, fire water tank, dry bulk storage tank , municipal sewage. And till now Center Enamel Glass-Fused-to-Steel tanks are already exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc., and products enjoy worldwide recognition due to superior quality and prompt service.

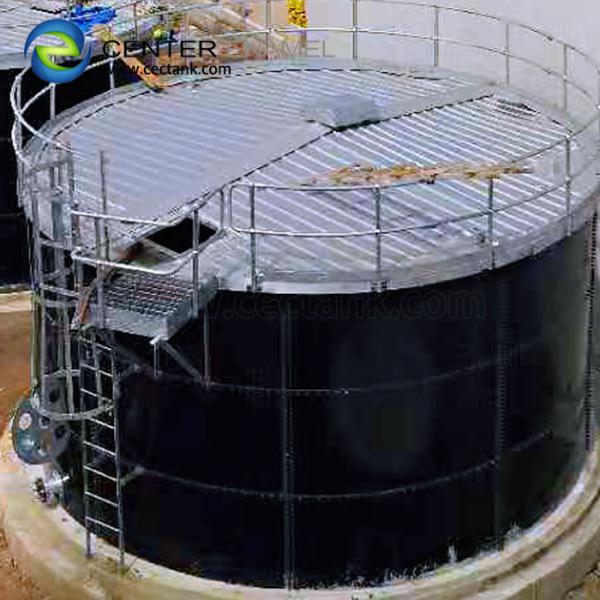

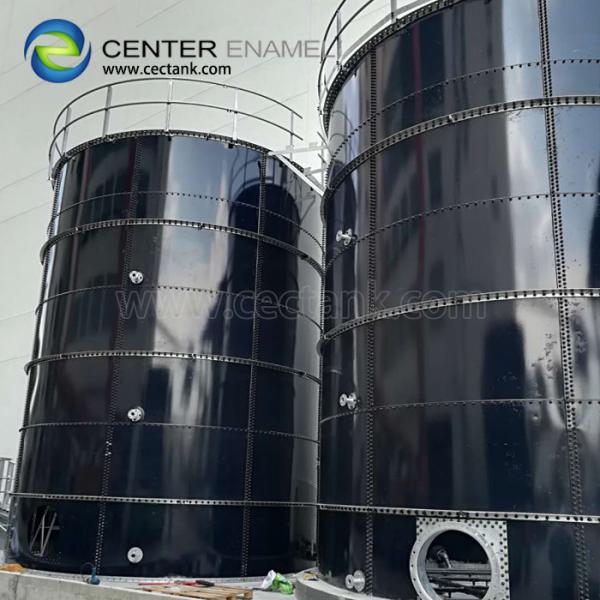

Glass lined steel Rainwater storage Tank Project References
