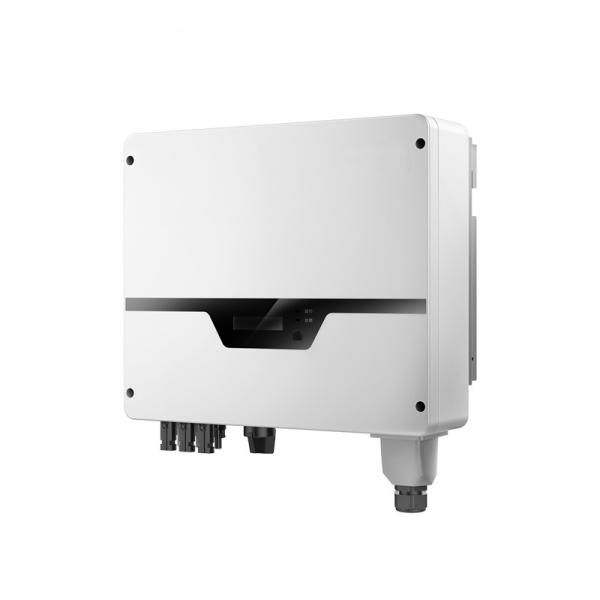

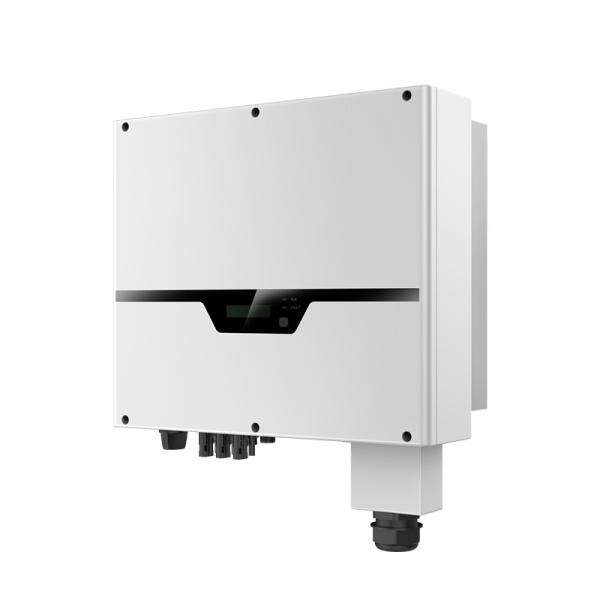

20KW solar inverter On Grid solar Inverter Price 30000W Grid Tie Inverter For solar power inverters solar price

Specifications

Place of Origin :

China

Brand Name :

CDS

Model Number :

R3 Pro Series

Input Voltage :

250~950V

Output Voltage :

380V/400V

Output Current :

32A-48A

Output Frequency :

50/60Hz

Output Type :

Triple

Type :

DC/AC Inverters

Inverter Efficiency :

99.9%

Certificate :

CE/IEC/VDE/EN

Warranty :

5/7/10 years

Weight :

38kg

Max. recommended PV Power :

26000Wp-42900Wp

Rated AC Power :

20000W-33000W

Start-up Voltage :

350V

Maximum DC Input Voltage :

1000V

Max. DC Input Current :

20A/30A

DC Switch :

Integrated

User Interface :

LCD

Communication :

RS485 or WIFI or GPRS

Temperature Range :

-25℃~60℃

Protection Grades :

IP65

Packaging Details :

Wooden case, cartons,container transport

Port :

Port of Shanghai

Supply Ability :

1000 Set/Sets per Month

Price :

$1,132.00 - $1,608.00/Pieces

Description

Uhome Lithium battery packUhome Lithium battery pack

Trade Assurance

Product Descriptions

Datesheet of products R3 Pro Series
Model	NAC20K-DT	NAC25K-DT		NAC30K-DT		NAC33K-DT
DC Input Data
Max. recommended PV Power	26000Wp	32500Wp		39000Wp		42900Wp
Maximum DC Input Voltage	1000V
MPPT Voltage Range	250~950V
Start-up Voltage	350V
No.of MPP Trackers	2
No.of Input Strings per Tracker	2/2		2/3		3/3		3/3
Max. DC Input Current	20A/20A		20A/30A		30A/30A		30A/30A
DC Switch	Integrated
AC Output Data
Rated AC Power	20000W	25000W		30000W		33000W
Max.Output Power	22000VA	27600VA		30000VA		33000VA
Max. Output Current	32A	40A		43A		48A
Rated AC Voltage/Range	3/PE 380,400;+/-10%;3/N/PE 380,400;+/-10%
Grid Frequency/Range	50Hz/60Hz; ±5Hz
Adjustable Power Factor[cos α]	0.8 leading~0.8lagging
Output THDi(@Rated Output)	<3%
Efficiency
Max. Efficiency	98.3%	98.4%		98.5%		98.5%
Euro Efficiency	98.0%	98.1%		98.2%		98.2%
Mppt Efficiency	99.9%	99.9%		99.9%		99.9%
Protection
DC Insulation Monitoring	Integrated
Input Reverse Polarity Protection	Integrated
Anti-island Protection	Integrated
Residual Current Monitoring	Integrated
Over-heat Protection	Integrated
AC Overcurrent	Integrated
