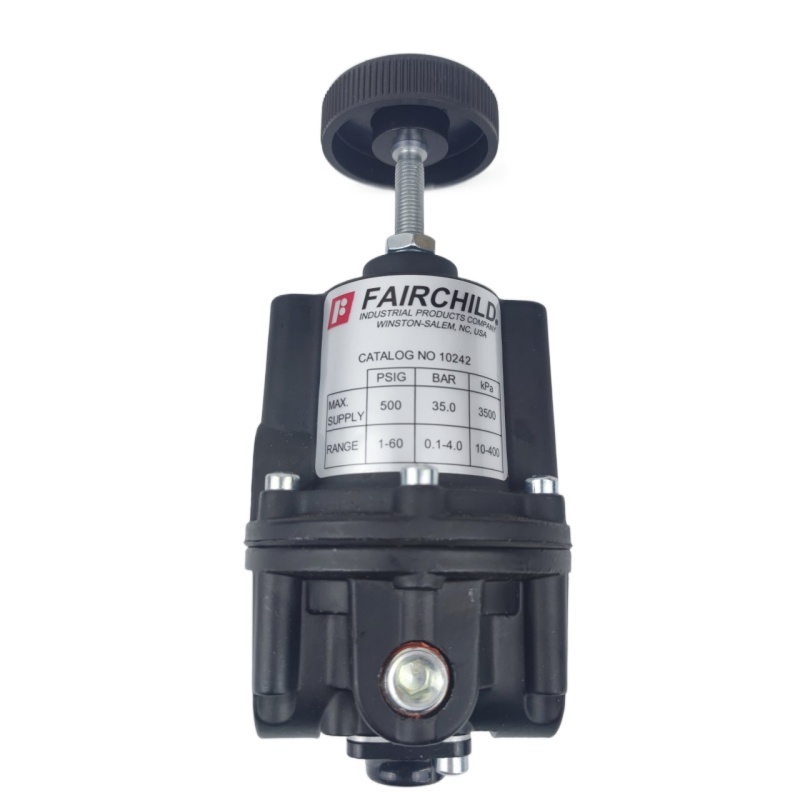

USA factory Fairchild 10242 Medium-low pressure High Precision filter pressure reducing regulator
USA factory Fairchild 10242 Medium-low pressure High Precision filter pressure reducing regulator
Specifications
Description

1. Description

The Model 10 is designed for applications that require high capacity and accurate process control. A supply valve which is balanced by utilizing a rolling diaphragm ensures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

2. Features

• Control sensitivity of 1/8" water column allows use in precision processes.

• Pressure-balanced supply valve prevents supply pressure changes from affecting the setpoint.

• Optional check valve permits Backflow of downstream pressure when the supply is opened to the atmosphere.

• Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing.

• An aspirator tube compensates for the downstream pressure droop under flow conditions.

• Canadian Registration Number (CRN) certification for all territories and provinces.

• NO Yellow Metals available for harsh media.

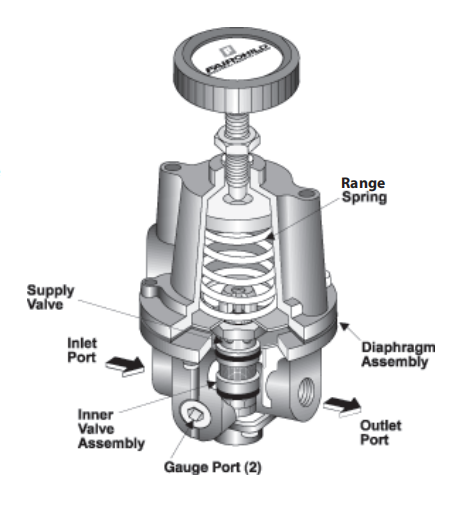

3. Structural diagram

USA factory Fairchild 10242 Medium-low pressure High Precision filter pressure reducing regulator

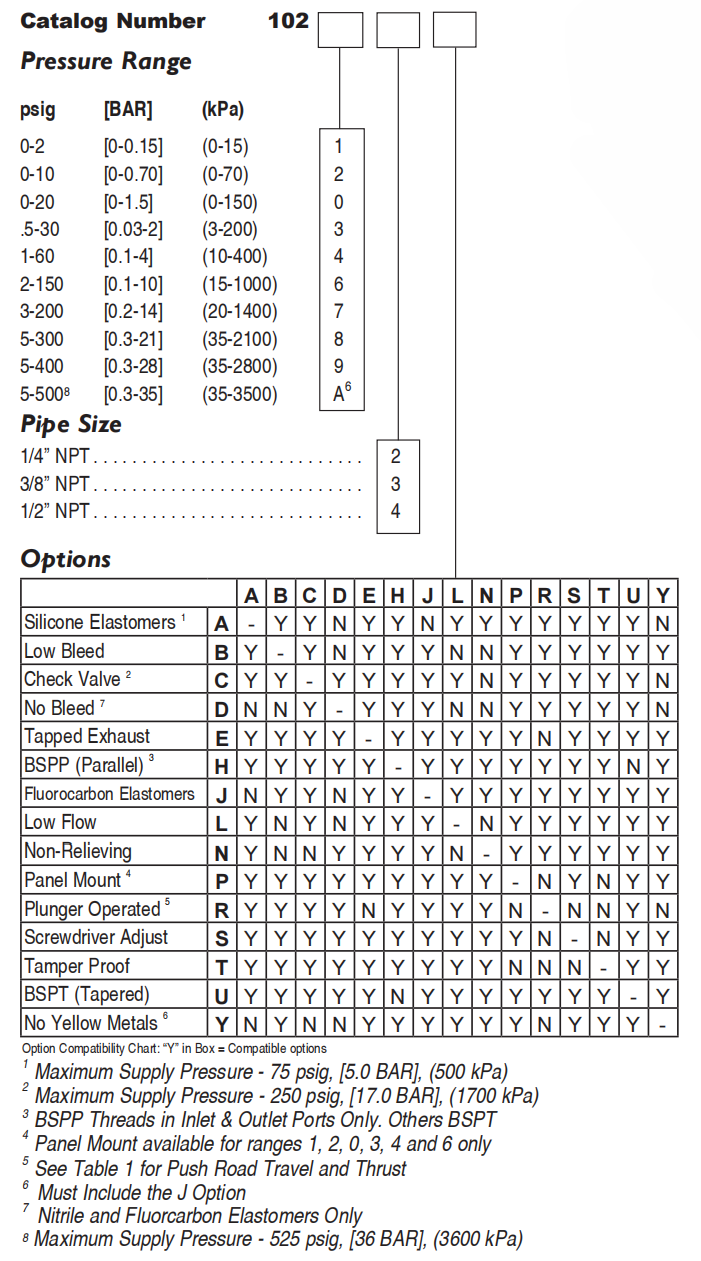

4. How to Order

USA factory Fairchild 10242 Medium-low pressure High Precision filter pressure reducing regulator
