Specifications
Description

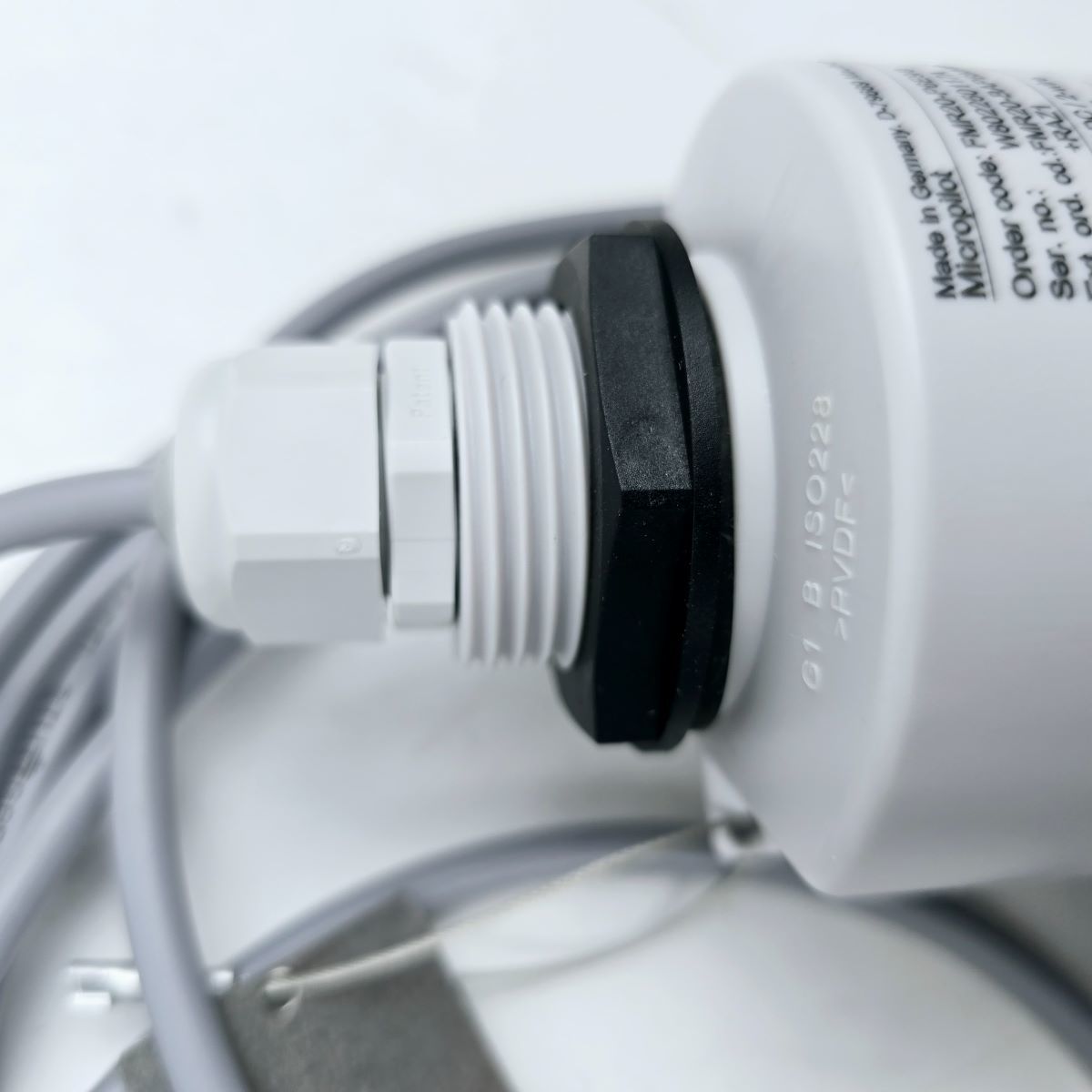

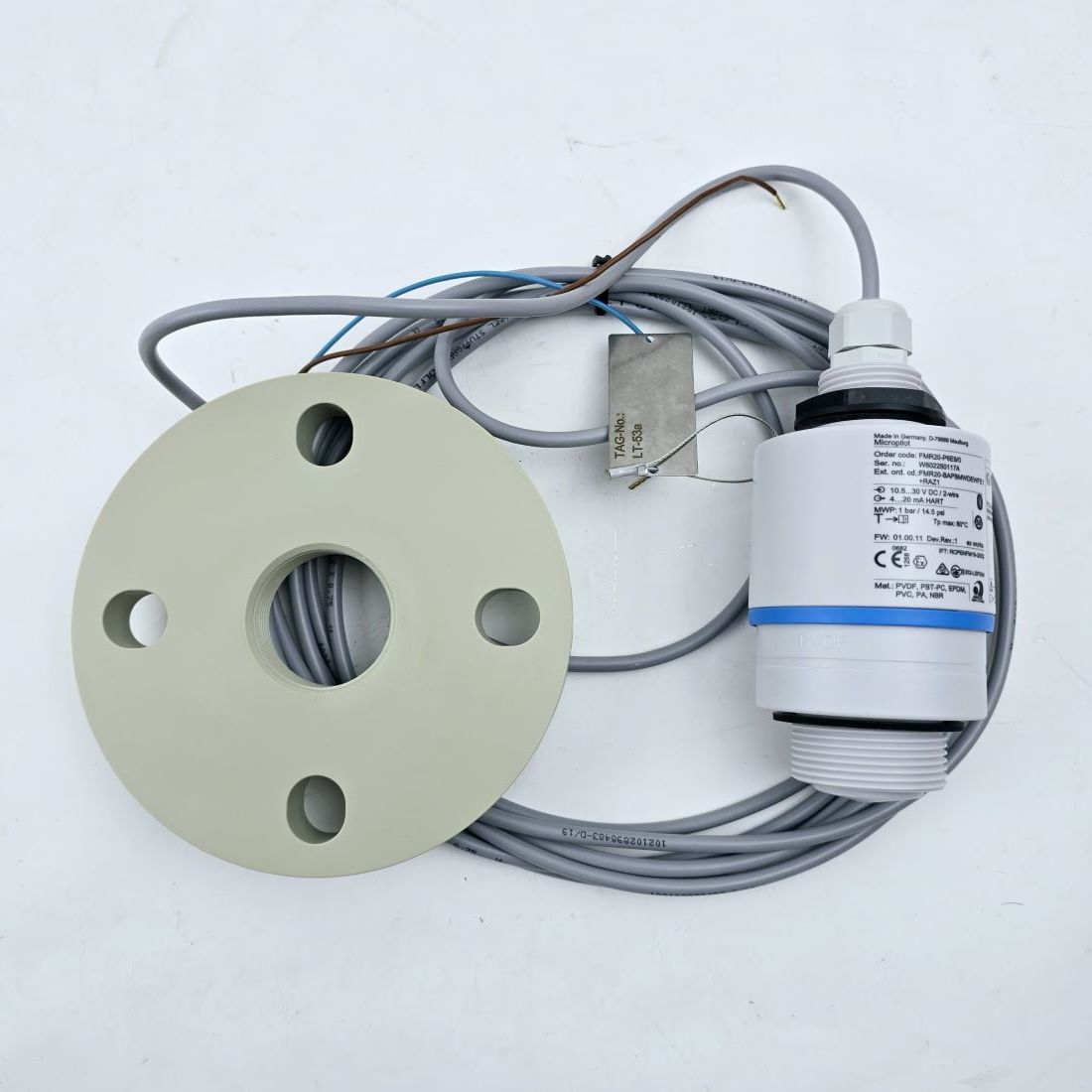

Radar measurement Time-of-Flight Micropilot FMR20

Micropilot FMR20 offers continuous non-contact level and flow (via linearization table) measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. Commissioning is possible via HART or wireless via app using Bluetooth® or with a remote display.
Signal curves can be shown via an app on every Bluetooth®-enabled smartphone/tablet (iOS, Android). With the compact design, thanks to a unique chip, the device is ideal for limited space applications.

Radar for continuous level measurement and flow measurement (with open channels or weirs, via a linearization table).

  • Process connections: Threads, flange versions
  • Process temperature: -40 to +80°C (-40 to +176°F)
  • Process pressure: -1 to +3bar (-14.5 to +43psi)
  • Max. measuring range: Liquids 20m (66ft), Solids 10m (33ft)
  • Accuracy: Liquids ±2mm (0.08"), Solids ±5mm (0.2")
  • Measuring frequency: 26GHz
  • International explosion protection certificates
