Masoneilan 08-80H original New Wholesale three-way Transfer Valves
Masoneilan 08-80H original New Wholesale three-way Transfer Valves
Masoneilan 08-80H original New Wholesale three-way Transfer Valves
Masoneilan 08-80H original New Wholesale three-way Transfer Valves
Specifications
Description

1. Description

The Model 78-80H is a transfer valve combining a pilot valve of the floating ball type and a three-port valve into one unit and is a high-capacity three-way transfer valve of a set pressure regulating type. The other model, 08-80H, is the same as the 78-80H except that a pilot valve is not combined and is the so-called three-way transfer valve. If several 78-80Hs are needed, one 78-80H can be installed, connecting 08-80Hs to it by mating the pilot outlet pressure (“SIG.OUT”) on the 78-80H to “SIG” on the 08-80H to simplify piping and achieve transfer.

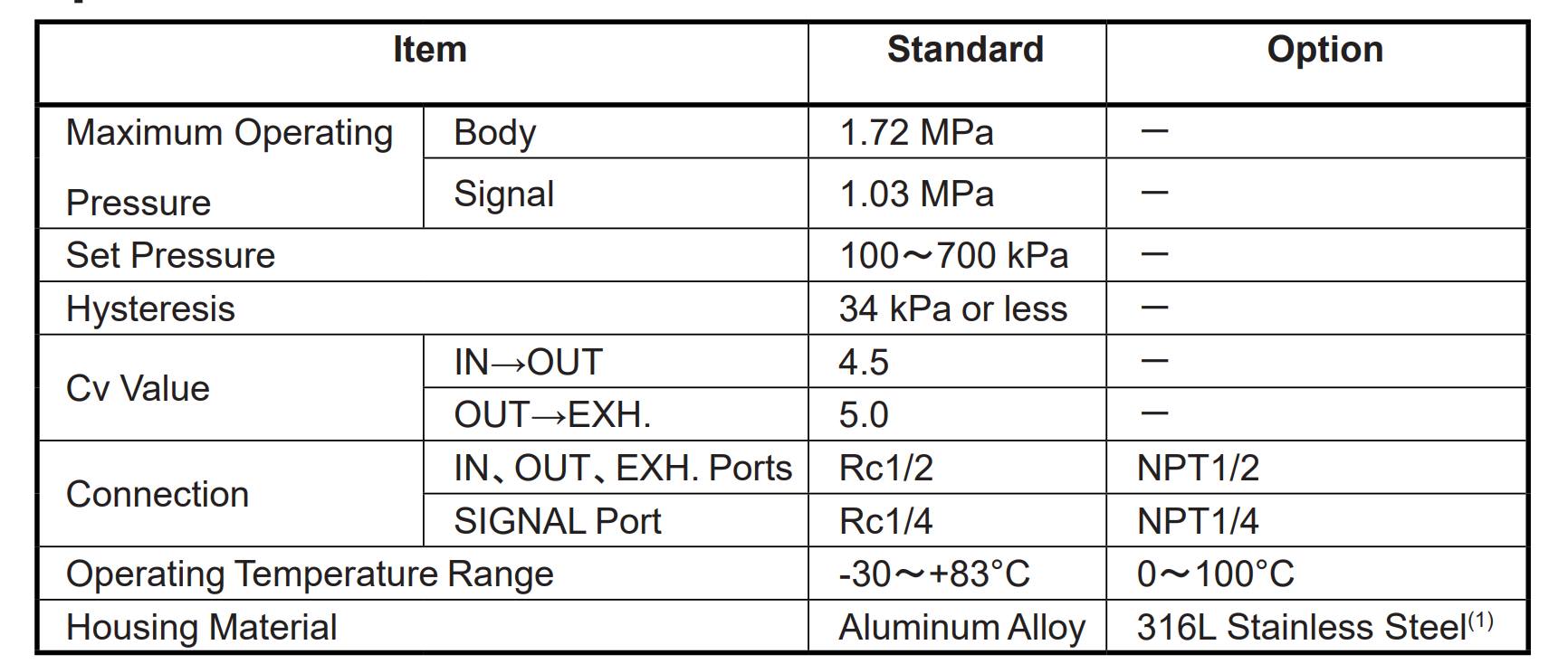

2. Specification

Masoneilan 08-80H original New Wholesale three-way Transfer Valves
