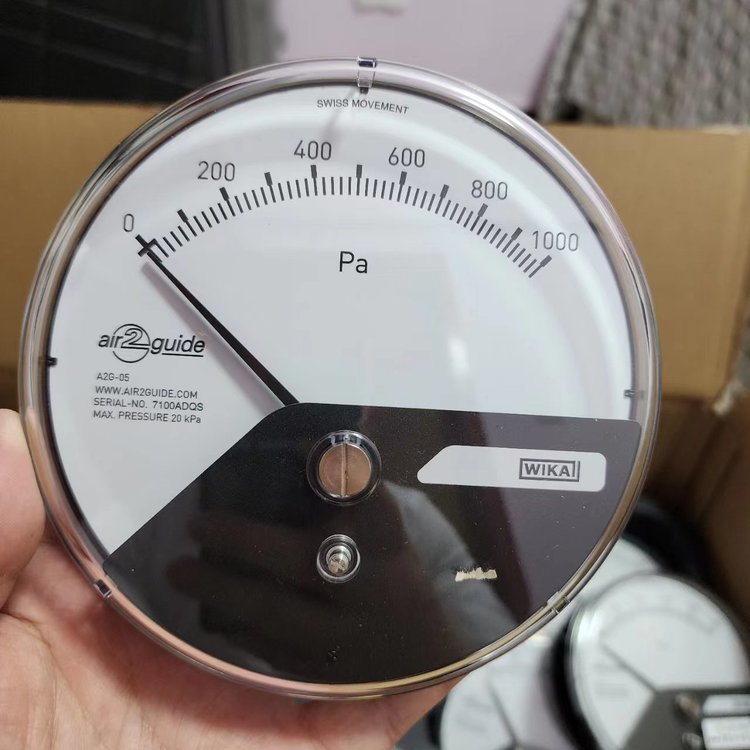

Wika A2G-05 Differential pressure gauge Eco Model
Wika A2G-05 Differential pressure gauge Eco Model
Specifications
Description

1. Description

The model A2G-05 Eco differential pressure gauge is used for monitoring the differential pressure in ventilation and air-conditioning applications. The measuring ranges cover from 0 … 100 Pa to 0 … 6,000 Pa. Plus/minus ranges can be fulfilled from -50 … +50 Pa to -1,500 … +1,500 Pa.

The separated construction of the measuring chamber and display area ensures that impurities from the process air do not settle on the back of the window.

The differential pressure gauge is available in IP54 and IP65 ingress protection as well as two different mounting versions

2. Features

  • Very small insertion depth
  • Simple and fast mounting via threaded bezel
  • Separated construction of the measuring chamber and the display area
  • Integrated sealing element for direct mounting in a ventilation duct
  • Individual design of dial and scale is possible

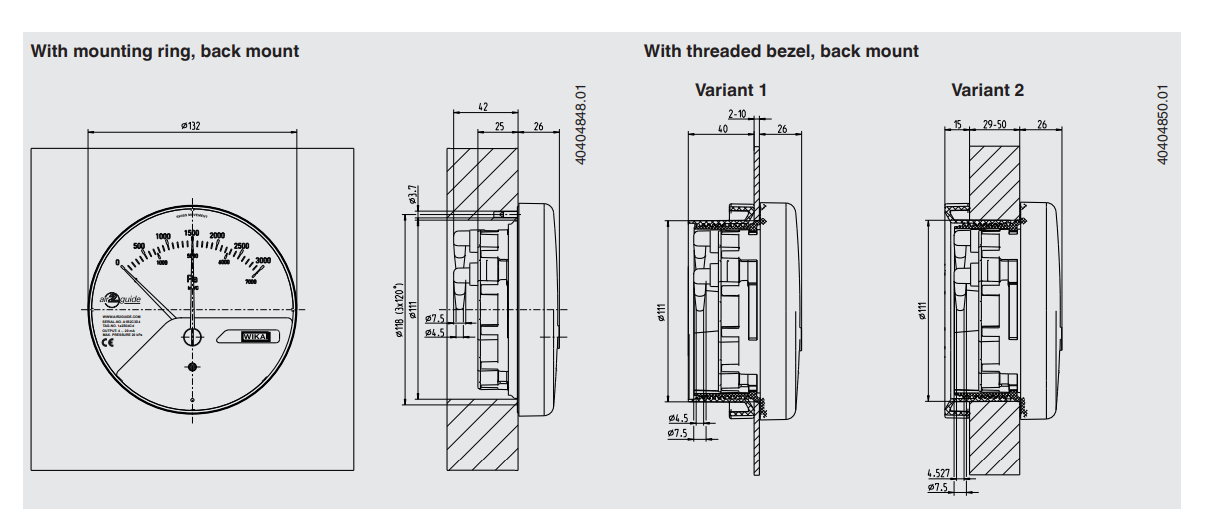

3. Dimensions in mm

Wika A2G-05 Differential pressure gauge Eco Model
