Specifications
Brand Name :
CDIM
Model Number :
C1 C2 C3 C4 C5
MOQ :
50pcs、100pcs
Price :
Based on technical specifications
Payment Terms :
T/T,L/C
Packaging Details :
Packed as seaworthy
Description
Key high-temperature component for cement preheater & calciner system, mainly used for gas-material separation, dust collection and flue gas guidance. The complete set includes inner cylinder body, brackets, hanging plates and connecting plates, forming a stable hanging support structure.

2. Core Specifications

  • Material: graded selection according to C1–C5 stages

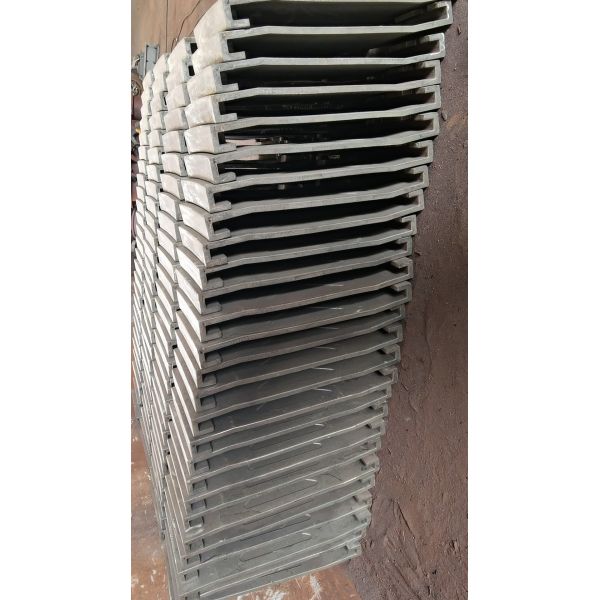

  • Structure: curved plates / flat plates / sub-gourd shape, with concave–convex interlocking grooves, hooks / brackets, and reinforcing ribs; assembled from multiple segments into a cylinder
  • Function: resistant to high temperatures (800–1050°C), abrasion, thermal shock, and oxidation; protects the inner cylinder framework
  • Application: Cement preheater cyclones, calciner systems, new dry process cement kilns

3. Key Parts

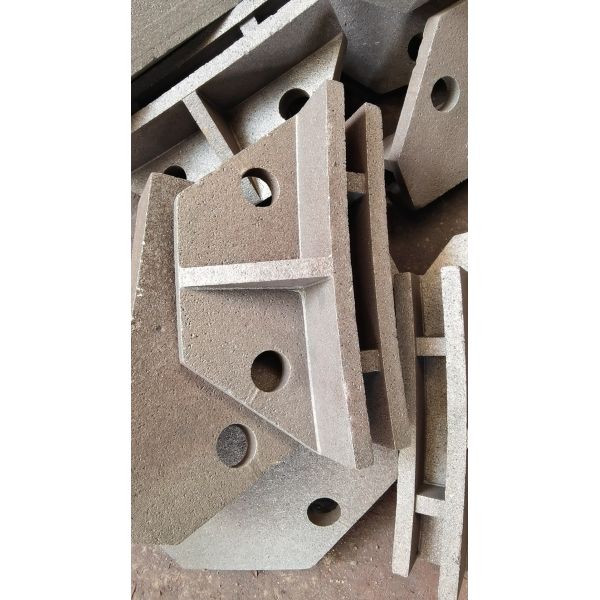

  • Brackets: Support and fix the inner cylinder, high temperature resistant and anti-deformation

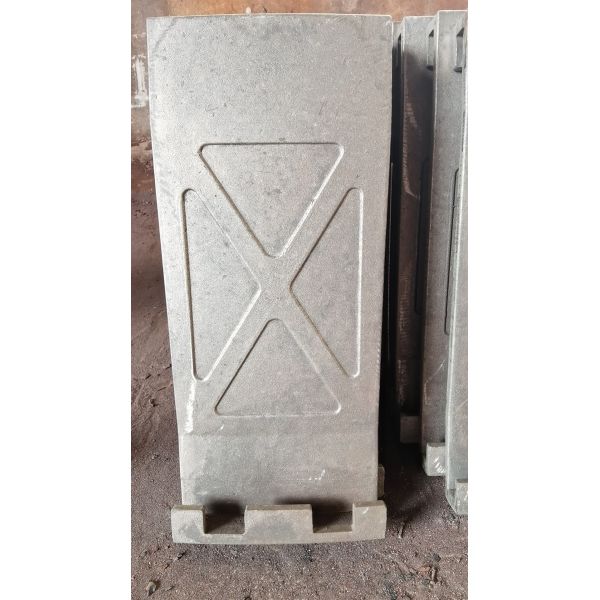

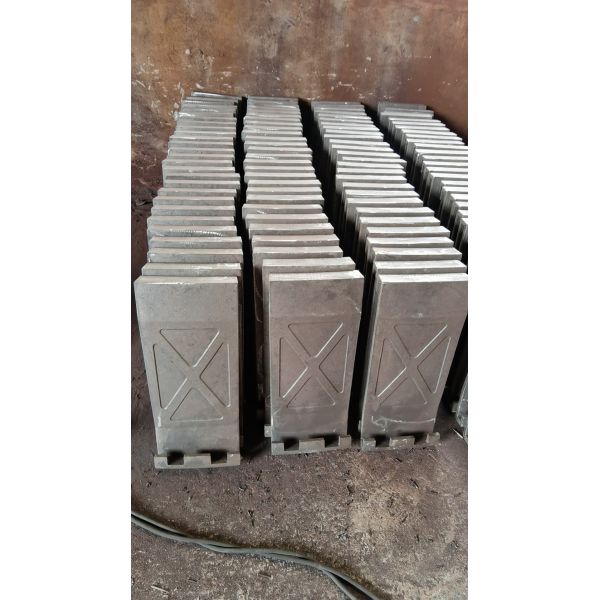

  • Hanging Plates/Panels: Used to hang the inner cylinder from the top structure, key high-temperature stress part

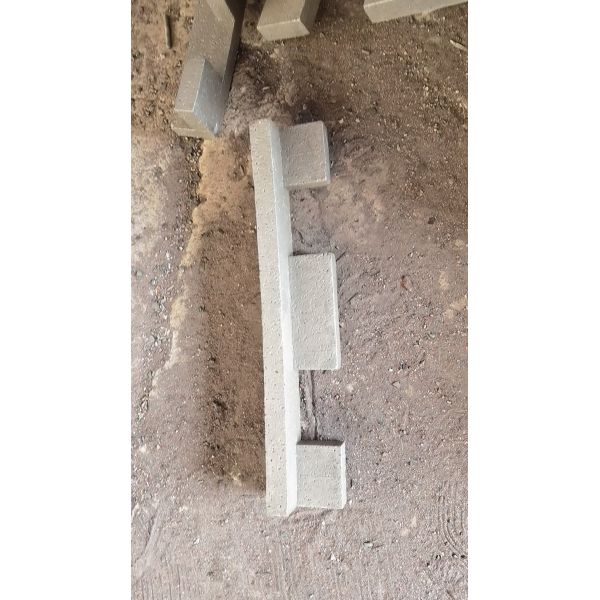

  • Connecting Plates: Connect inner cylinder segments, brackets and hanging parts, ensure overall rigidity

4. Product Advantages

  • Excellent high-temperature creep resistance and oxidation resistance
  • Strong abrasion and alkali corrosion resistance
  • Good thermal shock resistance, not easy to crack
  • Customizable according to drawings and preheater models
  • Suitable for C1–C5 stages; material and thickness can be customized according to operating conditions.
