Description

Rotary Kiln Tyre (also called Kiln Riding Ring) is a largediameter cast steel ring mounted on the rotary kiln shell.

It rests on the supporting rollers, carrying the full weight of the kiln shell, refractory lining, raw meal and internal equipment while the kiln is rotating.

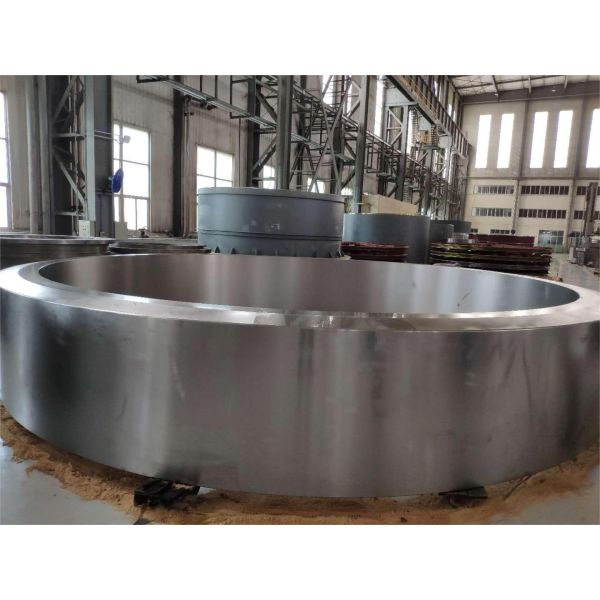

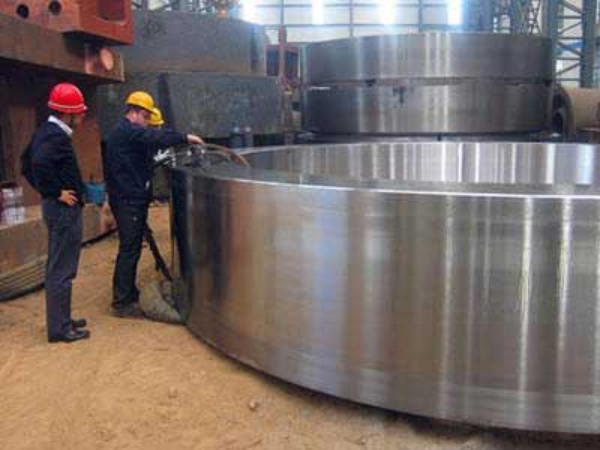

Rotary Kiln Tyre

The rotary kiln model applicable to the tire is: Φ7/6.4*95. The tire has a large diameter and is a one-piece circular forging.

The riding ring is applicable to the rotary kiln model: Φ7/6.4 * 95m.

The riding ring is a one-piece circular forging, manufactured in accordance with the dimensions and inclination angle specified in the user-confirmed drawings. The riding ring is supplied with a support bracket.

Support bracket dimensions: 8m × 2.5m × 0.5m (dimensions may be adjusted according to the user’s transportation vehicle).

Outer diameter of the riding ring: 7650mm

Inner diameter of the riding ring: 6800mm

Hardness of the riding ring: 180-220HB

Material: 35CrMo

Main Functions

· Support the entire weight of the rotary kiln

· Transmit the rotating load to the supporting rollers

· Maintain stable operation of the kiln body

· Strengthen the rigidity of the kiln shell

· Guide axial movement of the kiln

Material

· High-quality carbon steel

· Low-alloy cast steel

· High-strength alloy cast steel

· Features: high strength, good toughness, wear resistance, anti-fatigue

Structure Features

· Heavy-section annular casting

· Precise machined outer rolling surface

· Reasonable shrinkage fit with kiln shell

· High roundness and dimensional accuracy

· High temperature resistance and deformation resistance
