Atex Approval 2MP 36X Explosion-Proof Anti-Corrosion IR PTZ Analogue CCTV Camera
Atex Approval 2MP 36X Explosion-Proof Anti-Corrosion IR PTZ Analogue CCTV Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDY-EX-PTZ2036IRW01(A)
Certification :
ATEX/EN62676-1-1:2014
Place of Origin :
China
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Material :
Stainless Steel 316L or 304
Resolution :
1920(H)*1080(V)/1200TV Line/1920*1080p(AHD/CVI/TVI)
Lens Parameter :
Lens Zoom:36X 3.9~140.4mm;FNo:1.6~3.5
Power :
AC100V-240V
Dimensions(L*W*H) :
436*296*406mm
Net Weight :
≤26kg
Ingress Protection :
IP68
Infrared Distance :
100-150m
Description

Atex Approval 2MP 36X Explosion-Proof Anti-Corrosion IR PTZ Analogue CCTV Camera

Key Features

  • Resolution:up to 2MP(1920*1080),Output Full HD:1920*1080@30fps Live Image.
  • Privacy mask
  • Image mirror
  • Dynamic noise reduction
  • BLC,HLC,DSS
  • Fickerless sharpless
  • Temperature display

Application Scenarios

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Parameters

Mage Sensor 1/2.5"2MP CMOS NVP2441H+SONY322
Lens Parameter Lens Zoom:36X,3.9~140.4mm;FNo:1.6~3.5
Max.Resolution 1920(H)*1080(V)/1200TV ,Line/1920*1080p(AHD/CVI/TVI)
Frames per second 25/30 fps
Min.Illumination Color:0.01Lux@(F1.2,AGC ON),OLux with IR
Black &White:0.001Lux@(F1.2,AGC ON),OLux with IR
Output Format PAL/NTSC:1920(H)*1080(V)
Video output: 1.0Vp-p,75Ω
Focus Mode Bus control focus/Button control focus
Control connector Bys contol DC±3V~±12V
Denoise 2D/3D
Backlight compensation On/Off
Auto IRIS YES
AF mode Normal/Zoom Trigger/Interval
AWB mode Auto/Manual/outdoor/indoor
AE mode Auto/shutter priority/IRIS priority/manual
Electronic shutter 1/25s~1/10000s
IR cut mode Auto/day/night
Privacy Zone 24 Mask
OSD Title/Display
Protocol Sony,Pelco-D

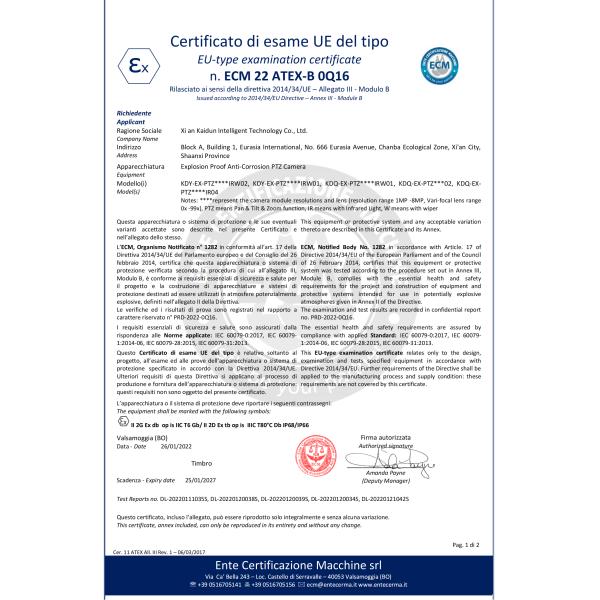

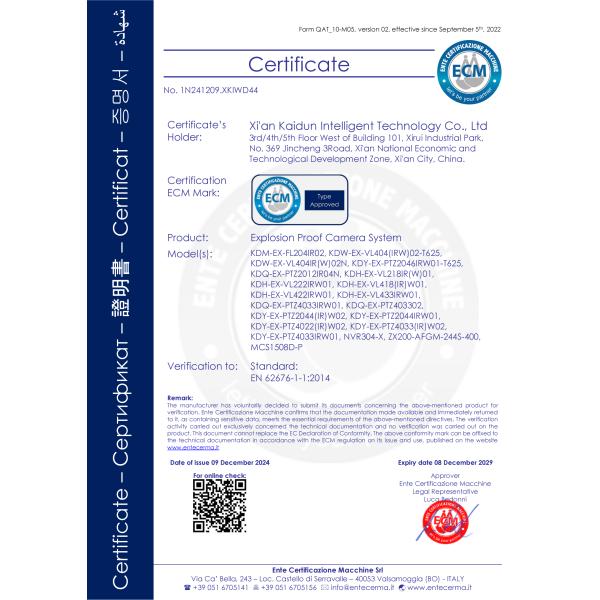

Certificate

Atex Approval 2MP 36X Explosion-Proof Anti-Corrosion IR PTZ Analogue CCTV Camera
Atex Approval 2MP 36X Explosion-Proof Anti-Corrosion IR PTZ Analogue CCTV Camera
